Description
Stay in the moment and create beyond your expectations with the WD Blue SN570 NVMe SSD. This powerful internal drive delivers up to 5X the speed of the best SATA SSDs so you can let your imagination flow and worry less about PC lag or load times.
-
Tune up your performance
Build your ideal creation engine. Upgrading your system or optimizing your next custom build with the slim M.2 2280 form factor. All you need is an NVMe slot. -
Stay in the moment
Keep your imagination flowing as you create faster while maintaining low power consumption. With read speeds up to 3,500 MB/s2, your system can run up to 5X faster than the best SATA SSDs so you can stay in your creative moment. -
A standard for reliability
That's why the WD Blue reliability features help protect your content so you can stress less about losing your brilliant work. -
Get extra peace of mind
Work with extra confidence and keep your projects on point as the downloadable Western Digital SSD Dashboard3 helps you monitor your drive's health, available space, temperature and more. -
Save on space
Pack a lot of performance into your small-form factor PC with a single-sided M.2 2280 PCIe Gen3 x4 NVMe SSD. -
Stay organized
Back up your photos, videos, and other personal files with included Acronis True Image for Western Digital software.
Specifications
Summary
- Product Description

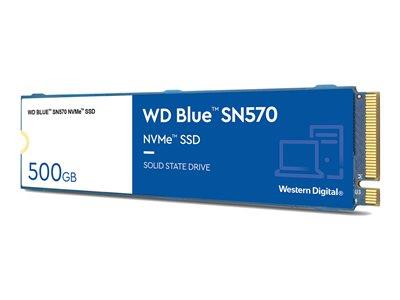

- WD Blue SN570 NVMe SSD WDS500G3B0C - SSD - 500 GB - PCIe 3.0 x4 (NVMe)
- Type
- Solid state drive - internal
- Capacity
- 500 GB
- NAND Flash Memory Type
- Triple-level cell (TLC)
- Form Factor
- M.2 2280
- Interface
- PCIe 3.0 x4 (NVMe)
- Dimensions (WxDxH)
- 22 mm x 80 mm x 2.38 mm
- Weight
- 6.5 g
- Manufacturer Warranty
- 5-year warranty
Detailed Specification
General
- Device Type
- Solid state drive - internal
- Capacity
- 500 GB
- NAND Flash Memory Type
- Triple-level cell (TLC)
- Form Factor
- M.2 2280
- Interface
- PCIe 3.0 x4 (NVMe)
- Width
- 22 mm
- Depth
- 80 mm
- Height
- 2.38 mm
- Weight
- 6.5 g
Performance
- SSD Endurance
- 300 TB
- Internal Data Rate
- 3500 MBps (read) / 2300 MBps (write)
- Maximum 4KB Random Write
- 390000 IOPS
- Maximum 4KB Random Read
- 360000 IOPS
Reliability
- MTBF
- 1,500,000 hours
Expansion & Connectivity
- Interfaces
- 1 x PCI Express 3.0 x4 (NVMe) - M.2 Card
- Compatible Bay
- M.2 2280
Power
- Power Consumption
- 90 mW (active) , 30 mW (low power active) , 5 mW (sleep) , 4 Watt (maximum)
Software & System Requirements
- Software Included
- Acronis True Image, Adobe Creative Cloud (1 month membership, limitations apply)
Miscellaneous
- Compliant Standards
- UL, TUV, VCCI, BSMI, FCC, KCC, RCM, Morocco, CAD ICES-3(B)/NMB3(B)
Dimensions & Weight (Shipping)
- Shipping Width
- 10.16 cm
- Shipping Depth
- 2.21 cm
- Shipping Height
- 12.7 cm
- Shipping Weight
- 57.9 g
Manufacturer Warranty
- Service & Support
- Limited warranty - 5 years
Environmental Parameters
- Min Operating Temperature
- 0 °C
- Max Operating Temperature
- 70 °C
- Min Storage Temperature
- -40 °C
- Max Storage Temperature
- 85 °C
- Shock Tolerance (operating)
- 1500 g @ 0.5 ms half-sine
- Vibration Tolerance (operating)
- 5 g @ 10-2000 Hz
- Vibration Tolerance (non-operating)
- 4.9 g @ 7-800 Hz
