Description
WD Blue 2.5-inch SATA and PATA hard drives offer solid-performance, ultra-quiet operation and low-power use for portable digital devices of all kinds. Pick the drive that suits your needs with the confidence in knowing that all WD Scorpio Blue drives are built to the highest standards of quality and reliability.
-
Massive capacity
Storage capacity for 2.5-inch form factor drives with standard 9.5 mm height has arrived at a realm once thought to be impossible - up to 1 TB - giving you all the capacity you need to keep your photos, music and files right there on your notebook. -
Low power consumption
State-of-the-art seeking algorithms optimize the way the drive seeks for data, which significantly improves power consumption. -
Ultra cool and quiet
In a notebook drive, silence is golden. WD's exclusive WhisperDrive technology delivers one of the quietest 2.5-inch hard drives on the market. -
Designed for various applications
WD Scorpio Blue has a portfolio of drives to satisfy all your portable computing needs. These drives are available in multiple z-heights including the 9.5 mm industry standard, 7 mm for use in thin notebooks and compatible with mainstream systems, and 12.5 mm primarily for external enclosures. -
Reliable
WD's SecurePark parks the recording heads off the disk surface during spin up, spin down, and when the drive is off. This ensures the recording head never touches the disk surface resulting in improved long term reliability due to less head wear, and improved nonoperational shock tolerance. -
Rugged
WD's ShockGuard technology protects the drive mechanics and platter surfaces from shocks.
Specifications
Summary
- Product Description

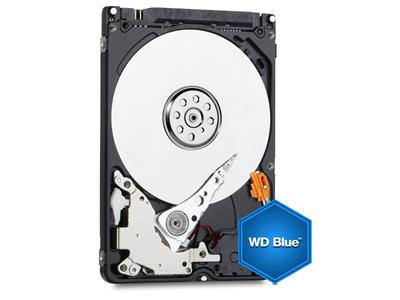

- WD Blue WD5000LPVT - hard drive - 500 GB - SATA 3Gb/s
- Type
- Hard drive - internal
- Capacity
- 500 GB
- Form Factor
- 2.5"
- Interface
- SATA 3Gb/s
- Data Transfer Rate
- 300 MBps
- Buffer Size
- 8 MB
- Spindle Speed
- 5400 rpm
- Features
- Shock Guard, WhisperDrive, SecurePark, Advanced Format technology
- Dimensions (WxDxH)
- 70 mm x 100 mm x 6.8 mm
- Weight
- 90 g
- Manufacturer Warranty
- 2-year warranty
Detailed Specification
General
- Device Type
- Hard drive - internal
- Capacity
- 500 GB
- Form Factor
- 2.5"
- Interface
- SATA 3Gb/s
- Buffer Size
- 8 MB
- Features
- Shock Guard, WhisperDrive, SecurePark, Advanced Format technology
- Width
- 70 mm
- Depth
- 100 mm
- Height
- 6.8 mm
- Weight
- 90 g
Performance
- Drive Transfer Rate
- 300 MBps (external)
- Internal Data Rate
- 147 MBps
- Average Latency
- 5.5 ms
- Spindle Speed
- 5400 rpm
Reliability
- Non-Recoverable Errors
- 1 per 10^14
- Start / Stop Cycles
- 600,000
Expansion & Connectivity
- Interfaces
- 1 x SATA 3 Gb/s - 7 pin Serial ATA
- Compatible Bay
- 2.5"
Miscellaneous
- Compliant Standards
- RoHS
Manufacturer Warranty
- Service & Support
- Limited warranty - 2 years
Environmental Parameters
- Min Operating Temperature
- 0 °C
- Max Operating Temperature
- 60 °C
- Shock Tolerance
- 400 g @ 2ms (operating) / 1000 g @ 2ms (non-operating)
