Description
HGST extends its technology leadership with the introduction of the Ultrastar SN260 solid-state drive (SSD). The Ultrastar SN260 SSD delivers a new level of performance and capacity for enterprise, cloud and hyperscale environments. Enabling faster intelligence in the expanding digital demands of business applications the Ultrastar SN260 SSD is a reliable resource for fast access to critical data. The HGST Ultrastar SN260 SSD doubles the speed of the previous generation within the same power envelope.
-
Ultra-low latency and high quality of service (QoS)
To meet Tier 1 enterprise service level agreements (SLAs), data center managers need high QoS from their storage infrastructure. Ultrastar DC SN200 delivers a 30% improvement over its predecessor providing consistent low latency as the device reaches its highest levels of throughput. The combination of high throughput performance and predictable low latency delivers extreme performance for today's data intensive applications. -
Enterprise storage experience in dual port
Ultrastar SSDs leverage decades of enterprise storage design expertise in high performance and high reliability to deliver this dual-port NVMe SSD 2.5-inch drive. The dual-port feature supports two redundant paths to an SSD, ensuring access to data in the event of a failure in the data path.
Specifications
Summary
- Product Description

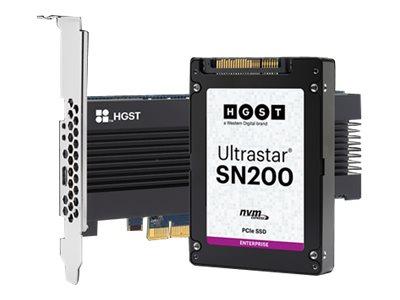

- WD Ultrastar SN200 HUSMR7676BHP3Y1 - SSD - 7.68 TB - PCIe 3.0 x8 (NVMe)
- Type
- Solid state drive - internal
- Capacity
- 7.68 TB
- Form Factor
- PCIe card (HHHL)
- Interface
- PCIe 3.0 x8 (NVMe)
- Features
- Secure Erase function, PowerSave technology, End-to-end data path protection, flash-aware RAID
- Dimensions (WxDxH)
- 14.49 mm x 167.65 mm x 68.9 mm
- Weight
- 229 g
- Manufacturer Warranty
- 5-year warranty
Detailed Specification
General
- Device Type
- Solid state drive - internal
- Capacity
- 7.68 TB
- Form Factor
- PCIe card (HHHL)
- Interface
- PCIe 3.0 x8 (NVMe)
- Features
- Secure Erase function, PowerSave technology, End-to-end data path protection, flash-aware RAID
- Width
- 14.49 mm
- Depth
- 167.65 mm
- Height
- 68.9 mm
- Weight
- 229 g
Performance
- Drive Writes Per Day (DWPD)
- 1
- Internal Data Rate
- 6170 MBps (read) / 2200 MBps (write)
- Maximum 4KB Random Write
- 75000 IOPS
- Maximum 4KB Random Read
- 1200000 IOPS
- Average Latency
- 20 µs
Reliability
- MTBF
- 2,000,000 hours
- Non-Recoverable Errors
- 1 per 10^17
Expansion & Connectivity
- Interfaces
- 1 x PCI Express 3.0 x8 (NVMe)
- Compatible Bay
- PCIe card (HHHL)
Power
- Power Consumption
- 25 Watt (typical) , 9 Watt (idle)
Miscellaneous
- Compliant Standards
- UL, TUV, VCCI, BSMI, KCC, ICES, EMI, RCM, RoHS 2011/65/EU
Manufacturer Warranty
- Service & Support
- Limited warranty - 5 years
Environmental Parameters
- Min Operating Temperature
- 0 °C
- Max Operating Temperature
- 55 °C
