Description

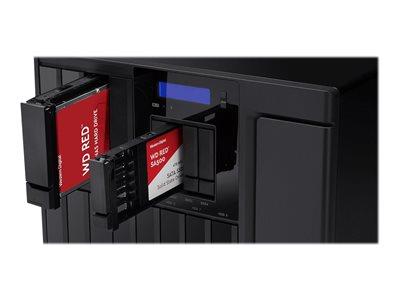

A SATA III Internal SSD is Ideal for Any NAS Array
The WD Red™ SA500 NAS SATA SSD is an ideal choice for NAS arrays that operate in an always-on, 24/7 environment. Specifically designed and tested for the harsh conditions of a NAS array, WD Red SSDs feature advanced caching to handle even the most demanding applications.
Fast, Reliable SATA III Storage
A WD Red™ SA500 NAS SATA SSD can enhance your NAS’s response time. Efficient caching of big files makes the WD Red SSD ideal for OLTP databases, multi-user environments, photo rendering, 4k and 8k video editing and more.
Blazing-Fast File Access
WD Red SSDs are optimized for fast file access and can cache your most frequently used data for even faster access.
The Endurance of SSD
Because WD Red SSDs have no moving parts, there’s less to wear out over time – heat and vibration are reduced as well.
Work Faster and Save Time
Western Digital® 3D NAND, the WD Red™ SSD delivers outstanding SATA III performance to accelerate your productivity and save you time.
Intense Apps are No Problem
HD Video, 4K and 8K formats require a fast drive that reduces latency for hassle-free editing and transfer of huge multimedia files.
Specifications
Summary
- Product Description
- WD Red SA500 WDS200T1R0B - SSD - 2 TB - SATA 6Gb/s
- Type
- Solid state drive - internal
- Capacity
- 2 TB
- Form Factor
- M.2 2280
- Interface
- SATA 6Gb/s
- Data Transfer Rate
- 600 MBps
- Features
- 24x7 continuous operation, 3D NAND Technology
- Dimensions (WxDxH)
- 22 mm x 80 mm x 2.38 mm
- Weight
- 7 g
- Manufacturer Warranty
- 5-year warranty
Detailed Specification
General
- Device Type
- Solid state drive - internal
- Capacity
- 2 TB
- Form Factor
- M.2 2280
- Interface
- SATA 6Gb/s
- Features
- 24x7 continuous operation, 3D NAND Technology
- Width
- 22 mm
- Depth
- 80 mm
- Height
- 2.38 mm
- Weight
- 7 g
Performance
- SSD Endurance
- 1300 TB
- Drive Transfer Rate
- 600 MBps (external)
- Internal Data Rate
- 560 MBps (read) / 530 MBps (write)
- 4KB Random Read
- 95000 IOPS
- 4KB Random Write
- 85000 IOPS
Reliability
- MTBF
- 2,000,000 hours
- 24x7 Operation
- Yes
Expansion & Connectivity
- Interfaces
- 1 x SATA 6 Gb/s - M.2 Card
- Compatible Bay
- M.2 2280
Power
- Power Consumption
- 60 mW (active) , 3000 mW (read) , 3800 mW (write) , 56 mW (sleep) , 12 mW (DevSleep)
Miscellaneous
- Compliant Standards
- UL, TUV, VCCI, BSMI, FCC, KC, Morocco
Manufacturer Warranty
- Service & Support
- Limited warranty - 5 years
Environmental Parameters
- Min Operating Temperature
- 0 °C
- Max Operating Temperature
- 70 °C
- Min Storage Temperature
- -55 °C
- Max Storage Temperature
- 85 °C
- Shock Tolerance (non-operating)
- 1500 g @ 0.5 ms half-sine
- Vibration Tolerance (operating)
- 5 g @ 10-2000 Hz
- Vibration Tolerance (non-operating)
- 4.9 g @ 7-800 Hz
