Description

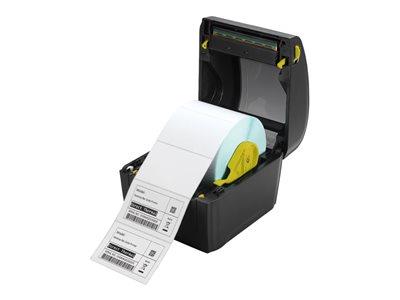

The Wasp WPL206 desktop barcode printer has the perfect balance between price, performance and durability. It features a double wall clamshell design, direct thermal printing, 5 inches per second printing speed at a 203 DPI resolution and plenty of memory: 64 MB Flash memory and 128 MB SDRAM to produce high quality printed labels, even at its fastest print speeds.
The Wasp WPL206 desktop barcode direct thermal printer is ideal for healthcare, retail, warehouse and logistics, entertainment and hospitality environments.
Specifications
Summary
- Product Description
- Wasp WPL206 - label printer - B/W - direct thermal
- Printer Type
- Label printer - direct thermal - B/W
- Weight
- 1.3 kg
- Max Media Size
- Roll (11.4 cm)
- Max Media Size (Custom)
- 114 mm
- Print Speed
- Up to 127 mm/sec
- Max Resolution (B&W)
- 203 dpi
- Interface
- USB 2.0
- RAM Installed (Max)
- 64 MB SDRAM
- Flash Memory Installed (Max)
- 128 MB
- Language Simulation
- ZPL, ZPL II, EPL, WPL
- Barcodes
- Code 93, Code 39, GS1 DataBar, QR code, MaxiCode, Aztec code, UPC-A, UPC-E, MicroPDF417, Codabar, Code 11, Interleaved 2 of 5, Postnet, PDF417, Data Matrix, China Post, Plessey, Code 128B, Code 128C, Code 128A, EAN-128, EAN-8, EAN-13, MSI, RSS
- Media Type
- Labels, continuous forms, fanfold paper
- Features
- Black Mark sensor, gap sensor, open head sensor
- Total Media Capacity
- 1 roll
- Manufacturer Warranty
- 2-year warranty
- Dimensions (WxDxH)
- 17.2 cm x 19.5 cm x 16.5 cm
Detailed Specification
General
- Printer Type
- Label printer - direct thermal - monochrome
Printer
- Print Speed
- Up to 127 mm/sec - 203 dpi
- Connectivity Technology
- Wired
- Interface
- USB 2.0
- Max Resolution (B&W)
- 203 dpi
- Language Simulation
- ZPL, ZPL II, EPL, WPL
- Features
- Black Mark sensor, gap sensor, open head sensor
- Barcodes
- Code 93, Code 39, GS1 DataBar, QR code, MaxiCode, Aztec code, UPC-A, UPC-E, MicroPDF417, Codabar, Code 11, Interleaved 2 of 5, Postnet, PDF417, Data Matrix, China Post, Plessey, Code 128B, Code 128C, Code 128A, EAN-128, EAN-8, EAN-13, MSI, RSS
RAM
- RAM Installed (Max)
- 64 MB
- Technology / Form Factor
- SDRAM
Flash Memory
- Flash Memory
- 128 MB
Media Handling
- Media Type
- Labels, continuous forms, fanfold paper
- Max Media Size
- Roll (11.4 cm)
- Max Media Size (Custom)
- 114 mm
- Media Sizes
- Roll (11.4 cm)
- Max Printing Width
- 108 mm
- Max Printing Length
- 2286 mm
- Media Thickness Range
- 0.055 mm - 0.19 mm
- Roll Core Diameter
- 25.4 mm, 38 mm
- Total Media Capacity
- 1 roll
- Media Feeders
- 1 x manual - 1 roll - Roll (11.4 cm)
Expansion / Connectivity
- Connections
- 1 x USB 2.0
Miscellaneous
- Cables Included
- 1 x USB cable
- Compliant Standards
- FCC Class A certified, CB, CCC, RoHS, WEEE, C-Tick Class A
Power
- Power Device
- Power adapter - external
- Frequency Required
- 50/60 Hz
Software / System Requirements
- Software Included
- Drivers & Utilities
Environmental Standards
- ENERGY STAR
- Yes
Manufacturer Warranty
- Service & Support
- Limited warranty - 2 years
Environmental Parameters
- Min Operating Temperature
- 5 °C
- Max Operating Temperature
- 40 °C
- Humidity Range Operating
- 25 - 85% (non-condensing)
Dimensions & Weight
- Width
- 17.2 cm
- Depth
- 19.5 cm
- Height
- 16.5 cm
- Weight
- 1.3 kg
