Description

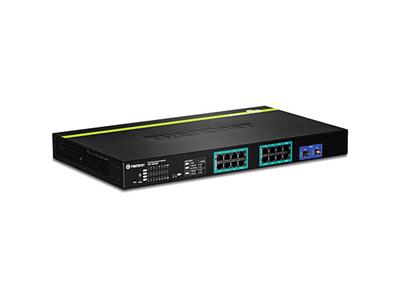

TRENDnet's 16-Port Gigabit Web Smart PoE+ Switch, model TPE-1620WS, delivers a 32 Gbps switching capacity with 16 PoE+ Gigabit ports and two shared SFP slots. This IPv6 ready switch offers advanced traffic management, troubleshooting, security, energy saving GREENnet, and monitoring features at a reduced cost.
-
Hardware design
Rack mountable housing features 16 Gigabit PoE+ ports (automatically supplies PoE+ (30 Watts) and PoE (15 Watts)) and two shared SFP slots. -
IPv6 Ready
This switch supports IPv6 configuration and neighbor IPv6 network support. -
Traffic management
A broad range of network configurations are support by: 802.3ad link aggregation, Asymmetric VLAN, 802.1Q VLAN, Voice VLAN, GVRP, 802.1p Class of Service (CoS), and QoS queue scheduling. -
Troubleshooting
Real time traffic comparison charts, error group charts, and a convenient cable diagnostic test aides in rapid troubleshooting. -
Security
Features such as ACL, SSL, MAC/port filtering, 802.1X, TACACS+, and RADIUS are compatible with layered security controls. -
Energy Savings
Up to 70% energy saving GREENnet technology.
Specifications
Summary
- Product Description
- TRENDnet TPE 1620WS 16-Port Gigabit Web Smart PoE+ Switch - switch - 16 ports - Managed - rack-mountable - TAA Compliant
- Device Type
- Switch - 16 ports - Managed
- Enclosure Type
- Rack-mountable 1U
- Subtype
- Gigabit Ethernet
- Ports
- 16 x 10/100/1000 (PoE+) + 2 x shared Gigabit SFP
- Power Over Ethernet (PoE)
- PoE+
- PoE Budget
- 185 W
- Performance
- Switching capacity: 32 Gbps , Forwarding performance: 23.8 Mpps
- MAC Address Table Size
- 16K entries
- Jumbo Frame Support
- 10KB
- Routing Protocol
- IGMPv2, IGMP, IGMPv3, static IPv6 routing
- Remote Management Protocol
- SNMP 1, RMON 1, SNMP 3, SNMP 2c, HTTP, HTTPS
- Features
- DHCP support, VLAN support, port mirroring, Weighted Round Robin (WRR) queuing, MAC address filtering, IPv6 support, GREENnet technology, Spanning Tree Protocol (STP) support, Rapid Spanning Tree Protocol (RSTP) support, Multiple Spanning Tree Protocol (MSTP) support, DHCP snooping, Access Control List (ACL) support, Jumbo Frames support, reset button, bandwidth control, LLDP support, Link Aggregation Control Protocol (LACP), Management Information Base (MIB), Dynamic VLAN Support (GVRP), Network Access Control (NAC), Strict Priority Queuing (SPQ), Neighbor Discovery Protocol (NDP), Class of Service (CoS), tagged VLAN, Loopback, Denial of Service (DoS), Duplicated Address Detection
- Compliant Standards
- IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.1ab (LLDP), IEEE 802.3at, IEEE 802.3az
- Power
- AC 120/230 V (50/60 Hz)
- Dimensions (WxDxH)
- 44 cm x 25.1 cm x 4.445 cm
- Weight
- 3.6 kg
- System Requirements
- Microsoft Windows Vista (32/64 bits), Microsoft Windows 7 (32/64 bits), Microsoft Windows XP (32/64 bits), Microsoft Windows Server 2008 (32/64-bits), Microsoft Windows Server 2003 (32/64-bits), Windows 8 (32/64 bits)
- TAA Compliant
- Yes
- Manufacturer Warranty
- Limited lifetime warranty
Detailed Specification
General
- Device Type
- Switch - 16 ports - Managed
- Enclosure Type
- Desktop, rack-mountable 1U
- Subtype
- Gigabit Ethernet
- Ports
- 16 x 10/100/1000 (PoE+) + 2 x shared Gigabit SFP
- Power Over Ethernet (PoE)
- PoE+
- PoE Budget
- 185 W
- Performance
- Switching capacity: 32 Gbps , Forwarding performance: 23.8 Mpps
- MAC Address Table Size
- 16K entries
- Jumbo Frame Support
- 10KB
- Routing Protocol
- IGMPv2, IGMP, IGMPv3, static IPv6 routing
- Remote Management Protocol
- SNMP 1, RMON 1, SNMP 3, SNMP 2c, HTTP, HTTPS
- Encryption Algorithm
- TLS, SSL 3.0, SSL 2.0
- Authentication Method
- RADIUS, TACACS+
- Features
- DHCP support, VLAN support, port mirroring, Weighted Round Robin (WRR) queuing, MAC address filtering, IPv6 support, GREENnet technology, Spanning Tree Protocol (STP) support, Rapid Spanning Tree Protocol (RSTP) support, Multiple Spanning Tree Protocol (MSTP) support, DHCP snooping, Access Control List (ACL) support, Jumbo Frames support, reset button, bandwidth control, LLDP support, Link Aggregation Control Protocol (LACP), Management Information Base (MIB), Dynamic VLAN Support (GVRP), Network Access Control (NAC), Strict Priority Queuing (SPQ), Neighbor Discovery Protocol (NDP), Class of Service (CoS), tagged VLAN, Loopback, Denial of Service (DoS), Duplicated Address Detection
- Compliant Standards
- IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.1ab (LLDP), IEEE 802.3at, IEEE 802.3az
- Flash Memory
- 8 MB
Expansion / Connectivity
- Interfaces
- 16 x 1000Base-T RJ-45 PoE+ - 30 W , 2 x SFP
Power
- Power Device
- Internal power supply
- Voltage Required
- AC 120/230 V (50/60 Hz)
- Power Consumption Operational
- 198 Watt
Miscellaneous
- Rack Mounting Kit
- Included
- Compliant Standards
- FCC, RoHS, WEEE
- TAA Compliant
- Yes
Software / System Requirements
- Software Included
- Drivers & Utilities
- OS Required
- Microsoft Windows Vista (32/64 bits), Microsoft Windows 7 (32/64 bits), Microsoft Windows XP (32/64 bits), Microsoft Windows Server 2008 (32/64-bits), Microsoft Windows Server 2003 (32/64-bits), Windows 8 (32/64 bits)
Dimensions & Weight
- Width
- 44 cm
- Depth
- 25.1 cm
- Height
- 4.445 cm
- Weight
- 3.6 kg
Manufacturer Warranty
- Service & Support
- Limited warranty - lifetime
Environmental Parameters
- Min Operating Temperature
- 0 °C
- Max Operating Temperature
- 45 °C
- Humidity Range Operating
- 0 - 90% (non-condensing)
