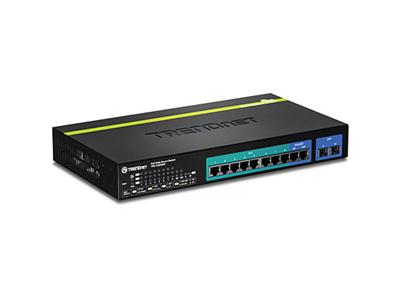

TRENDnet TPE-1020WS 10-Port Gigabit Web Smart PoE+ Switch

Review this product
Quicklinx: 9QT3WS00 Mfr#: TPE-1020WS
Type: Gigabit Ethernet
Ports: 10
Data Transfer Rate: 1Gbps
Managed: Yes
Stock Status: In Stock
  • Windows 8 (32/64 bits)
Less than 10 in stock
£182.97 ex VAT
£219.56 inc VAT
Qty
Standard delivery Delivered within 3 working days

Description

TRENDnet's 10-Port Gigabit Web Smart PoE+ Switch, model TPE-1020WS, delivers a 20 Gbps switching capacity with eight PoE+ gigabit ports and two Gigabit Ethernet uplink ports shared with two SFP slots. This IPv6 ready switch offers advanced traffic management, troubleshooting, security, energy saving GREENnet, and monitoring features at a reduced cost.

Specifications

Summary

Product Description
TRENDnet TPE 1020WS 10-Port Gigabit Web Smart PoE+ Switch - switch - 10 ports - Managed - desktop, rack-mountable
Device Type
Switch - 10 ports - Managed
Enclosure Type
Desktop, rack-mountable 1U
Subtype
Gigabit Ethernet
Ports
8 x 10/100/1000 (PoE+) + 2 x 10/100/1000 + 2 x shared Gigabit SFP
Power Over Ethernet (PoE)
PoE+
PoE Budget
75 W
Performance
Switching capacity: 20 Gbps , Forwarding performance: 14.88 Mpps
MAC Address Table Size
16K entries
Jumbo Frame Support
10KB
Routing Protocol
IGMPv2, IGMP, IGMPv3, static IPv6 routing
Remote Management Protocol
SNMP 1, RMON 1, SNMP 3, SNMP 2c, HTTP, HTTPS
Features
DHCP support, VLAN support, port mirroring, Weighted Round Robin (WRR) queuing, MAC address filtering, IPv6 support, GREENnet technology, Spanning Tree Protocol (STP) support, Rapid Spanning Tree Protocol (RSTP) support, Multiple Spanning Tree Protocol (MSTP) support, DHCP snooping, Access Control List (ACL) support, Jumbo Frames support, reset button, bandwidth control, LLDP support, Link Aggregation Control Protocol (LACP), Management Information Base (MIB), Dynamic VLAN Support (GVRP), Network Access Control (NAC), Strict Priority Queuing (SPQ), Neighbor Discovery Protocol (NDP), Class of Service (CoS), tagged VLAN, Loopback, Denial of Service (DoS), Duplicated Address Detection
Compliant Standards
IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.1ab (LLDP), IEEE 802.3at, IEEE 802.3az
Power
AC 120/230 V ( 50/60 Hz )
Dimensions (WxDxH)
33 cm x 18.3 cm x 4.445 cm
Weight
1.9 kg
System Requirements
Microsoft Windows Vista (32/64 bits), Microsoft Windows 7 (32/64 bits), Microsoft Windows XP (32/64 bits), Microsoft Windows Server 2008 (32/64-bits), Microsoft Windows Server 2003 (32/64-bits), Windows 8 (32/64 bits)
Manufacturer Warranty
3 years warranty
Bundled Services
3 years warranty


Detail

General

Device Type
Switch - 10 ports - Managed
Enclosure Type
Desktop, rack-mountable 1U
Subtype
Gigabit Ethernet
Ports
8 x 10/100/1000 (PoE+) + 2 x 10/100/1000 + 2 x shared Gigabit SFP
Power Over Ethernet (PoE)
PoE+
PoE Budget
75 W
Performance
Switching capacity: 20 Gbps , Forwarding performance: 14.88 Mpps
MAC Address Table Size
16K entries
Jumbo Frame Support
10KB
Routing Protocol
IGMPv2, IGMP, IGMPv3, static IPv6 routing
Remote Management Protocol
SNMP 1, RMON 1, SNMP 3, SNMP 2c, HTTP, HTTPS
Encryption Algorithm
TLS, SSL 3.0, SSL 2.0
Authentication Method
RADIUS, TACACS+
Features
DHCP support, VLAN support, port mirroring, Weighted Round Robin (WRR) queuing, MAC address filtering, IPv6 support, GREENnet technology, Spanning Tree Protocol (STP) support, Rapid Spanning Tree Protocol (RSTP) support, Multiple Spanning Tree Protocol (MSTP) support, DHCP snooping, Access Control List (ACL) support, Jumbo Frames support, reset button, bandwidth control, LLDP support, Link Aggregation Control Protocol (LACP), Management Information Base (MIB), Dynamic VLAN Support (GVRP), Network Access Control (NAC), Strict Priority Queuing (SPQ), Neighbor Discovery Protocol (NDP), Class of Service (CoS), tagged VLAN, Loopback, Denial of Service (DoS), Duplicated Address Detection
Compliant Standards
IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.1ab (LLDP), IEEE 802.3at, IEEE 802.3az
Flash Memory
8 MB

Expansion / Connectivity

Interfaces
8 x 1000Base-T - RJ-45 - PoE+ - 30 W , 2 x 1000Base-T - RJ-45 , 2 x - SFP

Power

Power Device
Internal power supply
Voltage Required
AC 120/230 V ( 50/60 Hz )
Power Consumption Operational
92.3 Watt

Miscellaneous

Rack Mounting Kit
Included
Compliant Standards
FCC, RoHS, WEEE

Software / System Requirements

Software Included
Drivers & Utilities
OS Required
Microsoft Windows Vista (32/64 bits), Microsoft Windows 7 (32/64 bits), Microsoft Windows XP (32/64 bits), Microsoft Windows Server 2008 (32/64-bits), Microsoft Windows Server 2003 (32/64-bits), Windows 8 (32/64 bits)

Dimensions & Weight

Width
33 cm
Depth
18.3 cm
Height
4.445 cm
Weight
1.9 kg

Manufacturer Warranty

Service & Support
Limited warranty - 3 years

Environmental Parameters

Min Operating Temperature
0 °C
Max Operating Temperature
45 °C
Humidity Range Operating
0 - 90% (non-condensing)
