Description

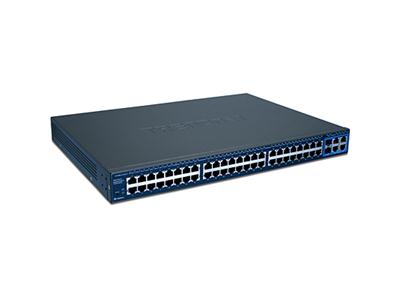

TRENDnet's TEG-2248WS 52-port Gigabit Web-Based Smart Switch is the ideal switch for network segmenting. It has 48 10/100Mbps and 2 10/100/1000Mbps RJ45 ports with Auto-Sensing and Auto-MDIX feature for easy installation. This switch also has 2 Mini-GBIC ports that accept optional gigabit fiber modules for greater flexibility. The TEG-2248WS supports web browser configuration; Network Administrators can use web browsers to configure port speed, port-based VLAN, QoS, Trunking and also to monitor each port's status. TRENDnet's powerful and easy-to-use TEG-2248WS is designed to reduce unnecessary broadcast traffic and enhance network security.
Specifications
Summary
- Product Description
- TRENDnet TEG 2248WS - switch - 48 ports - Managed - rack-mountable
- Device Type
- Switch - 48 ports - Managed
- Enclosure Type
- Rack-mountable 1U
- Subtype
- Fast Ethernet
- Ports
- 48 x 10/100 + 2 x SFP + 2 x 10/100/1000
- MAC Address Table Size
- 4K entries
- Remote Management Protocol
- HTTP
- Features
- Flow control, trunking, VLAN support, store and forward
- Compliant Standards
- IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x
- Power
- AC 120/230 V (50/60 Hz)
- Dimensions (WxDxH)
- 44 cm x 20 cm x 4.4 cm
- Weight
- 2.6 kg
- Manufacturer Warranty
- 5-year warranty
Detailed Specification
General
- Device Type
- Switch - 48 ports - Managed
- Enclosure Type
- Rack-mountable 1U
- Subtype
- Fast Ethernet
- Ports
- 48 x 10/100 + 2 x SFP + 2 x 10/100/1000
- MAC Address Table Size
- 4K entries
- Remote Management Protocol
- HTTP
- Features
- Flow control, trunking, VLAN support, store and forward
- Compliant Standards
- IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x
- Flash Memory
- 1.5 MB
- Status Indicators
- Power, system, link/activity
Expansion / Connectivity
- Interfaces
- 2 x 1000Base-T RJ-45 , 48 x 100Base-TX RJ-45 , 2 x SFP (mini-GBIC)
Power
- Power Device
- Internal power supply
- Voltage Required
- AC 120/230 V (50/60 Hz)
- Power Consumption Operational
- 26 Watt
Miscellaneous
- Rack Mounting Kit
- Included
- Compliant Standards
- FCC Class A certified, cUL, VCCI Class A ITE, IEC 60950, UL 60950
Dimensions & Weight
- Width
- 44 cm
- Depth
- 20 cm
- Height
- 4.4 cm
- Weight
- 2.6 kg
Manufacturer Warranty
- Service & Support
- Limited warranty - 5 years
Environmental Parameters
- Min Operating Temperature
- 0 °C
- Max Operating Temperature
- 40 °C
- Humidity Range Operating
- 10 - 90%
