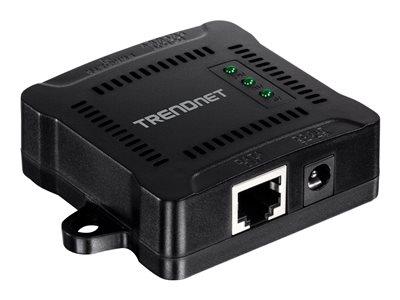

TRENDnet Gigabit Power over Ethernet (PoE) Splitter

Review this product
Quicklinx: BX38WS00 Mfr#: TPE-104GS
Ordered upon request
£16.45 ex VAT
£19.74 inc VAT
Qty
Standard delivery Product out of stock. Due date unavailable.

Description

  • Install a non-PoE device in a remote location
  • Splits a Gigabit PoE signal into separate power and Gigabit data sources
  • Set the output power to either 5 V, 7.5 V, 9 V, or 12 V
  • Use this compact device with TRENDnet PoE switches or injectors
  • Save on installation and equipment costs

TRENDnet’s Gigabit PoE Splitter, model TPE-104GS, networks a non-PoE device in a remote location using a PoE network connection. The TPE-104GS splits a Gigabit PoE connection into separate power and Gigabit data sources. A handy toggle switch adjusts output power to 5 V, 7.5 V, 9 V, or 12 V in order to match non-PoE device power requirements. The included 2 and 2.5 mm jumper cables increase power pin device compatibility.

PoE
Compatible with PoE (802.3af ) network connections.

Adjustable Dip Switch
A handy toggle switch adjusts output power to 5 V, 7.5 V, 9 V, or 12 V in order to match non-PoE device power requirements.

Jumper Cables
The included 2 and 2.5 mm jumper cables increase power pin device compatibility with the non-PoE networked device.

No Power Adapter
The TPE-104GS is powered by the PoE connection.

Mounting
Built-in mounting points increase installation flexibility.

  • Gigabit Ethernet

    Supports Gigabit network speeds.
  • Adjustable dip switch

    A handy toggle switch adjusts output power to 5 V, 7.5 V, 9 V, or 12 V in order to match non-PoE device power requirements.
  • No power adapter

    The TPE-104GS is powered by the PoE connection.
  • Mounting

    Built-in mounting points increase installation flexibility.

Specifications

Summary

Product Description
TRENDnet TPE-104GS - PoE splitter
Device Type
PoE splitter - external
Weight
60 g
Input Voltage
48 V
Output Voltage
5 / 7.5 / 9 / 12 V
Input Connectors
1 x RJ-45
Output connectors
1 x power DC jack 5.5 mm (ID: 2 mm)
Dimensions (WxDxH)
7 cm x 4.5 cm x 2.5 cm
Manufacturer Warranty
3-year warranty


Detailed Specification

General

Device Type
PoE splitter - external

Power Device

Input Voltage
48 V
Input Connectors
1 x RJ-45
Power Consumption Operational
0.3 Watt
Power Output Connectors Details
1 x power DC jack 5.5 mm (ID: 2 mm)
Output Voltage
5 / 7.5 / 9 / 12 V
Max Electric Current
0.38 A

Expansion / Connectivity

Interfaces
1 x Gigabit LAN - RJ-45

Miscellaneous

Cables Included
Power cable - external , Power converter cable - external
Features
Wall mountable, LED indicators
Compliant Standards
FCC, RoHS, WEEE

Manufacturer Warranty

Service & Support
Limited warranty - 3 years

Environmental Parameters

Min Operating Temperature
0 °C
Max Operating Temperature
45 °C
Humidity Range Operating
0 - 90% (non-condensing)

Dimensions & Weight

Width
7 cm
Depth
4.5 cm
Height
2.5 cm
Weight
60 g
