Description

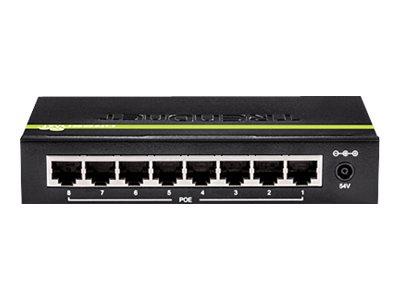

The 8-Port Gigabit PoE+ Switch, model TPE-TG82g, delivers data and power over existing Ethernet cables to Power over Ethernet (PoE) devices such as Access Points and IP Cameras. It supports both PoE and PoE+ devices with a 61W PoE budget. Plug and Play this sturdy metal switch for reliable high-speed PoE networking.
-
PoE power
A 61W PoE power budget supports up to eight Power over Ethernet devices. -
Gigabit Ethernet
Eight gigabit ports provide a 16Gbps switching capacity to support edge network installations. -
Compact design
With a compact and lightweight housing design, this switch is well-suited for desktop installations. Its fanless design is ideal for quiet environments that require silent operation.
Specifications
Summary
- Product Description
- TRENDnet TPE TG82G - switch - 8 ports - TAA Compliant
- Device Type
- Switch - 8 ports
- Subtype
- Gigabit Ethernet
- Ports
- 8 x 10/100/1000 (PoE+)
- Power Over Ethernet (PoE)
- PoE+
- PoE Budget
- 61 W
- Performance
- Switching capacity: 16 Gbps , Forwarding performance (64-byte packet size): 11.9 Mpps
- MAC Address Table Size
- 8K entries
- Jumbo Frame Support
- 9KB
- Features
- Half duplex mode, full duplex mode, GREENnet technology, fanless, metal housing
- Compliant Standards
- IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3at, IEEE 802.3az
- Power
- AC 120/230 V (50/60 Hz) 1.2 A
- Dimensions (WxDxH)
- 15 cm x 9.5 cm x 3 cm
- Weight
- 400 g
- TAA Compliant
- Yes
- Manufacturer Warranty
- Limited lifetime warranty
Detailed Specification
General
- Device Type
- Switch - 8 ports
- Enclosure Type
- Desktop
- Subtype
- Gigabit Ethernet
- Ports
- 8 x 10/100/1000 (PoE+)
- Power Over Ethernet (PoE)
- PoE+
- PoE Budget
- 61 W
- Performance
- Switching capacity: 16 Gbps , Forwarding performance (64-byte packet size): 11.9 Mpps
- MAC Address Table Size
- 8K entries
- Jumbo Frame Support
- 9KB
- Features
- Half duplex mode, full duplex mode, GREENnet technology, fanless, metal housing
- Compliant Standards
- IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3at, IEEE 802.3az
- Status Indicators
- Port status
Expansion / Connectivity
- Interfaces
- 8 x 1000Base-T RJ-45 PoE+
Power
- Power Device
- External power adapter
- Voltage Required
- AC 120/230 V (50/60 Hz)
- Electric Current Required
- 1.2 A
- Power Consumption Operational
- 36 Watt
Miscellaneous
- Compliant Standards
- Plug and Play, FCC
- TAA Compliant
- Yes
Dimensions & Weight
- Width
- 15 cm
- Depth
- 9.5 cm
- Height
- 3 cm
- Weight
- 400 g
Manufacturer Warranty
- Service & Support
- Limited warranty - lifetime , Limited warranty - power supply and fans - 1 year
Environmental Parameters
- Min Operating Temperature
- 0 °C
- Max Operating Temperature
- 40 °C
- Humidity Range Operating
- 90% (non-condensing)
