Description

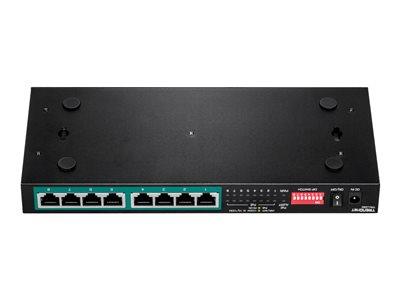

The TPE LG80 delivers data and power to PoE devices such as access points, VoIP phones, and IP cameras. It supports both PoE and PoE+ devices. Its fanless design is perfect for quiet environments that require silent operation.
-
Port isolation
Ideal for surveillance networking applications, the DIP switch also enables port isolation. -
LED indicators
LED indicators convey PoE and port status.
Specifications
Summary
- Product Description
- TRENDnet TPE LG80 - switch - 8 ports - unmanaged - TAA Compliant
- Device Type
- Switch - 8 ports - unmanaged
- Subtype
- Gigabit Ethernet
- Ports
- 8 x 10/100/1000 (PoE+)
- Power Over Ethernet (PoE)
- PoE+
- PoE Budget
- 65 W
- Performance
- Switching capacity: 16 Gbps , Forwarding performance (64-byte packet size): 11.9 Mpps
- MAC Address Table Size
- 4K entries
- Jumbo Frame Support
- 9KB
- Features
- VLAN support, half duplex mode, full duplex mode, wall mountable, Quality of Service (QoS), fanless, built-in DIP switch, port isolation, Class of Service (CoS), metal housing, long range PoE+ up to 200m at 10Mbps
- Compliant Standards
- IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3p, IEEE 802.3at, IEEE 802.3az
- Power
- AC 120/230 V (50/60 Hz)
- Dimensions (WxDxH)
- 24 cm x 10.5 cm x 2.7 cm
- Weight
- 592 g
- TAA Compliant
- Yes
- Manufacturer Warranty
- Limited lifetime warranty
Detailed Specification
General
- Device Type
- Switch - 8 ports - unmanaged
- Enclosure Type
- Desktop
- Subtype
- Gigabit Ethernet
- Ports
- 8 x 10/100/1000 (PoE+)
- Power Over Ethernet (PoE)
- PoE+
- PoE Budget
- 65 W
- Performance
- Switching capacity: 16 Gbps , Forwarding performance (64-byte packet size): 11.9 Mpps
- MAC Address Table Size
- 4K entries
- Jumbo Frame Support
- 9KB
- Features
- VLAN support, half duplex mode, full duplex mode, wall mountable, Quality of Service (QoS), fanless, built-in DIP switch, port isolation, Class of Service (CoS), metal housing, long range PoE+ up to 200m at 10Mbps
- Compliant Standards
- IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3p, IEEE 802.3at, IEEE 802.3az
- RAM
- 192 KB
- Status Indicators
- Power, alert, PoE, link/activity, link/speed
Expansion / Connectivity
- Interfaces
- 8 x Gigabit LAN RJ-45 PoE+
Power
- Power Device
- External power adapter
- Power Provided
- 55 V - 1.3 A
- Voltage Required
- AC 120/230 V (50/60 Hz)
- Power Consumption Operational
- 70.6 Watt
Miscellaneous
- Compliant Standards
- Plug and Play, FCC, RoHS, WEEE
- TAA Compliant
- Yes
Dimensions & Weight
- Width
- 24 cm
- Depth
- 10.5 cm
- Height
- 2.7 cm
- Weight
- 592 g
Manufacturer Warranty
- Service & Support
- Limited warranty - lifetime
Environmental Parameters
- Min Operating Temperature
- 0 °C
- Max Operating Temperature
- 40 °C
- Humidity Range Operating
- 0 - 90% (non-condensing)
