Description
TRENDnet's Gigabit PoE+ switch reduces equipment and installation costs by delivering data and power over existing Ethernet cables. This full power PoE switch features eight Gigabit PoE+ ports, supplying power for devices such as high-power wireless access points, IP cameras, and VoIP phone systems.
Specifications
Summary
- Product Description

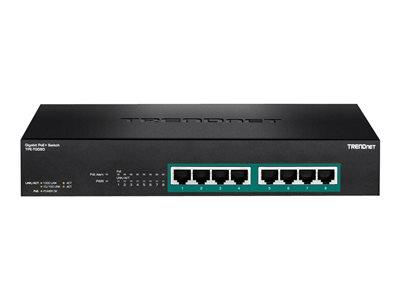

- TRENDnet TPE TG80F - switch - 8 ports - rack-mountable - TAA Compliant
- Device Type
- Switch - 8 ports
- Enclosure Type
- Rack-mountable
- Subtype
- Gigabit Ethernet
- Ports
- 8 x 10/100/1000 (PoE+)
- Power Over Ethernet (PoE)
- PoE+
- PoE Budget
- 240 W
- Performance
- Switching capacity: 16 Gbps , Forwarding performance (64-byte packet size): 11.9 Mpps , Buffer memory: 192 KB
- MAC Address Table Size
- 4K entries
- Jumbo Frame Support
- 9KB
- Features
- Half duplex mode, full duplex mode, fanless, metal housing
- Compliant Standards
- IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3at
- Power
- AC 120/230 V (50/60 Hz)
- Dimensions (WxDxH)
- 26.5 cm x 18.4 cm x 4.4 cm
- Weight
- 1.7 kg
- TAA Compliant
- Yes
- Manufacturer Warranty
- Limited lifetime warranty
Detailed Specification
General
- Device Type
- Switch - 8 ports
- Enclosure Type
- Rack-mountable
- Subtype
- Gigabit Ethernet
- Ports
- 8 x 10/100/1000 (PoE+)
- Power Over Ethernet (PoE)
- PoE+
- PoE Budget
- 240 W
- Performance
- Switching capacity: 16 Gbps , Forwarding performance (64-byte packet size): 11.9 Mpps , Buffer memory: 192 KB
- MAC Address Table Size
- 4K entries
- Jumbo Frame Support
- 9KB
- Features
- Half duplex mode, full duplex mode, fanless, metal housing
- Compliant Standards
- IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3at
- Status Indicators
- Port status
Expansion / Connectivity
- Interfaces
- 8 x 1000Base-T RJ-45 PoE+
Power
- Power Device
- Internal power supply
- Voltage Required
- AC 120/230 V (50/60 Hz)
Miscellaneous
- Rack Mounting Kit
- Included
- Compliant Standards
- FCC, ETL, CE/EMC
- TAA Compliant
- Yes
Dimensions & Weight
- Width
- 26.5 cm
- Depth
- 18.4 cm
- Height
- 4.4 cm
- Weight
- 1.7 kg
Manufacturer Warranty
- Service & Support
- Limited warranty - lifetime , Limited warranty - power supply and fans - 1 year
Environmental Parameters
- Min Operating Temperature
- 0 °C
- Max Operating Temperature
- 40 °C
- Humidity Range Operating
- 90% (non-condensing)
