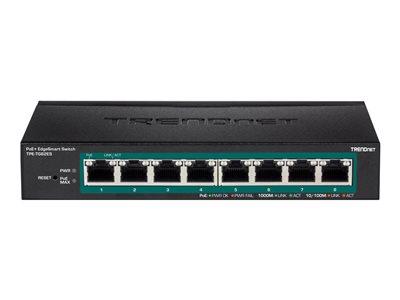

TRENDnet 8-Port Gigabit EdgeSmart PoE+ Switch (61W)
Description
TRENDnet's 8-Port Gigabit EdgeSmart PoE+ Switch, model TPE-TG82ES, is a cost-effective desktop PoE managed switch solution for high-speed gigabit PoE+ applications. This EdgeSmart switch features the most commonly used managed switch features, reducing unnecessary switch complexity. The web-based management interface offers features for traffic control, LACP, RSTP, VLAN, QoS, and monitoring. TRENDnet's TPE-TG82ES desktop PoE managed switch provides eight gigabit PoE+ ports for connecting devices such as wireless access points, IP cameras, and VoIP handsets.
-
EdgeSmart management
Provides an easy-to-use web-based management interface for reduced switch configuration complexity and offers a combination of more commonly used SMB management features for easy deployment. -
Integration flexibility
Managed features include loopback detection, RSTP, LACP, VLAN, IGMP Snooping, and QoS for flexible network integration. -
PoE+ power
A 64W PoE power budget supplies up to eight Power over Ethernet devices.
Specifications
Summary
- Product Description
- TRENDnet TPE TG82ES - switch - 8 ports - smart - TAA Compliant
- Device Type
- Switch - 8 ports - smart
- Subtype
- Gigabit Ethernet
- Ports
- 8 x 10/100/1000 (PoE+)
- Power Over Ethernet (PoE)
- PoE+
- PoE Budget
- 64 W
- Performance
- Switching capacity: 16 Gbps , Forwarding rate: 11.9 Mpps
- Capacity
- VLAN groups: 32 , Multicast groups: 32
- MAC Address Table Size
- 4K entries
- Jumbo Frame Support
- 9KB
- Routing Protocol
- IGMPv2, IGMP, IGMPv3
- Remote Management Protocol
- SNMP 1, SNMP 2c, HTTP
- Features
- IGMP snooping, port mirroring, Broadcast Storm Control, half duplex mode, full duplex mode, Multicast Storm Control, firmware upgradable, Weighted Fair Queuing (WFQ), wall mountable, Spanning Tree Protocol (STP) support, Rapid Spanning Tree Protocol (RSTP) support, reset button, bandwidth control, fanless, short circuit protection, Class of Service (CoS), Strict Priority (SP), tagged VLAN, PoE overcurrent protection, cable test, Voice VLAN, Private VLAN, loopback detection, port-based QoS, block unknown multicast, Asymmetric VLAN
- Compliant Standards
- IEEE 802.3, IEEE 802.3u, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.3at, IEEE 802.3az
- Power
- AC 120/230 V (50 - 60 Hz) 1.2 A
- Dimensions (WxDxH)
- 17.1 cm x 9.78 cm x 2.86 cm
- Weight
- 423 g
- TAA Compliant
- Yes
Detailed Specification
General
- Device Type
- Switch - 8 ports - smart
- Enclosure Type
- Desktop
- Subtype
- Gigabit Ethernet
- Ports
- 8 x 10/100/1000 (PoE+)
- Power Over Ethernet (PoE)
- PoE+
- PoE Budget
- 64 W
- Performance
- Switching capacity: 16 Gbps , Forwarding rate: 11.9 Mpps
- Capacity
- VLAN groups: 32 , Multicast groups: 32
- MAC Address Table Size
- 4K entries
- Jumbo Frame Support
- 9KB
- Routing Protocol
- IGMPv2, IGMP, IGMPv3
- Remote Management Protocol
- SNMP 1, SNMP 2c, HTTP
- Features
- IGMP snooping, port mirroring, Broadcast Storm Control, half duplex mode, full duplex mode, Multicast Storm Control, firmware upgradable, Weighted Fair Queuing (WFQ), wall mountable, Spanning Tree Protocol (STP) support, Rapid Spanning Tree Protocol (RSTP) support, reset button, bandwidth control, fanless, short circuit protection, Class of Service (CoS), Strict Priority (SP), tagged VLAN, PoE overcurrent protection, cable test, Voice VLAN, Private VLAN, loopback detection, port-based QoS, block unknown multicast, Asymmetric VLAN
- Compliant Standards
- IEEE 802.3, IEEE 802.3u, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.3at, IEEE 802.3az
- RAM
- 192 KB
- Status Indicators
- Power, PoE, link/activity
Expansion / Connectivity
- Interfaces
- 8 x Gigabit LAN RJ-45 PoE+ - 30 W
Power
- Power Device
- External power adapter
- Power Provided
- 54 V - 1.67 A
- Voltage Required
- AC 120/230 V (50 - 60 Hz)
- Electric Current Required
- 1.2 A
- Power Consumption Operational
- 68.6 Watt
Miscellaneous
- MTBF
- 730,455 hours
- Compliant Standards
- FCC, RoHS, WEEE
- TAA Compliant
- Yes
Dimensions & Weight
- Width
- 17.1 cm
- Depth
- 9.78 cm
- Height
- 2.86 cm
- Weight
- 423 g
Environmental Parameters
- Min Operating Temperature
- 0 °C
- Max Operating Temperature
- 40 °C
- Humidity Range Operating
- 90% (non-condensing)
