Description

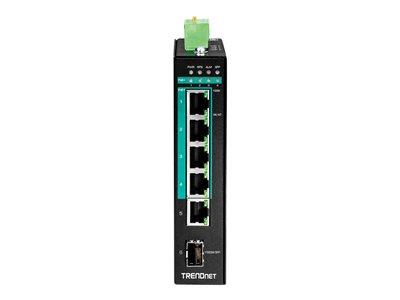

TRENDnet's TI-PG541 is a reliable IP30 unmanaged PoE+ DIN-rail switch with hardened components rated for extreme industrial environments. It offers four Gigabit PoE+ ports, one Gigabit port, one SFP slot, and a full PoE power budget of 120 watts. Dual redundant power inputs with overload current protection support zero downtime requirements. An alarm output can be triggered by a primary and/or redundant power failure.
-
Full PoE+ power budget
Supplies up to 30 watts of PoE/PoE+ power per port with a 120 watt PoE power budget. -
Integrated DIN-rail mount
IP30 rated metal enclosure with integrated DIN-rail mounting hardware. -
Redundant power
Dual redundant power inputs with overload current protection. -
Alarm output
Alarm output is triggered by power failure of primary and/or redundant power. -
Jumbo frame
Sends larger packets, or jumbo frames, for increased performance. -
Extreme temperatures
Hardened switch is rated for an operating temperature range of -40 to 70 °C (-40 to 158 °F). -
Electro magnetic compliance
Complies with IEC61000-6-2 EMC generic standard immunity for industrial environments. -
LED indicators
LED indicators convey power, redundant power, alarm, SFP, and network port status. -
Grounding point
Grounding point protects equipment from external electrical surges.
Specifications
Summary
- Product Description
- TRENDnet TI-PG541 - switch - 5 ports - TAA Compliant
- Device Type
- Switch - 5 ports
- Subtype
- Gigabit Ethernet
- Ports
- 4 x 10/100/1000 (PoE+) + 1 x 10/100/1000 + 1 x Gigabit SFP
- Power Over Ethernet (PoE)
- PoE+
- PoE Budget
- 120 W
- Performance
- Switching capacity: 12 Gbps , Forwarding performance: 8.9 Mpps
- MAC Address Table Size
- 8K entries
- Jumbo Frame Support
- 10KB
- Features
- Auto-negotiation, store and forward, half duplex mode, full duplex mode, surge protection, 512KB packet buffer, built-in DIP switch, 8KV ESD Protector, metal housing
- Compliant Standards
- IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3x, IEEE 802.3at
- Power
- AC 120/230 V (50/60 Hz) - power adapter not included
- Power Redundancy
- Optional
- Dimensions (WxDxH)
- 3 cm x 10 cm x 13.5 cm
- Weight
- 500 g
- TAA Compliant
- Yes
- Manufacturer Warranty
- Limited lifetime warranty
Detailed Specification
General
- Device Type
- Switch - 5 ports
- Enclosure Type
- DIN rail mountable
- Subtype
- Gigabit Ethernet
- Ports
- 4 x 10/100/1000 (PoE+) + 1 x 10/100/1000 + 1 x Gigabit SFP
- Power Over Ethernet (PoE)
- PoE+
- PoE Budget
- 120 W
- Performance
- Switching capacity: 12 Gbps , Forwarding performance: 8.9 Mpps
- MAC Address Table Size
- 8K entries
- Jumbo Frame Support
- 10KB
- Features
- Auto-negotiation, store and forward, half duplex mode, full duplex mode, surge protection, 512KB packet buffer, built-in DIP switch, 8KV ESD Protector, metal housing
- Compliant Standards
- IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3x, IEEE 802.3at
Expansion / Connectivity
- Interfaces
- 4 x 1000Base-T RJ-45 PoE+ - 30 W , 1 x 1000Base-T RJ-45 , 1 x SFP
Power
- Power Device
- External power adapter (not included)
- Power Redundancy
- Optional
- Power Redundancy Scheme
- 1+1 (with optional power supply)
- Power Provided
- 160 Watt
- Voltage Required
- AC 120/230 V (50/60 Hz)
- Power Consumption Operational
- 130 Watt
Miscellaneous
- Compliant Standards
- FCC, IEC 60068-2-27, IEC 60068-2-32, IEC 60068-2-6, IP30, IEC 61000-6-2:2005
- TAA Compliant
- Yes
Dimensions & Weight
- Width
- 3 cm
- Depth
- 10 cm
- Height
- 13.5 cm
- Weight
- 500 g
Manufacturer Warranty
- Service & Support
- Limited warranty - lifetime
Environmental Parameters
- Min Operating Temperature
- -20 °C
- Max Operating Temperature
- 60 °C
- Humidity Range Operating
- 0 - 95% (non-condensing)
