Description

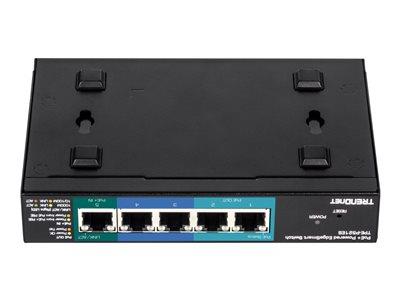

5-Port Gigabit PoE+ Powered EdgeSmart Switch with PoE Pass Through, model TPE-P521ES, is powered by a PoE+ switch or injector, no AC adapter is required. It features two gigabit non-PoE ports, and two gigabit PoE ports to power devices such as IP cameras, VoIP handsets, and wireless access points. Reducing unnecessary switch complexity, this EdgeSmart switch is equipped with only the most commonly used managed switch features. The simple web-based user interface allows you to easily manage VLANs, QoS, and monitoring.
-
Integration flexibility
Managed features include access control lists, VLAN, IGMP Snooping, and QoS for flexible network integration. -
PoE+ powered
No AC adapter required - this switch is powered by a PoE+ switch or injector, and features two gigabit non-PoE ports, and two gigabit PoE ports to power devices such as IP cameras. -
EdgeSmart management
Provides an easy to use web-based management interface for reduced switch configuration complexity and offers a combination of more commonly used SMB management features for easy deployment.
Specifications
Summary
- Product Description
- TRENDnet TPE P521ES - switch - 5 ports - smart - TAA Compliant
- Device Type
- Switch - 5 ports - smart
- Subtype
- Gigabit Ethernet
- Ports
- 1 x 10/100/1000 (PoE+ input) + 2 x 10/100/1000 (PoE) + 2 x 10/100/1000
- Power Over Ethernet (PoE)
- PoE+
- PoE Budget
- 18 W
- Performance
- Switching capacity: 10 Gbps , Forwarding rate: 7.44 Mpps
- Capacity
- VLAN groups: 32 , Multicast groups: 32
- MAC Address Table Size
- 2K entries
- Jumbo Frame Support
- 9KB
- Routing Protocol
- IGMPv2, IGMP, IGMPv3
- Remote Management Protocol
- SNMP 1, SNMP 2c, HTTP
- Features
- IGMP snooping, port mirroring, Broadcast Storm Control, half duplex mode, full duplex mode, Multicast Storm Control, firmware upgradable, WFQ, wall mountable, STP support, RSTP support, reset button, bandwidth control, fanless, short circuit protection, CoS, SP, tagged VLAN, metal housing, PoE overcurrent protection, cable test, Voice VLAN, Private VLAN, loopback detection, port-based VLAN, port-based QoS, block unknown multicast, PoE powered, Asymmetric VLAN, PoE Pass Through
- Compliant Standards
- IEEE 802.3, IEEE 802.3u, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.3at, IEEE 802.3az
- Dimensions (WxDxH)
- 15 cm x 9.7 cm x 2.86 cm
- Weight
- 370 g
- TAA Compliant
- Yes
- Manufacturer Warranty
- Limited lifetime warranty
Detailed Specification
General
- Device Type
- Switch - 5 ports - smart
- Enclosure Type
- Desktop
- Subtype
- Gigabit Ethernet
- Ports
- 1 x 10/100/1000 (PoE+ input) + 2 x 10/100/1000 (PoE) + 2 x 10/100/1000
- Power Over Ethernet (PoE)
- PoE+
- PoE Budget
- 18 W
- Performance
- Switching capacity: 10 Gbps , Forwarding rate: 7.44 Mpps
- Capacity
- VLAN groups: 32 , Multicast groups: 32
- MAC Address Table Size
- 2K entries
- Jumbo Frame Support
- 9KB
- Routing Protocol
- IGMPv2, IGMP, IGMPv3
- Remote Management Protocol
- SNMP 1, SNMP 2c, HTTP
- Features
- IGMP snooping, port mirroring, Broadcast Storm Control, half duplex mode, full duplex mode, Multicast Storm Control, firmware upgradable, WFQ, wall mountable, STP support, RSTP support, reset button, bandwidth control, fanless, short circuit protection, CoS, SP, tagged VLAN, metal housing, PoE overcurrent protection, cable test, Voice VLAN, Private VLAN, loopback detection, port-based VLAN, port-based QoS, block unknown multicast, PoE powered, Asymmetric VLAN, PoE Pass Through
- Compliant Standards
- IEEE 802.3, IEEE 802.3u, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.3at, IEEE 802.3az
- RAM
- 512 KB
- Status Indicators
- Power, PoE, link/activity
Expansion / Connectivity
- Interfaces
- 1 x Gigabit LAN RJ-45 PoE+ / input - 30 W , 2 x Gigabit LAN RJ-45 PoE - 15.4 W , 2 x Gigabit LAN RJ-45
Power
- Power Provided
- 30 Watt
- Power Consumption Operational
- 20.4 Watt
Miscellaneous
- MTBF
- 730,455 hours
- Compliant Standards
- FCC, RoHS, WEEE
- TAA Compliant
- Yes
Dimensions & Weight
- Width
- 15 cm
- Depth
- 9.7 cm
- Height
- 2.86 cm
- Weight
- 370 g
Manufacturer Warranty
- Service & Support
- Limited warranty - lifetime
Environmental Parameters
- Min Operating Temperature
- 0 °C
- Max Operating Temperature
- 40 °C
- Humidity Range Operating
- 90% (non-condensing)
