Description
This sturdy metal switch is ideal for reliable high-speed PoE networking. Its fanless design is perfect for quiet environments that require silent operation.
Specifications
Summary
- Product Description

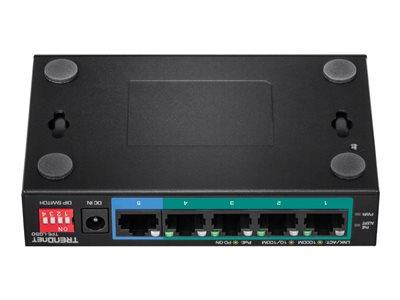

- TRENDnet TPE LG50 - switch - 5 ports - unmanaged - TAA Compliant
- Device Type
- Switch - 5 ports - unmanaged
- Subtype
- Gigabit Ethernet
- Ports
- 4 x 10/100/1000 (PoE+) + 1 x 10/100/1000
- Power Over Ethernet (PoE)
- PoE+
- PoE Budget
- 32 W
- Performance
- Switching capacity: 10 Gbps , Forwarding performance (64-byte packet size): 7.44 Mpps
- MAC Address Table Size
- 2K entries
- Jumbo Frame Support
- 9KB
- Features
- VLAN support, half duplex mode, full duplex mode, wall mountable, QoS, fanless, built-in DIP switch, port isolation, CoS, metal housing, long range PoE+ up to 200m at 10Mbps
- Compliant Standards
- IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3p, IEEE 802.3at
- Power
- AC 120/230 V (50/60 Hz)
- Dimensions (WxDxH)
- 12.1 cm x 7.5 cm x 2.6 cm
- Weight
- 246 g
- TAA Compliant
- Yes
- Manufacturer Warranty
- Limited lifetime warranty
Detailed Specification
General
- Device Type
- Switch - 5 ports - unmanaged
- Enclosure Type
- Desktop
- Subtype
- Gigabit Ethernet
- Ports
- 4 x 10/100/1000 (PoE+) + 1 x 10/100/1000
- Power Over Ethernet (PoE)
- PoE+
- PoE Budget
- 32 W
- Performance
- Switching capacity: 10 Gbps , Forwarding performance (64-byte packet size): 7.44 Mpps
- MAC Address Table Size
- 2K entries
- Jumbo Frame Support
- 9KB
- Features
- VLAN support, half duplex mode, full duplex mode, wall mountable, QoS, fanless, built-in DIP switch, port isolation, CoS, metal housing, long range PoE+ up to 200m at 10Mbps
- Compliant Standards
- IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3p, IEEE 802.3at
- RAM
- 128 KB
- Status Indicators
- Power, alert, PoE, link/activity, link/speed
Expansion / Connectivity
- Interfaces
- 4 x Gigabit LAN RJ-45 PoE+ , 1 x Gigabit LAN RJ-45
Power
- Power Device
- External power adapter
- Power Provided
- 54 V - 0.7 A
- Voltage Required
- AC 120/230 V (50/60 Hz)
- Power Consumption Operational
- 36.3 Watt
Miscellaneous
- Compliant Standards
- Plug and Play, FCC, RoHS, WEEE
- TAA Compliant
- Yes
Dimensions & Weight
- Width
- 12.1 cm
- Depth
- 7.5 cm
- Height
- 2.6 cm
- Weight
- 246 g
Manufacturer Warranty
- Service & Support
- Limited warranty - lifetime
Environmental Parameters
- Min Operating Temperature
- 0 °C
- Max Operating Temperature
- 40 °C
- Humidity Range Operating
- 0 - 90% (non-condensing)
