Description
TRENDnet's Gigabit PoE+ Smart Surveillance Switch series is designed to simplify the installation and management of surveillance networks, especially for integrators and installers. These ONVIF switches are optimized for the surveillance industry; surveillance mode provides a graphical dashboard interface with detailed information about the switch and each connected PoE device. Connect ONVIF compliant IP cameras and NVRs for more advanced capabilities such as changing device IP settings, and to view individual IP camera video within the switch GUI. The Smart Surveillance Switches are also PoE self-healing switches featuring PoE device auto-recovery and power scheduling.
Installers and integrators can save on equipment costs and reduce installation time with TRENDnet's Gigabit PoE+ Smart Surveillance Switches by delivering up to 30W per port of PoE power and data over existing Ethernet cables. Available PoE port controls include enabling and disabling PoE, PD alive check, and power scheduling. PD alive check is an automated PoE self-healing switch feature that attempts to recover an unresponsive PoE device connected to the switch. If a PoE device such as a PoE camera becomes unresponsive to pings, the ONVIF compliant switch will auto-reboot the PoE port in attempt to recover the device.
These PoE+ ONVIF switches feature a 4-digit LED display showing total PoE power, available power, and power-per-port. They also support long distance PoE+ networking up to 656 ft./200m away at speeds up to 10mbps. TRENDnet's Gigabit PoE+ Smart Surveillance Switches also feature SFP slots to support long-distance fiber networking applications.
Advanced managed switch features include LACP to group ports together to increase bandwidth between switches, VLANs for segmenting and isolating virtual LAN groups, QoS for traffic prioritization, port bandwidth controls, and SNMP monitoring, making this ONVIF switch a powerful SMB network solution. Improve voice performance by isolating and prioritizing VoIP traffic from normal data traffic with the easy-to-use voice VLAN feature.
Specifications
Summary
- Product Description

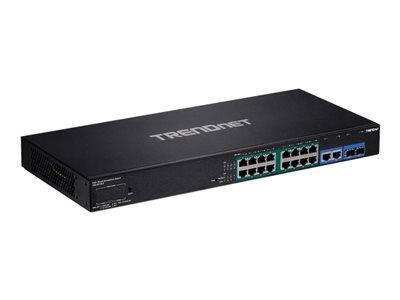

- TRENDnet TPE 3018LS - switch - 18 ports - smart - rack-mountable - TAA Compliant
- Device Type
- Switch - 18 ports - smart
- Enclosure Type
- Rack-mountable 1U
- Subtype
- Gigabit Ethernet
- Ports
- 8 x 10/100/1000 (PoE+) + 2 x combo Gigabit SFP
- Power Over Ethernet (PoE)
- PoE+
- PoE Budget
- 220 W
- Performance
- Switching capacity: 36 Gbps , Switching fabric bandwidth: 36 Gbps , Forwarding performance (64-byte packet size): 26.7 Mpps
- Capacity
- VLAN groups: 256
- MAC Address Table Size
- 8K entries
- Jumbo Frame Support
- 10KB
- Remote Management Protocol
- SNMP 1, Telnet, SNMP 3, SNMP 2c, HTTP, HTTPS, SSH-2, CLI
- Features
- VLAN support, IGMP snooping, Syslog support, port mirroring, Broadcast Storm Control, IPv6 support, half duplex mode, full duplex mode, Multicast Storm Control, Unicast Storm Control, STP support, RSTP support, MSTP support, QoS, Cable Diagnostics Function, UDLD, IPv4 support, fanless, LACP support, LLDP support, Port Security, 512KB packet buffer, MVR, tagged VLAN, ONVIF support, per port bandwidth control, DSCP support, IP source guard, Head of Line Blocking Prevention, IGMP querier, protected ports, DoS protection, loopback detection, IGMP immediate leave, Unknown Storm Control
- Compliant Standards
- IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.1ab (LLDP), IEEE 802.3at, IEEE 802.3az
- Power
- AC 120/230 V (50/60 Hz)
- Dimensions (WxDxH)
- 44 cm x 19.5 cm x 4.445 cm
- Weight
- 2.93 kg
- TAA Compliant
- Yes
- Manufacturer Warranty
- Limited lifetime warranty
Detailed Specification
General
- Device Type
- Switch - 18 ports - smart
- Enclosure Type
- Rack-mountable 1U
- Subtype
- Gigabit Ethernet
- Ports
- 8 x 10/100/1000 (PoE+) + 2 x combo Gigabit SFP
- Power Over Ethernet (PoE)
- PoE+
- PoE Budget
- 220 W
- Performance
- Switching capacity: 36 Gbps , Switching fabric bandwidth: 36 Gbps , Forwarding performance (64-byte packet size): 26.7 Mpps
- Capacity
- VLAN groups: 256
- MAC Address Table Size
- 8K entries
- Jumbo Frame Support
- 10KB
- Remote Management Protocol
- SNMP 1, Telnet, SNMP 3, SNMP 2c, HTTP, HTTPS, SSH-2, CLI
- Features
- VLAN support, IGMP snooping, Syslog support, port mirroring, Broadcast Storm Control, IPv6 support, half duplex mode, full duplex mode, Multicast Storm Control, Unicast Storm Control, STP support, RSTP support, MSTP support, QoS, Cable Diagnostics Function, UDLD, IPv4 support, fanless, LACP support, LLDP support, Port Security, 512KB packet buffer, MVR, tagged VLAN, ONVIF support, per port bandwidth control, DSCP support, IP source guard, Head of Line Blocking Prevention, IGMP querier, protected ports, DoS protection, loopback detection, IGMP immediate leave, Unknown Storm Control
- Compliant Standards
- IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.1ab (LLDP), IEEE 802.3at, IEEE 802.3az
- Built-in Devices
- LED display
Expansion / Connectivity
- Interfaces
- 16 x 1000Base-T RJ-45 PoE+ - 30 W , 2 x 1000Base-T RJ-45 , 2 x Gigabit LAN SFP
Power
- Power Device
- Internal power supply
- Voltage Required
- AC 120/230 V (50/60 Hz)
- Power Consumption Operational
- 14 Watt
Miscellaneous
- Rack Mounting Kit
- Included
- Compliant Standards
- FCC, ETL
- TAA Compliant
- Yes
Dimensions & Weight
- Width
- 44 cm
- Depth
- 19.5 cm
- Height
- 4.445 cm
- Weight
- 2.93 kg
Manufacturer Warranty
- Service & Support
- Limited warranty - lifetime
Environmental Parameters
- Min Operating Temperature
- 0 °C
- Max Operating Temperature
- 40 °C
- Humidity Range Operating
- 0 - 90% (non-condensing)
