Description

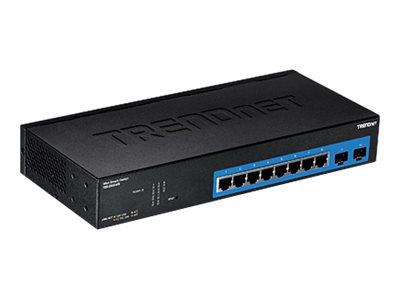

TRENDnet's 10 Port Gigabit Web Smart PoE+ Switch, model TPE-082WS, delivers advanced management features with a 20Gbps switching capacity. This fanless rack mountable IPv6 ready switch comes with an intuitive web-based interface. Advanced traffic management controls, troubleshooting, and SNMP monitoring support make this a powerful solution for SMB networks. The TPE-082WS provides eight gigabit PoE+ ports with a total power budget of 75 W, and two dedicated SFP slots for fiber applications. The PoE+ standard supplies up to 30 W of power per port for devices such as high power wireless access points, PTZ (Pan Tilt Zoom) Internet cameras, and VoIP telephony systems.
Specifications
Summary
- Product Description
- TRENDnet TPE 082WS - switch - 10 ports - rack-mountable - TAA Compliant
- Device Type
- Switch - 10 ports
- Enclosure Type
- Rack-mountable 1U
- Subtype
- Gigabit Ethernet
- Ports
- 10 x 10/100/1000 (PoE+) + 2 x shared Gigabit SFP
- Power Over Ethernet (PoE)
- PoE+
- PoE Budget
- 75 W
- Performance
- Forwarding performance (64-byte packet size): 14.9 Mpps , Switching fabric bandwidth: 20 Gbps
- Capacity
- IPv6 routes (static): 256 , VLAN IDs: 4094 , Multicast entries (IPv4): 256 , Maximum TCP/UDP sessions: 65535 , MAC address entries: 8000
- MAC Address Table Size
- 8K entries
- Jumbo Frame Support
- 10KB
- Remote Management Protocol
- SNMP 1, RMON 1, SNMP 3, SNMP 2c, HTTP, HTTPS
- Features
- IGMP snooping, port mirroring, Weighted Round Robin (WRR) queuing, IPv6 support, Virtual Cable Test (VCT) technology, DHCP snooping, Quality of Service (QoS), MLD snooping, fanless, LACP support, LLDP support, Dynamic VLAN Support (GVRP), Class of Service (CoS), Strict Priority (SP), Loopback, Denial of Service (DoS), Duplicated Address Detection, per port bandwidth control, DiffServ Code Point (DSCP) support, power-saving mode, Head of Line Blocking Prevention, TCP/UDP port setting, Static Link Aggregation, Voice VLAN, VLAN management, Private VLAN
- Compliant Standards
- IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.1ad, IEEE 802.3at, IEEE 802.3az
- Power
- AC 120/230 V (50/60 Hz)
- Dimensions (WxDxH)
- 28 cm x 12.58 cm x 4.4 cm
- Weight
- 920 g
- TAA Compliant
- Yes
- Manufacturer Warranty
- Limited lifetime warranty
Detailed Specification
General
- Device Type
- Switch - 10 ports
- Enclosure Type
- Rack-mountable 1U
- Subtype
- Gigabit Ethernet
- Ports
- 10 x 10/100/1000 (PoE+) + 2 x shared Gigabit SFP
- Power Over Ethernet (PoE)
- PoE+
- PoE Budget
- 75 W
- Performance
- Forwarding performance (64-byte packet size): 14.9 Mpps , Switching fabric bandwidth: 20 Gbps
- Capacity
- IPv6 routes (static): 256 , VLAN IDs: 4094 , Multicast entries (IPv4): 256 , Maximum TCP/UDP sessions: 65535 , MAC address entries: 8000
- MAC Address Table Size
- 8K entries
- Jumbo Frame Support
- 10KB
- Remote Management Protocol
- SNMP 1, RMON 1, SNMP 3, SNMP 2c, HTTP, HTTPS
- Encryption Algorithm
- TLS, SSL 3.0, SSL 2.0
- Authentication Method
- RADIUS, TACACS+
- Features
- IGMP snooping, port mirroring, Weighted Round Robin (WRR) queuing, IPv6 support, Virtual Cable Test (VCT) technology, DHCP snooping, Quality of Service (QoS), MLD snooping, fanless, LACP support, LLDP support, Dynamic VLAN Support (GVRP), Class of Service (CoS), Strict Priority (SP), Loopback, Denial of Service (DoS), Duplicated Address Detection, per port bandwidth control, DiffServ Code Point (DSCP) support, power-saving mode, Head of Line Blocking Prevention, TCP/UDP port setting, Static Link Aggregation, Voice VLAN, VLAN management, Private VLAN
- Compliant Standards
- IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.1ad, IEEE 802.3at, IEEE 802.3az
- Status Indicators
- Power, PoE, link/activity
Expansion / Connectivity
- Interfaces
- 8 x 1000Base-T RJ-45 PoE+ - 30 W , 2 x SFP
Power
- Power Device
- Internal power supply
- Voltage Required
- AC 120/230 V (50/60 Hz)
- Power Consumption Operational
- 82 Watt
Miscellaneous
- Rack Mounting Kit
- Included
- MTBF
- 862,966 hours
- Compliant Standards
- FCC, IPv6 Ready
- TAA Compliant
- Yes
Dimensions & Weight
- Width
- 28 cm
- Depth
- 12.58 cm
- Height
- 4.4 cm
- Weight
- 920 g
Manufacturer Warranty
- Service & Support
- Limited warranty - lifetime
Environmental Parameters
- Min Operating Temperature
- -5 °C
- Max Operating Temperature
- 50 °C
- Humidity Range Operating
- 95% (non-condensing)
