Description

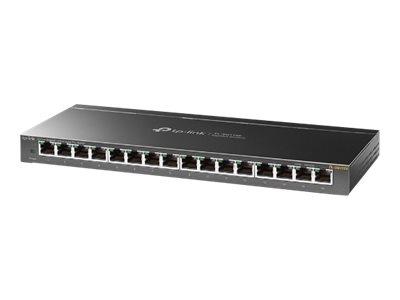

The TL-SG116E Unmanaged Pro switch is an ideal upgrade on unmanaged switches, suited for home and small business networks. A plug-and-play design makes for easy deployment without the need for a technician, while a robust metal casing provides better protection for components. Equipped with intelligent management features like QoS, VLAN, IGMP Snooping and more, this switch is effective in both simple and more demanding network environments.
TL-SG116E excels not only in simple plug-and-play networks but also in more demanding environments. Network monitoring enables users to observe traffic behavior. Port Mirroring, Loop Prevention and Cable Diagnostics allow connection problems on your network to be identified and located. Administrators can designate the priority of traffic based on Port/802.1p/DSCP QoS, for example, to ensure that voice and video applications remain clear and lag-free. Combining security with network performance, TL-SG116E supports MTU VLAN, port-based VLAN and 802.1Q-based VLAN functions.
-
Easy to use
Connecting devices to TL-SG116E is simple. Auto MDI/MDI-X crossover on all ports eliminate the need for crossover cables or uplink ports. Auto-negotiation on each port detects the link speed of a network device and intelligently adjusts settings for compatibility and optimal performance. -
Durable metal casing
The interior components of TL-SG116E are protected by high-quality metal casing to ensure a long product life. Having passed an array of stringent reliability tests, TL-SG116E delivers switching performance you can depend on. Its compact size makes it ideal for deployment on desktops or work benches. -
Go green with your Ethernet
TP-Link's latest generation of Unmanaged Pro Switches make use of innovative energy-saving technologies. Power consumption automatically adjusts according to link status and cable length, allowing you to expand your network while minimizing your carbon footprint. Save the planet and lower your energy bills - it's a win-win!
Specifications
Summary
- Product Description
- TP-Link TL-SG116E Unmanaged Pro - switch - 16 ports - unmanaged
- Device Type
- Switch - 16 ports - unmanaged
- Subtype
- Gigabit Ethernet
- Ports
- 16 x 10/100/1000
- Performance
- Packet forwarding rate: 23.81 Mpps , Switching capacity: 32 Gbps
- Capacity
- VLAN IDs: 4000 , VLANs supported: 32
- MAC Address Table Size
- 8K entries
- Jumbo Frame Support
- 9KB
- Features
- Auto-negotiation, VLAN support, auto-uplink (auto MDI/MDI-X), IGMP snooping, port mirroring, store and forward, Cable Diagnostics Function, fanless, loop prevention, Storm Control, rate limit, Static Link Aggregation
- Compliant Standards
- IEEE 802.3u, IEEE 802.3i, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x
- Dimensions (WxDxH)
- 28.6 cm x 11.17 cm x 2.54 cm
Detailed Specification
General
- Device Type
- Switch - 16 ports - unmanaged
- Enclosure Type
- Desktop
- Subtype
- Gigabit Ethernet
- Ports
- 16 x 10/100/1000
- Performance
- Packet forwarding rate: 23.81 Mpps , Switching capacity: 32 Gbps
- Capacity
- VLAN IDs: 4000 , VLANs supported: 32
- MAC Address Table Size
- 8K entries
- Jumbo Frame Support
- 9KB
- Features
- Auto-negotiation, VLAN support, auto-uplink (auto MDI/MDI-X), IGMP snooping, port mirroring, store and forward, Cable Diagnostics Function, fanless, loop prevention, Storm Control, rate limit, Static Link Aggregation
- Compliant Standards
- IEEE 802.3u, IEEE 802.3i, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x
Expansion / Connectivity
- Interfaces
- 16 x 1000Base-T RJ-45
Power
- Power Device
- External power adapter
- Power Consumption Operational
- 9.3 Watt
Miscellaneous
- Included Accessories
- Rubber feet
- Compliant Standards
- FCC, RoHS
Dimensions & Weight
- Width
- 28.6 cm
- Depth
- 11.17 cm
- Height
- 2.54 cm
Environmental Parameters
- Min Operating Temperature
- 0 °C
- Max Operating Temperature
- 40 °C
- Humidity Range Operating
- 10 - 90% (non-condensing)
- Min Storage Temperature
- -40 °C
- Max Storage Temperature
- 70 °C
- Humidity Range Storage
- 5 - 90% (non-condensing)
