Description
The TP-Link LiteWave Series Unmanaged Switches provide easy and affordable way to expand your wired network. They are easy to use and reliable. With these plug-and-play switches, you can expand your network connections to multiple devices instantly. With all ports support Auto-MDI/MDIX, there's no need to worry about the type of cable to use.
The LiteWave Series also supports energy-efficient technology, helping you save power and money. Power consumption automatically adjusts according to link status and cable length, allowing you to expand your network while minimizing your carbon footprint. Save the planet and lower your energy bills - it's a win-win!
The LS1008 is fully compatible with networked devices such as computers, printers, webcams, IPTVs. It has a wide range of application scenarios and is suitable for networking in school dormitories, surveillance, homes, and small businesses.
-
Let LiteWave bring you lighter network life
The TP-Link LiteWave Series Unmanaged Switches provide easy and affordable way to expand your wired network. They are easy to use and reliable. With these plug-and-play switches, you can expand your network connections to multiple devices instantly. With all ports support Auto-MDI/MDIX, there's no need to worry about the type of cable to use. -
Go green with your Ethernet
The LiteWave Series also supports energy-efficient technology, helping you save power and money. Power consumption automatically adjusts according to link status and cable length, allowing you to expand your network while minimizing your carbon footprint. Save the planet and lower your energy bills - it's a win-win! -
Fanless and desktop design
Compact desktop design, to meet your needs in any environment. Besides, fanless design ensures quiet operation. -
Use where you need, however you need
The LS1008 is fully compatible with networked devices such as computers, printers, webcams, IPTVs. It has a wide range of application scenarios and is suitable for networking in school dormitories, surveillance, homes, and small businesses.
Specifications
Summary
- Product Description

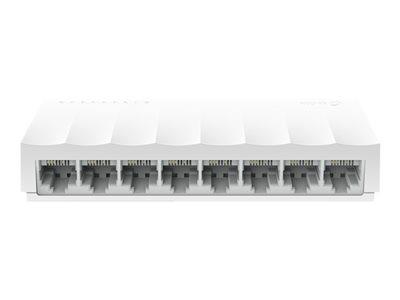

- TP-Link LiteWave LS1008 - switch - 8 ports - unmanaged
- Device Type
- Switch - 8 ports - unmanaged
- Subtype
- Fast Ethernet
- Ports
- 8 x 10/100
- Performance
- Switching capacity: 1.6 Gbps , Forwarding performance: 1.2 Mpps
- MAC Address Table Size
- 2K entries
- Jumbo Frame Support
- 2000 bytes
- Features
- Flow control, auto-negotiation, auto-uplink (auto MDI/MDI-X), store and forward, plastic housing, fanless, Back Pressure Support, Green Technology
- Compliant Standards
- IEEE 802.3u, IEEE 802.3i, IEEE 802.3x
- Dimensions (WxDxH)
- 12.46 cm x 4.87 cm x 2.28 cm
Detailed Specification
General
- Device Type
- Switch - 8 ports - unmanaged
- Enclosure Type
- Desktop
- Subtype
- Fast Ethernet
- Ports
- 8 x 10/100
- Performance
- Switching capacity: 1.6 Gbps , Forwarding performance: 1.2 Mpps
- MAC Address Table Size
- 2K entries
- Jumbo Frame Support
- 2000 bytes
- Features
- Flow control, auto-negotiation, auto-uplink (auto MDI/MDI-X), store and forward, plastic housing, fanless, Back Pressure Support, Green Technology
- Compliant Standards
- IEEE 802.3u, IEEE 802.3i, IEEE 802.3x
- Status Indicators
- Power, link/activity
Expansion / Connectivity
- Interfaces
- 8 x 100Base-TX RJ-45
Power
- Power Device
- External power adapter
- Power Provided
- 5 V - 0.6 A
- Power Consumption Operational
- 2.64 Watt
Miscellaneous
- Compliant Standards
- Plug and Play, RoHS
Dimensions & Weight
- Width
- 12.46 cm
- Depth
- 4.87 cm
- Height
- 2.28 cm
Environmental Parameters
- Min Operating Temperature
- 0 °C
- Max Operating Temperature
- 40 °C
- Humidity Range Operating
- 10 - 90% (non-condensing)
- Min Storage Temperature
- -40 °C
- Max Storage Temperature
- 70 °C
- Humidity Range Storage
- 5 - 90% (non-condensing)
