Description
The TL-SM311 series Fiber Module Cards are introduced for extending transfer distance, attached to the managed/web smart switches. They can extend the distance to several kilometers even tens of kilometers which can basically satisfy the distance requirement of LAN. Users can choose whether and which items to use the fiber modules according to the demand in order to lower cost.
Specifications
Summary
- Product Description

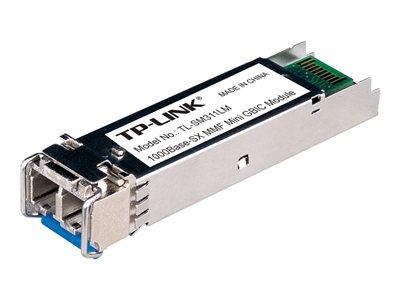

- TP-Link TL-SM311LM - SFP (mini-GBIC) transceiver module - GigE
- Device Type
- SFP (mini-GBIC) transceiver module - LC multi-mode
- Form Factor
- Plug-in module
- Cabling Type
- 1000Base-SX
- Data Transfer Rate
- 1 Gbps
- Optical Wave Length
- 850 nm
- Data Link Protocol
- GigE
- Max Transfer Distance
- 550 m
- Designed For
- P/N: TL-SG3452XP V1
Detailed Specification
General
- Device Type
- SFP (mini-GBIC) transceiver module
- Form Factor
- Plug-in module
Networking
- Connectivity Technology
- Wired
- Cabling Type
- 1000Base-SX
- Data Link Protocol
- GigE
- Data Transfer Rate
- 1 Gbps
- Optical Wave Length
- 850 nm
- Max Transfer Distance
- 550 m
- Status Indicators
- Status
- Features
- Full duplex capability
- Compliant Standards
- IEEE 802.3z
Expansion / Connectivity
- Interfaces
- 1 x Ethernet 1000Base-SX - LC multi-mode x 2
- Compatible Slots
- 1 x SFP (mini-GBIC)
Miscellaneous
- Compliant Standards
- Plug and Play, FCC
Environmental Parameters
- Min Operating Temperature
- 0 °C
- Max Operating Temperature
- 70 °C
- Humidity Range Operating
- 10 - 90%
Compatibility Information
- Designed For
- P/N: TL-SG3452XP V1
