Description
Eliminate weak signal areas with a clearer, stronger whole home Wi-Fi signal generated from Wi-Fi 6. No more searching around for a stable connection.
Faster Connections:
Wi-Fi 6 speeds up to 5,400 Mbps—4,804 Mbps on 5 GHz and 574 Mbps on 2.4 GHz.
Connect More Devices:
OFDMA and MU-MIMO technology quadruple capacity to enable simultaneous transmission to more devices.
Boosted Seamless Coverage:
Achieve seamless whole-home coverage with a clearer and stronger whole-home Wi-Fi signal generated by Wi-Fi 6.
Ultra-Low Latency:
Greater reduction in latency enables more responsive gaming and video chatting.
One Unified Network:
Multiple units form a whole-home network that auto-selects the best connection as you move around your home.
Total Security:
WPA3 encryption and TP-Link HomeShield provide personalized features, including Parental Controls, Antivirus, and Quality of Service (QoS) to ensure a safer online experience.
TP-Link HomeShield:
Keeps your home network safe with cutting-edge features for network and IoT protection
Setup Made Easier Than Ever:
The Deco app walks you through the setup step-by-step.
-
Robust parental controls
Manage content and control when each device can access the internet. -
Built-in antivirus
Protect all connected devices in your home from viruses and malware. -
Assisted setup
Easily set up Decos and find the ideal spot to place each unit. -
Security
Safeguard your home network with a firewall and wireless encryption.
Specifications
Summary
- Product Description

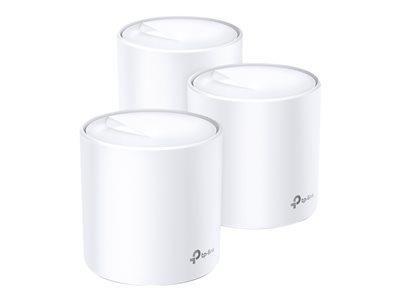

- TP-Link Deco X60 - Wi-Fi system - Wi-Fi 6 - desktop
- Device Type
- Wi-Fi system
- Enclosure Type
- Desktop
- Wi-Fi System Components
- 3 routers
- WAN Ports Qty
- 2
- Data Link Protocol
- Ethernet, Fast Ethernet, Gigabit Ethernet, IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac, IEEE 802.11ax (Wi-Fi 6)
- Frequency Band
- 2.4 GHz / 5 GHz
- Performance
- Maximum data rate (2.4 GHz): 574 Mbps , Maximum data rate (5 GHz): 2402 Mbps
- Network / Transport Protocol
- PPPoE, DHCP
- Routing Protocol
- Static IP routing
- Features
- IPv6 support, parental control, Access Point operational mode, WMM support, QoS, DHCP server, port forwarding, reset button, IPv4 support, SPIF, DHCP client, MU-MIMO technology, anti-virus protection, beamforming technology, band steering, TP-Link Adaptive Routing Technology, guest access, seamless roaming, black list
- Compliant Standards
- IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11k, IEEE 802.11ac, IEEE 802.11r, IEEE 802.11v, IEEE 802.11ax
- Dimensions (WxDxH)
- 11 cm x 11 cm x 11.4 cm
- Weight
- 3.03 kg
- System Requirements
- Android 4.4 (KitKat) or later, Apple iOS 9 or later
- Manufacturer Warranty
- 3-year warranty
Detailed Specification
General
- Device Type
- Wi-Fi system
- Wi-Fi System Components
- 3 routers
- Enclosure Type
- Desktop
- Connectivity Technology
- Wireless, wired
- Data Link Protocol
- Ethernet, Fast Ethernet, Gigabit Ethernet, IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac, IEEE 802.11ax (Wi-Fi 6)
- Frequency Band
- 2.4 GHz / 5 GHz
- Performance
- Maximum data rate (2.4 GHz): 574 Mbps , Maximum data rate (5 GHz): 2402 Mbps
- Network / Transport Protocol
- PPPoE, DHCP
- Routing Protocol
- Static IP routing
- Encryption Algorithm
- WPA-PSK, WPA2-PSK, WPA3
- Wi-Fi Rating
- AX3000
- Features
- IPv6 support, parental control, Access Point operational mode, WMM support, QoS, DHCP server, port forwarding, reset button, IPv4 support, SPIF, DHCP client, MU-MIMO technology, anti-virus protection, beamforming technology, band steering, TP-Link Adaptive Routing Technology, guest access, seamless roaming, black list
- Compliant Standards
- IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11k, IEEE 802.11ac, IEEE 802.11r, IEEE 802.11v, IEEE 802.11ax, VCCI, BSMI, IC, FCC, RoHS, KC, NCC, iDA, RCM, JRF, JPA
- Processor
- Qualcomm 1 GHz
Line Properties
- Line Coding Format
- 1024 QAM, OFDMA
Expansion / Connectivity
- Interfaces
- WAN / LAN: 2 x 1000Base-T - RJ-45
Aerial
- Aerial
- Internal
- Antenna Qty
- 4
Power
- Power Device
- External power adapter
- Installed Qty
- 3
Miscellaneous
- Cables Included
- 1 x network cable
Software / System Requirements
- OS Required
- Android 4.4 (KitKat) or later, Apple iOS 9 or later
Dimensions & Weight
- Width
- 11 cm
- Depth
- 11 cm
- Height
- 11.4 cm
- Weight
- 3.03 kg
Manufacturer Warranty
- Service & Support
- Limited warranty - 3 years
Environmental Parameters
- Min Operating Temperature
- 0 °C
- Max Operating Temperature
- 40 °C
- Humidity Range Operating
- 10 - 90% (non-condensing)
