Description
Archer T4E supports the advanced Wi-Fi standard of IEEE 802.11ac, offering faster transferring rates. You can send emails and browse the web with 2.4 GHz network, while keeping the speedy 5 GHz band free for gaming, HD streaming and other bandwidth intensive applications.
-
Greater coverage with beamforming
Beamforming technology smartly focuses Wi-Fi signals towards connected devices for stable connections and boosted range. -
Ultimate stability
A heat sink helps to dissipate the thermal energy generated by the adapter, which in turn improves stability. Additionally, lower temperatures help to extend the product lifespan. -
External antennas for targeted signal
Two external antennas utilize advanced wireless technology to achieve stable connections and boosted coverage.
Specifications
Summary
- Product Description

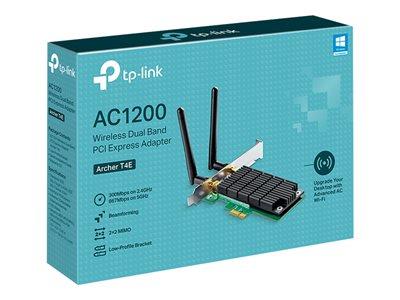

- TP-Link Archer T4E - network adapter - PCIe
- Device Type
- Network adapter
- Form Factor
- Plug-in card - low profile
- Interface (Bus) Type
- PCI Express
- Dimensions (WxDxH)
- 11.52 cm x 12.08 cm x 2.15 cm
- Localisation
- Europe
- Data Link Protocol
- 802.11ac
- Performance
- Maximum data rate (2.4 GHz): 300 Mbps , Maximum data rate (5 GHz): 867 Mbps
- Frequency Band
- 2.4 GHz, 5 GHz
- Compliant Standards
- IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.1x, IEEE 802.11n, IEEE 802.11ac
- System Requirements
- Microsoft Windows XP / 7 / 8 / 8.1 (32/64 bits), Windows 10 (32/64 bits)
Detailed Specification
General
- Device Type
- Network adapter
- Form Factor
- Plug-in card - low profile
- Interface (Bus) Type
- PCI Express
- Localisation
- Europe
Networking
- Connectivity Technology
- Wireless
- Data Link Protocol
- IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac
- Performance
- Maximum data rate (2.4 GHz): 300 Mbps , Maximum data rate (5 GHz): 867 Mbps
- Line Coding Format
- DBPSK, DQPSK, CCK, 64 QAM, 256 QAM, 16 QAM, OFDM
- Frequency Band
- 2.4 GHz, 5 GHz
- Status Indicators
- Status
- Features
- 2T2R MIMO technology, beamforming technology
- Compliant Standards
- IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.1x, IEEE 802.11n, IEEE 802.11ac
Aerial
- Antenna
- External detachable
- Antenna Qty
- 2
Expansion / Connectivity
- Interfaces
- 2 x aerial
Miscellaneous
- Included Accessories
- Low-profile bracket
- Encryption Algorithm
- 128-bit WEP, 64-bit WEP, WPA, WPA2, WPA-PSK, WPA2-PSK
- Compliant Standards
- FCC, RoHS
Software / System Requirements
- Software Included
- Drivers & Utilities
- OS Required
- Microsoft Windows XP / 7 / 8 / 8.1 (32/64 bits), Windows 10 (32/64 bits)
Dimensions & Weight
- Width
- 11.52 cm
- Depth
- 12.08 cm
- Height
- 2.15 cm
Environmental Parameters
- Min Operating Temperature
- 0 °C
- Max Operating Temperature
- 40 °C
- Humidity Range Operating
- 10 - 90% (non-condensing)
