Description
Omada's Software Defined Networking (SDN) platform integrates network devices, including access points, switches, and gateways, providing 100% centralized cloud management. Omada creates a highly scalable network - all controlled from a single interface. Seamless wireless and wired connections are provided, ideal for use in hospitality, education, retail, offices, and more.
-
Fast dual-band Wi-Fi
Simultaneous 450 Mbps on 2.4 GHz and 1300 Mbps on 5 GHz totals 1750 Mbps Wi-Fi speeds. -
High-density connectivity
MU-MIMO, Load Balance, and professional antennas improve capacity in high-density environments to connect more devices simultaneously. -
Integrated into Omada SDN
Zero-Touch Provisioning (ZTP), Centralized Cloud Management, and Intelligent Monitoring. -
Centralized management
Cloud access and Omada app for ultra convenience and easy management. -
Seamless roaming
Even video streams and voice calls are unaffected as users move between locations. -
PoE support
Support both standard 802.3af/at and Passive PoE (PoE adapter included) for flexible installations. -
Secure guest network
Along with multiple authentication options (SMS/Facebook Wi-Fi/Voucher, etc.) and abundant wireless security technologies.
Specifications
Summary
- Product Description

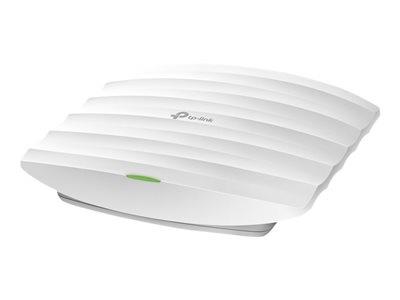

- TP-Link EAP265 HD AC1750 Wireless MU-MIMO Gigabit Ceiling Mount Access Point - radio access point - Wi-Fi 5
- Device Type
- Radio access point
- Form Factor
- Wall / ceiling mountable
- Data Link Protocol
- IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac
- Frequency Band
- 2.4 GHz, 5 GHz
- Capacity
- SSIDs total: 16
- Included Accessories
- Wall mounting kit, ceiling mounting kit, Gigabit Passive PoE Adapter
- OS Required
- Linux, Microsoft Windows XP / Vista / 7 / 8 / 10
- Power Over Ethernet (PoE) Supported
- PoE
- Dimensions (WxDxH)
- 20.55 cm x 18.15 cm x 3.71 cm
Detailed Specification
General
- Device Type
- Radio access point
- Width
- 20.55 cm
- Depth
- 18.15 cm
- Height
- 3.71 cm
Networking
- Form Factor
- Wall / ceiling mountable
- Connectivity Technology
- Wireless
- Data Transfer Rate
- 1750 Mbps
- Data Link Protocol
- IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac
- Remote Management Protocol
- SNMP 1, SNMP 2c, HTTP, HTTPS
- Frequency Band
- 2.4 GHz, 5 GHz
- Capacity
- SSIDs total: 16
- Wi-Fi Rating
- AC1750
- Features
- Manageable, E-mail alert, MAC address filtering, Wi-Fi Multimedia (WMM) support, Quality of Service (QoS), reset button, rogue access point detection, Captive Portal, security lock slot (cable lock sold separately), Transmit Power Control (TPC), MU-MIMO technology, beamforming technology, passive PoE supported, band steering, SSID to VLAN mapping, rate limit, Wireless Scheduler, seamless roaming, Airtime Fairness, schedule reboot, load balance network mode
- Encryption Algorithm
- 128-bit WEP, 64-bit WEP, 152-bit WEP, WPA, WPA-PSK, WPA2-PSK, WPA2-Enterprise
- Authentication Method
- Secure Shell (SSH)
- Compliant Standards
- IEEE 802.11b, IEEE 802.11a, IEEE 802.3af, IEEE 802.11g, IEEE 802.1x, IEEE 802.11n, IEEE 802.3at, IEEE 802.11ac
Aerial
- Antenna
- Internal
- Directivity
- Omni-directional
Expansion / Connectivity
- Interfaces
- 1 x 1000Base-T (PoE) - RJ-45 , 1 x 1000Base-T - RJ-45
Miscellaneous
- Included Accessories
- Wall mounting kit, ceiling mounting kit, Gigabit Passive PoE Adapter
- Compliant Standards
- FCC, RoHS
Power
- Power Over Ethernet (PoE) Supported
- PoE
- Power Consumption Operational
- 12.3 Watt
Software / System Requirements
- OS Required
- Linux, Microsoft Windows XP / Vista / 7 / 8 / 10
Environmental Parameters
- Min Operating Temperature
- 0 °C
- Max Operating Temperature
- 40 °C
- Humidity Range Operating
- 10 - 90% (non-condensing)
