Description
The 802.11ac Wi-Fi combined with advanced 3x3 MIMO technology ensures the EAP245 superior Wi-Fi speeds and coverage.
-
Flexible deployment
The EAP's low-profile design and easy mount chassis make it easy to install on any wall or ceiling surface and allow it to blend in with most interior decorating styles. EAP devices also support PoE, making deployment effortless and flexible. -
Wi-Fi for multi-user business environment
The business-grade 11ac Wi-Fi solution is engineered to handle heavy multi-user usage in large areas without encountering the same stability issues found with standard routers and access points purposed for home use. It's the perfect fit for motels, salons, chain-stores, schools, and restaurants.
Specifications
Summary
- Product Description

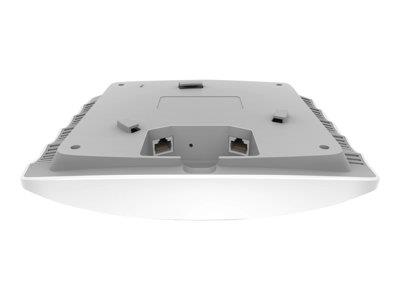

- TP-Link Omada EAP245 - radio access point - Wi-Fi 5
- Device Type
- Radio access point
- Form Factor
- External
- Data Link Protocol
- IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac
- Frequency Band
- 2.4 GHz, 5 GHz
- Capacity
- Maximum number of configured SSIDs (2.4 Ghz): 8 , Maximum number of configured SSIDs (5 Ghz): 8
- Included Accessories
- Wall mounting kit, ceiling mounting kit
- OS Required
- Microsoft Windows XP / Vista / 7 / 8 / 10
- Power Over Ethernet (PoE) Supported
- PoE+
- Dimensions (WxDxH)
- 18 cm x 18 cm x 4.75 cm
- Manufacturer Warranty
- Limited lifetime warranty
Detailed Specification
General
- Device Type
- Radio access point
- Width
- 18 cm
- Depth
- 18 cm
- Height
- 4.75 cm
Networking
- Form Factor
- External
- Connectivity Technology
- Wireless
- Data Transfer Rate
- 1750 Mbps
- Data Link Protocol
- IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac
- Remote Management Protocol
- SNMP 1, Telnet, SNMP 2c, HTTP, HTTPS, CLI
- Frequency Band
- 2.4 GHz, 5 GHz
- Capacity
- Maximum number of configured SSIDs (2.4 Ghz): 8 , Maximum number of configured SSIDs (5 Ghz): 8
- Features
- Load balancing, VLAN support, Syslog support, manageable, E-mail alert, MAC address filtering, wall mountable, Wi-Fi Multimedia (WMM) support, Quality of Service (QoS), Multiple SSID support, reset button, ceiling mountable, security lock slot (cable lock sold separately)
- Encryption Algorithm
- 128-bit WEP, 64-bit WEP, 152-bit WEP, WPA, WPA-PSK, WPA2-PSK, WPA2-Enterprise
- Authentication Method
- RADIUS
- Compliant Standards
- IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.1x, IEEE 802.11n, IEEE 802.3at
Aerial
- Antenna
- Internal
- Antenna Qty
- 6
- Directivity
- Omni-directional
- Gain Level
- 4 dBi
Expansion / Connectivity
- Interfaces
- 1 x 1000Base-T (PoE+) - RJ-45
Miscellaneous
- Included Accessories
- Wall mounting kit, ceiling mounting kit
- Compliant Standards
- UL, FCC, RoHS
Power
- Power Over Ethernet (PoE) Supported
- PoE+
- Power Device
- External power adapter
- Power Consumption Operational
- 12.7 Watt
Software / System Requirements
- Software Included
- Drivers & Utilities
- OS Required
- Microsoft Windows XP / Vista / 7 / 8 / 10
Manufacturer Warranty
- Service & Support
- Limited warranty - lifetime
Environmental Parameters
- Min Operating Temperature
- 0 °C
- Max Operating Temperature
- 40 °C
- Humidity Range Operating
- 10 - 90% (non-condensing)
