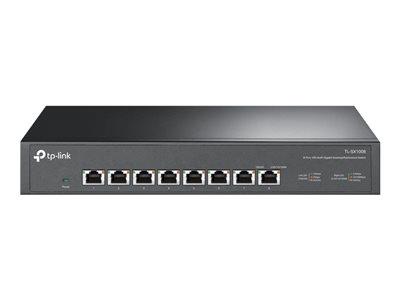

Description
TP-Link's TL-SX1008 is a 10G unmanaged switch with eight 10GE ports, aiming to provide powerful and lightning-fast wired connections. Auto-negotiation five-speed (100Mbps/1G/2.5G/5G/10G) connections sense the link speeds and intelligently adjust for compatibility and optimal performance for all the devices, including 10G NAS, 10G server, workstation, 10G PCIe adapter/NIC, gaming computer, 2.5G/5G/10G Wi-Fi 6 AP, 8K video, desktop, and more. The intelligent fan speed adjustment of TL-SX1008 ensures quiet operation, ideal for any home or business. Besides, reliable connections and the lowest possible latency make it ideal for business and home offices, LAN parties, home entertainment, workstations, gaming, and more.
-
Lightning-fast connections
Up to 160 Gbps of switching capacity. Provides lightning-fast connections to 10G NAS, Server, 10G PCIe Adapter/NIC, gaming computer, 2.5G/5G/10G Wi-Fi 6 AP, 8K video, and more. -
Optimal five-speed connections
Auto-negotiation for five-speed (100Mbps/1G/2.5G/5G/10G) connections to provide optimal performance. -
Ideal for various scenarios
Built for lightning-fast connections in business and home offices, workstations, LAN parties, and home entertainment. -
Plug-and-Play deployment
Easy deployment without the need for a technician. -
Quiet operation
The intelligent fan speed adjustment of TL-SX1008 ensures quiet operation, ideal for any home or business.
Specifications
Summary
- Product Description
- TP-Link TL-SX1008 V1 - switch - 8 ports - rack-mountable
- Device Type
- Switch - 8 ports
- Enclosure Type
- Rack-mountable
- Subtype
- Gigabit Ethernet
- Performance
- Bandwidth: 160 Gbps , Packet buffer size: 2 Mbps , Packet transfer capability: 119 Mpps
- Capacity
- MAC addresses: 32000 , Jumbo frame size: 10
- Features
- Flow control, auto-negotiation, auto-uplink (auto MDI/MDI-X), store and forward, DSCP based QoS
- Compliant Standards
- IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ap, IEEE 802.3bz
- Power
- (50/60 Hz)
- Dimensions (WxDxH)
- 29.4 cm x 18 cm x 4.4 cm
Detailed Specification
General
- Device Type
- Switch - 8 ports
- Enclosure Type
- Desktop, rack-mountable
- Subtype
- Gigabit Ethernet
- Performance
- Bandwidth: 160 Gbps , Packet buffer size: 2 Mbps , Packet transfer capability: 119 Mpps
- Capacity
- MAC addresses: 32000 , Jumbo frame size: 10
- Features
- Flow control, auto-negotiation, auto-uplink (auto MDI/MDI-X), store and forward, DSCP based QoS
- Compliant Standards
- IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ap, IEEE 802.3bz
- Status Indicators
- Port status, system, link/activity
Expansion / Connectivity
- Interfaces
- 8 x 1000Base-T RJ-45
Power
- Power Device
- External power adapter
- Power Provided
- AC 100-240 V - 0.8 A
- Voltage Required
- (50/60 Hz)
- Power Consumption Operational
- 31.2 Watt
Miscellaneous
- Included Accessories
- Rubber feet
- Compliant Standards
- Plug and Play, FCC, RoHS
Dimensions & Weight
- Width
- 29.4 cm
- Depth
- 18 cm
- Height
- 4.4 cm
Environmental Parameters
- Min Operating Temperature
- 0 °C
- Max Operating Temperature
- 50 °C
- Humidity Range Operating
- 10 - 90% (non-condensing)
- Min Storage Temperature
- -40 °C
- Max Storage Temperature
- 70 °C
- Humidity Range Storage
- 5 - 90% (non-condensing)
