Description

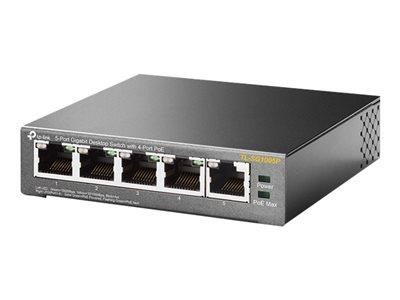

TL-SG1005P is a 5 10/100/1000Mbps ports unmanaged switch that requires no configuration and provides 4 PoE (Power over Ethernet) ports. It can automatically detect and supply power with all IEEE 802.3af compliant powered devices. In this situation, the electrical power is transmitted along with data in one single cable allowing you to expand your network to where there are no power lines or outlets, where you wish to fix devices.
-
Overload arrangement
TL-SG1005P has the priority function which will help protect the system when the system power is overloaded. -
Port priority function
This function will help to ensure the normal operation of the system. -
Easy to use
TL-SG1005P is easy to install and use. It requires no configuration and installation. With desktop design, outstanding performance and quality, the TP-Link's TL-SG1005P 5switch is an ideal choice for expanding your home or office network.
Specifications
Summary
- Product Description
- TP-Link TL-SG1005P - switch - 5 ports - unmanaged
- Device Type
- Switch - 5 ports - unmanaged
- Subtype
- Gigabit Ethernet
- Ports
- 4 x 10/100/1000 (PoE) + 1 x 10/100/1000
- Power Over Ethernet (PoE)
- PoE
- PoE Budget
- 56 W
- Performance
- Switching capacity: 10 Gbps
- MAC Address Table Size
- 2K entries
- Features
- Flow control, full duplex capability, PoE, auto-negotiation, auto-uplink (auto MDI/MDI-X), store and forward, fanless
- Compliant Standards
- IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3x
- Dimensions (WxDxH)
- 9.98 cm x 9.8 cm x 2.5 cm
- Manufacturer Warranty
- 2-year warranty
Detailed Specification
General
- Device Type
- Switch - 5 ports - unmanaged
- Enclosure Type
- Desktop
- Subtype
- Gigabit Ethernet
- Ports
- 4 x 10/100/1000 (PoE) + 1 x 10/100/1000
- Power Over Ethernet (PoE)
- PoE
- PoE Budget
- 56 W
- Performance
- Switching capacity: 10 Gbps
- MAC Address Table Size
- 2K entries
- Features
- Flow control, full duplex capability, PoE, auto-negotiation, auto-uplink (auto MDI/MDI-X), store and forward, fanless
- Compliant Standards
- IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3x
- Status Indicators
- Power, link/activity
Expansion / Connectivity
- Interfaces
- 1 x 1000Base-T RJ-45 , 4 x 1000Base-T RJ-45 PoE
Power
- Power Device
- External power adapter
Miscellaneous
- Compliant Standards
- FCC, RoHS
Dimensions & Weight
- Width
- 9.98 cm
- Depth
- 9.8 cm
- Height
- 2.5 cm
Manufacturer Warranty
- Service & Support
- Limited warranty - parts and labour - 2 years
Environmental Parameters
- Min Operating Temperature
- 0 °C
- Max Operating Temperature
- 40 °C
- Humidity Range Operating
- 10 - 90% (non-condensing)
- Min Storage Temperature
- -40 °C
- Max Storage Temperature
- 70 °C
- Humidity Range Storage
- 5 - 90% (non-condensing)
