Description

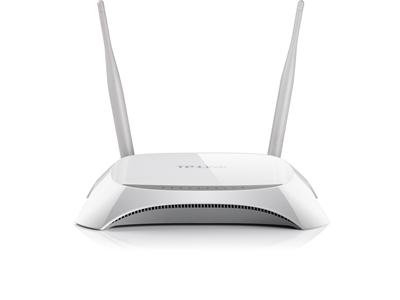

Share the freedom of 3G/4G! The TL-MR3420 3G/4G Wireless N Router allows users to share a 3G/4G mobile broadband connection with family and friends via wired or wireless connections. By connecting a 3G/4G USB modem to the routers, a Wi-Fi hotspot is instantly established, via which multiple devices can access the Internet and share data and applications wirelessly.
Enjoy 3G/4G Wireless Sharing
TL-MR3420 features blazing 4G speeds and backward compatible with 3G modems, allowing users to share a 3G/4G mobile broadband with family and friends via wired or wireless connection.
Tests in the Field-High Compatibility
Compatibility is the most important aspect to consider when you're selecting a 3G/4G router. To ensure the best compatibility between our routers and the modem you would use with the router, TP-LINK has made certain that our 3G/4G Routers are compatible with the ISPs in the regions in which they are sold. We have teams around the globe continually testing our Routers with newly emerged modems to ensure that end users can feel confident that their routers will operate flawlessly where they live and work.
Comprehensive 3G/4G and WAN Connection Backup Strategy
The TL-MR3420 stands out with its 3G/ 4G and WAN connection back-up, which keeps users online when one connection fails. TP-LINK's 3G/4G Router provides users with both 3G/4G Preferred and WAN Preferred back-up modes, while other brands provide one or the other. This brings users a high degree of flexibility when users are setting up the networks with considering connection costs and length of downtime.
Wireless N Speed & Range
Complying with the IEEE 802.11n standard, the TL-MR3420 can establish a wireless network with transmission speeds of up to 300Mbps, while mitigating data loss over long distances and through obstacles in a small office or a large apartment, even in a steel-and-concrete building. Above all, users can easily pick up their wireless network's signal at longer distances from the router, where with legacy 11g products they would have to be much closer.
WPA / WPA2 Encryptions -Advanced Security
In order to safeguard user`s Wi-Fi networks, WEP encryption is no longer strong enough. The TL-MR3420 provides WPA/WPA2 encryptions (Both Personal and Enterprise),created by the WI-FI Alliance, promoting interpretabilities and security for WLAN, to protect against almost any threat that the Internet or intruders may harbor.
* All above information apply to TL-MR3420 version 2.0 ONLY.*
-
3G on-the-go
TP-Link's TL-MR3420 3G/3.75G Wireless N Router allows you to quickly set up a 300Mbps wireless network on-the go and share a 3G/3.75G mobile connection. By connecting a UMTS/HSPA/EVDO USB card to the router, a Wi-Fi hotspot is instantly established allowing users to share an Internet connection anywhere 3G/3.75G coverage is available. So whether you're on the train, camping, or at a construction site, you'll have a reliable wireless connection to accommodate your networking needs. -
Always connected
Nothing is more frustrating than losing your Internet connection in the middle of your work. To avoid such interruptions and provide customers with an always-online connection, TP-Link is introducing the TL-MR3420, a robust 3G/3.75G wireless N router with true 3G/WAN failover capability. You can set a primary link, 3G/3.75G or WAN (xDSL/cable). TL-MR3420 switches to the secondary link when your primary service is interrupted. Once the service is restored, the router will automatically failback to the primary link - keeping your business online with the minimal interruption to users.
Specifications
Summary
- Product Description
- TP-Link TL-MR3420-V1 - wireless router - 802.11b/g/n - desktop
- Device Type
- Wireless router - 4-port switch (integrated)
- Enclosure Type
- Desktop
- WAN Ports Qty
- 1
- Data Link Protocol
- Ethernet, Fast Ethernet, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
- Frequency Band
- 2.4 GHz
- Data Transfer Rate
- 300 Mbps
- Network / Transport Protocol
- TCP/IP, ICMP/IP, PPPoE
- Routing Protocol
- Static IP routing
- Remote Management Protocol
- HTTP
- Features
- Firewall protection, DMZ port, NAT support, auto-uplink (auto MDI/MDI-X), dynamic DNS server, MAC address filtering, VPN passthrough, URL filtering, IP address filtering, MIMO technology, virtual server support, DHCP server
- Compliant Standards
- IEEE 802.11b, IEEE 802.11g, IEEE 802.1x, IEEE 802.11n
- Dimensions (WxDxH)
- 17.4 cm x 11.1 cm x 3 cm
Detailed Specification
General
- Device Type
- Wireless router - 4-port switch (integrated)
- Enclosure Type
- Desktop
- Connectivity Technology
- Wireless, wired
- Data Link Protocol
- Ethernet, Fast Ethernet, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
- Frequency Band
- 2.4 GHz
- Data Transfer Rate
- 300 Mbps
- Network / Transport Protocol
- TCP/IP, ICMP/IP, PPPoE
- Routing Protocol
- Static IP routing
- Remote Management Protocol
- HTTP
- Encryption Algorithm
- 128-bit WEP, 64-bit WEP, 152-bit WEP, WPA, WPA2, WPA-PSK, WPA2-PSK
- Features
- Firewall protection, DMZ port, NAT support, auto-uplink (auto MDI/MDI-X), dynamic DNS server, MAC address filtering, VPN passthrough, URL filtering, IP address filtering, MIMO technology, virtual server support, DHCP server
- Compliant Standards
- IEEE 802.11b, IEEE 802.11g, IEEE 802.1x, IEEE 802.11n
Line Properties
- Line Coding Format
- DBPSK, DQPSK, CCK, 64 QAM, 16 QAM, OFDM
Expansion / Connectivity
- Interfaces
- LAN: 4 x 10Base-T/100Base-TX - RJ-45 , WAN: 1 x 10Base-T/100Base-TX - RJ-45 , USB 2.0: 1 x
Aerial
- Aerial
- External detachable
- Antenna Qty
- 2
- Directivity
- Omni-directional
- Gain Level
- 3 dBi
Power
- Power Device
- External power adapter
Software / System Requirements
- Software Included
- Drivers & Utilities
Dimensions & Weight
- Width
- 17.4 cm
- Depth
- 11.1 cm
- Height
- 3 cm
Environmental Parameters
- Min Operating Temperature
- 0 °C
- Max Operating Temperature
- 40 °C
- Humidity Range Operating
- 10 - 90%
