Description
TL-SG1218MPE complies with the 802.3af/at PoE+ standard, supporting up to 30W power supply on each PoE port. The total high PoE power budget is up to 192W for the 16 PoE ports, making it ideal for small to medium business surveillance systems.
When total power consumption excels 192W, the intelligent power management will cut the lower priority port power off to ensure the high priority port's power supply and protect the device from power overload operation.
TL-SG1218MPE offers network monitoring for users to observe traffic behavior. Through its web-based user interface and management utility, the TL-SG1218MPE offers a variety of useful features, including network monitoring, traffic prioritization, and enhanced QoS.
-
Ideal for surveillance
TL-SG1218MPE complies with the 802.3af/at PoE+ standard, supporting up to 30W power supply on each PoE port. The total high PoE power budget is up to 192W for the 16 PoE ports, making it ideal for small to medium business surveillance systems. -
Intelligent power management
When total power consumption excels 192W, the intelligent power management will cut the lower priority port power off to ensure the high priority port's power supply and protect the device from power overload operation. -
Making management easy
TL-SG1218MPE offers network monitoring for users to observe traffic behavior. Through its web-based user interface and management utility, the TL-SG1218MPE offers a variety of useful features, including network monitoring, traffic prioritization, and enhanced QoS.
Specifications
Summary
- Product Description

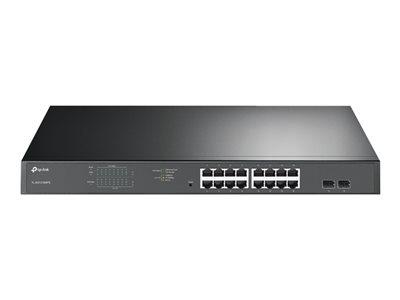

- TP-Link JetStream TL-SG1218MPE - switch - 16 ports - smart - rack-mountable
- Device Type
- Switch - 16 ports - smart
- Enclosure Type
- Rack-mountable 1U
- Subtype
- Gigabit Ethernet
- Ports
- 16 x 10/100/1000 (PoE+) + 2 x Gigabit SFP
- Power Over Ethernet (PoE)
- PoE+
- PoE Budget
- 192 W
- Performance
- Switching capacity: 36 Gbps , Forwarding performance: 23.8 Mpps
- MAC Address Table Size
- 8K entries
- Jumbo Frame Support
- 9KB
- Features
- Auto-negotiation, auto-uplink (auto MDI/MDI-X), IGMP snooping, port mirroring, store and forward, QoS
- Compliant Standards
- IEEE 802.3, IEEE 802.3u, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3x, IEEE 801.1p, IEEE 802.3at
- Power
- AC 100 - 240 V (50/60 Hz)
- Dimensions (WxDxH)
- 44 cm x 18 cm x 4.4 cm
Detailed Specification
General
- Device Type
- Switch - 16 ports - smart
- Enclosure Type
- Rack-mountable 1U
- Subtype
- Gigabit Ethernet
- Ports
- 16 x 10/100/1000 (PoE+) + 2 x Gigabit SFP
- Power Over Ethernet (PoE)
- PoE+
- PoE Budget
- 192 W
- Performance
- Switching capacity: 36 Gbps , Forwarding performance: 23.8 Mpps
- MAC Address Table Size
- 8K entries
- Jumbo Frame Support
- 9KB
- Features
- Auto-negotiation, auto-uplink (auto MDI/MDI-X), IGMP snooping, port mirroring, store and forward, QoS
- Compliant Standards
- IEEE 802.3, IEEE 802.3u, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3x, IEEE 801.1p, IEEE 802.3at
Expansion / Connectivity
- Interfaces
- 16 x 1000Base-T RJ-45 PoE+ - 30 W , 2 x 1000Base-X SFP
Power
- Power Device
- Internal power supply
- Voltage Required
- AC 100 - 240 V (50/60 Hz)
Miscellaneous
- Included Accessories
- Rubber feet
- Rack Mounting Kit
- Included
- Compliant Standards
- FCC, RoHS
Dimensions & Weight
- Width
- 44 cm
- Depth
- 18 cm
- Height
- 4.4 cm
Environmental Parameters
- Min Operating Temperature
- 0 °C
- Max Operating Temperature
- 50 °C
- Humidity Range Operating
- 10 - 90% (non-condensing)
- Min Storage Temperature
- -40 °C
- Max Storage Temperature
- 70 °C
- Humidity Range Storage
- 5 - 90% (non-condensing)
