Description

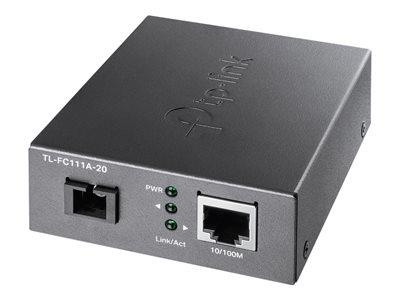

TL-FC111A-20 is a 100M media converter, providing a 100M RJ-45 port and a 100M SC fiber port, which can convert between electrical and optical signals. And long-distance data transmission through optical fiber can be applied to commercial scenarios such as park security monitoring and wireless networking.
TL-FC111A-20 adopts WDM (wavelength division multiplexing) technology, helping send and receive data at a distance of up to 20 km (12.4 miles) over only one fiber, which saves half of the cable deployment cost for customers. TL-FC111A-20 transmits data at 1550 nm wavelength and receives data at 1310 nm wavelength on optical fiber. The TL-FC111A-20 works in the other end as a pair by receiving data at wavelength 1550 nm and sending data at wavelength 1310 nm.
-
Versatile connectivity options
Equipped with RJ-45 and SC/UPC single-mode connectors, this media converter supports various networking configurations, enhancing installation flexibility. -
High-performance transmission
Designed for a maximum transfer distance of 20 km, the device ensures reliable and efficient data flow, making it suitable for broader network ranges. -
Durable environmental resistance
With an operational temperature range of 0°C to 50°C and a humidity range of 10 - 90% (non-condensing), this converter performs in diverse environmental conditions. -
Advanced networking features
Featuring flow control, full duplex, half duplex, and auto-negotiation capabilities, the device optimizes performance for various data transmission needs. -
Compliance and reliability
This product conforms to standards such as FCC, RoHS, and TIA/EIA-568, ensuring reliability and safety in networking applications.
Specifications
Summary
- Product Description
- TP-Link TL-FC111A-20 - fibre media converter - 10Mb LAN, 100Mb LAN
- Device Type
- Fibre media converter - SC/UPC single-mode / RJ-45
- Form Factor
- External
- Cabling Type
- 10Base-T, 100Base-TX, WDM
- Optical Wave Length
- 1550 (TX) / 1310 (RX) nm
- Data Link Protocol
- 10Mb LAN, 100Mb LAN
- Max Transfer Distance
- 20 km
- Dimensions (WxDxH)
- 9.45 cm x 7.3 cm x 2.7 cm
- Designed For
- JetStream TL-SG3452XP V1
Detailed Specification
General
- Device Type
- Fibre media converter
- Form Factor
- External
Networking
- Connectivity Technology
- Wired
- Cabling Type
- 10Base-T, 100Base-TX, WDM
- Data Link Protocol
- 10Mb LAN, 100Mb LAN
- Optical Wave Length
- 1550 (TX) / 1310 (RX) nm
- Max Transfer Distance
- 20 km
- Status Indicators
- Power, link/activity
- Features
- Flow control, auto-negotiation, half duplex mode, full duplex mode, bidirectional
- Compliant Standards
- IEEE 802.3, IEEE 802.3u, IEEE 802.3i, IEEE 802.3x
Expansion / Connectivity
- Interfaces
- 1 x WDM - SC/UPC single-mode female , 1 x Ethernet 10Base-T/100Base-TX - RJ-45 female
Miscellaneous
- Compliant Standards
- FCC, RoHS, TIA/EIA-568
Power
- Power Device
- External power adapter
Dimensions & Weight
- Width
- 9.45 cm
- Depth
- 7.3 cm
- Height
- 2.7 cm
Environmental Parameters
- Min Operating Temperature
- 0 °C
- Max Operating Temperature
- 50 °C
- Humidity Range Operating
- 10 - 90% (non-condensing)
Compatibility Information
- Designed For
- TP-Link JetStream TL-SG3452XP V1
