Description

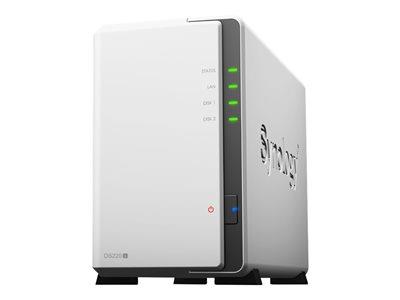

Synology DiskStation DS220j is an entry-level network-attached storage for your household to store and share photos, videos, documents, and all types of personal data. The two-bay private cloud solution provides complete and intuitive data protection approaches for you to easily back up computer data and mobile photos, with just a few clicks.
Specifications
Summary
- Product Description
- Synology Disk Station DS220j - NAS server
- Device Type
- NAS server
- Host Connectivity
- Gigabit Ethernet
- Installed Devices / Modules Qty
- 0 (installed) / 2 (max)
- Dimensions (WxDxH)
- 10 cm x 22.55 cm x 16.5 cm
- Weight
- 880 g ()
- Processor
- 1 x Realtek Semiconductor RTD1296 1.4 GHz (Quad-Core)
- Storage Controller
- RAID SATA 6Gb/s RAID 0, 1, JBOD
- Networking
- 10Mb LAN, 100Mb LAN, 1GbE
- IP Cameras Supported
- 12
- RAM
- 512 MB
- Power
- AC 120/230 V (50/60 Hz)
- Manufacturer Warranty
- 2-year warranty
Detailed Specification
General
- Device Type
- NAS server
- Host Connectivity
- Gigabit Ethernet
- Total Storage Capacity
- 0 GB
- Installed Devices / Modules Qty
- 0 (installed) / 2 (max)
- Width
- 10 cm
- Depth
- 22.55 cm
- Height
- 16.5 cm
- Weight
- 880 g ()
Processor / Memory
- Processors Installed
- 1 x Realtek Semiconductor RTD1296 1.4 GHz
- Number of Cores
- Quad-Core
- Max Supported Qty
- 1
- RAM
- 512 MB DDR4
Storage Controller
- Type
- RAID
- Interface Type
- SATA 6Gb/s
- RAID Level
- RAID 0, RAID 1, JBOD
Networking
- Data Link Protocol
- 10Mb LAN, 100Mb LAN, 1GbE
- Network / Transport Protocol
- PPTP, L2TP, IPSec, iSCSI, FTP, SMB, NFS, SFTP
- Remote Management Protocol
- SNMP, Telnet, HTTP, HTTPS, SSH
- Network Services Compatibility
- Microsoft Active Directory (AD), Network File System (NFS), FTP, Server Message Block (SMB), Apple File Protocol (AFP), Web-based Distributed Authoring and Versioning (WebDAV), Calendaring Extensions to WebDAV (CalDAV)
- Features
- Firewall protection, Access Control List (ACL) support, iTunes server, FTP server, reset button, PXE support, DNS server, VPN Server
- Encryption Algorithm
- SSL, TLS
- Compliant Standards
- DLNA CERTIFIED
Security DVR
- IP Cameras Supported
- 12
- Compression Format
- H.264
Expansion / Connectivity
- Expansion Bays
- 2 (total) / 2 (free) x internal - 2.5" / 3.5"
- Interfaces
- 2 x USB 3.0 - Type A , 1 x Ethernet 1000Base-T - RJ-45
Miscellaneous
- Cables Included
- 1 x network cable
- Features
- Security lock slot (cable lock sold separately), wake on LAN, built-in cooling fan, hardware encryption, Hybrid RAID, VPN support
- Security Slot Type
- Kensington security slot
- Compliant Standards
- RoHS
Power
- Power Device
- External power adapter
- Voltage Required
- AC 120/230 V (50/60 Hz)
Manufacturer Warranty
- Service & Support
- Limited warranty - 2 years
Environmental Parameters
- Min Operating Temperature
- 0 °C
- Max Operating Temperature
- 40 °C
- Humidity Range Operating
- 5 - 95%
