Description

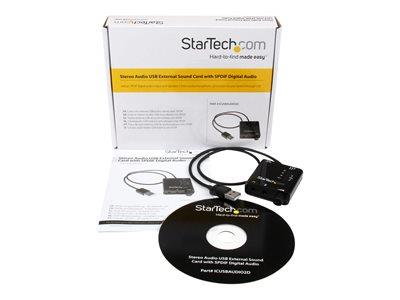

Add an SPDIF digital audio output and standard 3.5mm audio/microphone connections to your system through USB. The ICUSBAUDIO2D External USB Sound Card lets you add an S/PDIF digital audio output and standard 3.5mm analog audio/microphone connections to your system through USB - a convenient way to bypass or replace an internal sound card without having to open the computer case.
For home-theater quality sound, the USB DAC (digital-to-analog converter) offers 96KHz / 24-bit sampling rates for both playback and recording, and a 3.5mm S/PDIF port with support for Dolby Digital 5.1 surround sound (AC3) and DTS pass-through (5.1 surround sound is supported in Windows only).
This versatile USB audio adapter features an integrated 3.5mm 4-position TRRS connection for your headphones or combination headset/microphone. Also a convenient external volume control for quick adjustments, a hardware EQ switch for Bass or Treble boosting, and an LED status bar to display the current sampling rate.
-
Enhanced audio quality
With a DAC resolution of 24-bit and a max sampling rate of 96 kHz, this external sound card delivers high-fidelity audio, ensuring every detail is heard with clarity. -
Versatile connectivity
Equipped with multiple connector types including mini-phone stereo 3.5 mm for headphones and microphone, and mini TOSLINK for SPDIF output, this sound card offers flexible connection options for a variety of audio setups. -
Broad compatibility
Designed to work seamlessly with both Mac and PC, this sound card provides a simple solution for enhancing your computer's audio capabilities without the need for internal hardware modifications.
Specifications
Summary
- Product Description
- StarTech.com USB Sound Card w/ SPDIF Digital Audio & Stereo Mic - External Sound Card for Laptop or PC - SPDIF Output (ICUSBAUDIO2D) - sound card
- Device Type
- Sound card
- Enclosure Type
- External
- Interface Type
- USB 2.0
- Dimensions (WxDxH)
- 4.6 cm x 4.7 cm x 1.6 cm
- Weight
- 36 g
- Colour
- Black
- Sound Output Mode
- Stereo
- DAC Resolution
- 24-bit
- Sample Rate
- 96 kHz (max)
- System Requirements
- Linux, Apple MacOS X 10.x or later, Microsoft Windows Server 2008 R2, Microsoft Windows Vista (32/64 bits), Microsoft Windows 7 (32/64 bits), Windows 8 (32/64 bits), Windows 10 (32/64 bits)
- Manufacturer Warranty
- 2-year warranty
- Designed For
- P/N: MU15MMS, MU6MMS
Detailed Specification
General
- Device Type
- Sound card
- Form Factor
- External
- Interface Type
- USB 2.0
- Width
- 4.6 cm
- Depth
- 4.7 cm
- Height
- 1.6 cm
- Weight
- 36 g
- Enclosure Colour
- Black
Audio Output
- Sound Output Mode
- Stereo
- DAC Resolution
- 24-bit
- Sample Rate
- 96 kHz (max)
Expansion / Connectivity
- Interfaces
- 1 x headphones - mini-phone stereo 3.5 mm , 1 x microphone - mini-phone stereo 3.5 mm , 1 x SPDIF output - mini TOSLINK
Miscellaneous
- Compliant Standards
- FCC, RoHS
Software / System Requirements
- Software
- Drivers & Utilities
- OS Required
- Linux, Apple MacOS X 10.x or later, Microsoft Windows Server 2008 R2, Microsoft Windows Vista (32/64 bits), Microsoft Windows 7 (32/64 bits), Windows 8 (32/64 bits), Windows 10 (32/64 bits)
Manufacturer Warranty
- Service & Support
- Limited warranty - 2 years , Technical support - lifetime
Environmental Parameters
- Min Operating Temperature
- 0 °C
- Max Operating Temperature
- 60 °C
- Humidity Range Operating
- 10 - 90% (non-condensing)
Compatibility Information
- Designed For
- P/N: MU15MMS, MU6MMS
