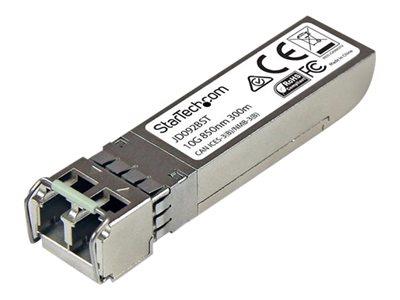

Name: StarTech.com SFP+ - HP JD092B Compatible
Price: 132.79 GBP
Availability: InStock
Rating: 0.0 (0 reviews)

Description

Don’t know what you need? Find it with the StarTech.com ConXit Connection Wizard

Ensure reliable, cost-efficient 10Gb Ethernet connections over multimode fiber with this Mini-GBIC module. This HP compatible 10 Gigabit fiber SFP+ is engineered by StarTech.com to deliver what you want most in your network connections: reliability. Built to exacting specifications and fully tested to ensure maximum performance, this high-quality fiber transceiver module can be installed into HP networking devices that support the JD092B transceiver module, as well as other major brands of networking equipment.

This 10GBase-SR SFP+ delivers 10 Gigabit connectivity over multimode fiber cable, with a range of up to 300 m (984 ft). It provides a dependable and cost-effective way to add, replace or upgrade the ports on your networking equipment.

This 10 GbE SFP+ is manufactured by StarTech.com to meet or exceed OEM specifications and comply with the industry's MSA (Multi-Source Agreement) standards. Committed to the highest standards of quality, StarTech.com provides an extensive range of networking products including copper and fiber network cards, fiber media converters, Ethernet switches and wireless products.

This 10 Gigabit multimode SFP+ is engineered to the highest quality standards and is 100% HP compatible, equivalent to the HP JD092B SFP+ transceiver. The StarTech.com SFP+ is configured and fully tested to ensure it works seamlessly with HP or other major brands of networking equipment.

You can be assured that the use of StarTech.com SFP products should not affect the warranty protection of your networking equipment.

Delivering both convenience and scalability, this fiber SFP+ transceiver is fully hot-pluggable, which enables you to install it without interrupting network traffic or having to reboot your equipment. It provides a versatile and cost-effective solution that's compatible with a multitude of 10 Gigabit networking devices.

Ideal for use in HP switches, routers and other networking equipment, the SFP+ optical transceiver provides dependable performance, allowing you to expand your network to remote segments cost-effectively. The multimode fiber transceiver module supports Digital Diagnostics Monitoring (DDM), a maximum distance of up to 300 m (984 ft), and maximum data rates of up to 10Gbps.

Specifications

Summary

Product Description: StarTech.com HP JD092B Compatible SFP+ Module - Lifetime Warranty (JD092BST) - SFP+ transceiver module - 10Mb LAN, 100Mb LAN, GigE, 10 GigE

Device Type: SFP+ transceiver module - LC multi-mode

Form Factor: Plug-in module

Cabling Type: 10GBase-SR

Data Transfer Rate: 10 Gbps

Optical Wave Length: 850 nm

Data Link Protocol: 10Mb LAN, 100Mb LAN, GigE, 10 GigE

Max Transfer Distance: 300 m

OEM Manufacturer Equivalent Part Number: HP JD092B

Dimensions (WxDxH): 1.3 cm x 5.7 cm x 1.4 cm

Manufacturer Warranty: Limited lifetime warranty

Designed For: HP A5830AF-48G; HPE 12504, 5120-48G-PoE+, 5500-24G-PoE+-4SFP, 5500-24G-SFP, 5500-48G-4SFP, 5810-48G, 5900AF-48G-4XG-2QSFP+, 5900AF-48XG-4QSFP+, 5900AF-48XGT-4QSFP+, 5920AF-24XG; FlexFabric 1.92, 11908-V, 12902E

Detailed Specification

General

Device Type: SFP+ transceiver module

Form Factor: Plug-in module

Colour: Silver

Networking

Connectivity Technology: Wired

Cabling Type: 10GBase-SR

Data Link Protocol: 10Mb LAN, 100Mb LAN, GigE, 10 GigE

Data Transfer Rate: 10 Gbps

Optical Wave Length: 850 nm

Max Transfer Distance: 300 m

Features: Full duplex capability, Digital Diagnostics Monitoring (DDM)

Compliant Standards: IEEE 802.3ae

Expansion / Connectivity

Interfaces: 1 x Ethernet 10GBase-SR - LC multi-mode x 2

Miscellaneous

Compliant Standards: UL, FCC, RoHS, MSA

OEM Manufacturer Equivalent Part Number: HP JD092B

Dimensions & Weight

Width: 1.3 cm

Depth: 5.7 cm

Height: 1.4 cm

Manufacturer Warranty

Service & Support: Limited warranty - lifetime

Environmental Parameters

Min Operating Temperature: 0 °C

Max Operating Temperature: 70 °C

Humidity Range Operating: 30 - 75%

Compatibility Information

Designed For: HP A5830AF-48G Switch , HPE 12504 AC Switch Chassis, 5120-48G-PoE+ EI Switch with 2 Interface Slots, 5500-24G-PoE+-4SFP HI Switch with 2 Interface Slots, 5500-24G-SFP HI Switch with 2 Interface Slots, 5500-48G-4SFP HI Switch with 2 interface Slots, 5810-48G Switch, 5900AF-48G-4XG-2QSFP+ Switch, 5900AF-48XG-4QSFP+ Switch, 5900AF-48XGT-4QSFP+ Switch, 5920AF-24XG Switch , HPE FlexFabric 1.92 Tbps Type D Fabric Module, 11908-V Switch Chassis, 12902E Switch Chassis
