Description
Adjustable Projector Mount Up to 27.7" Extension from Wall Steel / Aluminum. The adjustable mount for short throw projectors helps you create a large image from a short distance and keeps your projector out of the way. It's ideal for classrooms, boardrooms, hospitality venues, and many other meeting spaces.
Wide Compatibility with Short Throw Projectors
Supporting a wide range of projector brands, the short throw projector wall mount features a universal mounting pattern of 12.8" (325 mm) diameter and supports a weight capacity of 33.3 lb. (15 kg).
Adjust the Distance from the Wall
Adjust the distance of your projector from the wall using the telescopic arm, which extends from 16.5" to 27.7" (420 mm to 705 mm). The arm on the low-profile projector wall mount also tilts +5/- 5 degrees to help you find the ideal position. The lockable ball joint on the adjustable projector mount provides 360-degree swivel, +/- 25 degree horizontal / vertical tilt.
The Choice of IT Pros Since 1985
StarTech.com conducts thorough compatibility and performance testing on all our products to ensure we are meeting or exceeding industry standards and providing high-quality products to IT Professionals. Our local StarTech.com Technical Advisors have broad product expertise and work directly with our StarTech.com Engineers to provide support for our customers both pre and post-sales.
PROJWALLMNT is backed by a StarTech.com 2-year warranty and free, lifetime technical support.
-
Fine-tune for optimal viewing
After the projector ceiling mount is installed, you can fine-tune the angle for optimum viewing. The locking ball join on the projector mount provides 360-degree swivel, +/- 25 degree horizontal/vertical tilt. -
Heavy-duty steel and aluminum construction
With its robust steel and aluminum construction and solid wall plate, the ceiling mount projector stand supports an impressive weight capacity.
Specifications
Summary
- Product Description
- StarTech.com Universal Projector Wall Mount, Projector Mount supports Short & Ultra Short Throw Projectors up to 33lb (15kg), Tilt/Swivel/Rotate, Adjustable height 16.5" to 27.7" from Wall - In-wall Cable Routing (PROJWALLMNT) bracket - adjustable arm - for projector - silver
- Product Type
- Bracket (adjustable arm) - wall-mountable
- Dimensions (WxDxH)
- 35.25 cm x 88.1 cm x 21.5 cm
- Adjustable Depth
- 42-70.5 cm
- Tilt
- -5° to 5°
- Swivel
- 360°
- Adjustments
- Tilt, swivel
- Weight
- 3.33 kg
- Recommended Use
- Projector
- Max Load Weight
- 15 kg
- Material
- Plastic, aluminium, steel
- Colour
- Silver

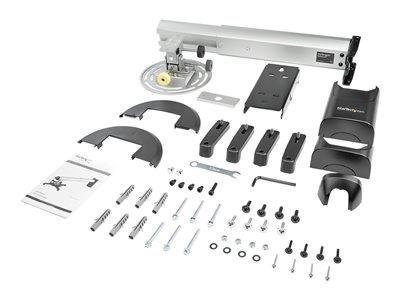

- Package Content
- 4 x washers, hex key (5mm), 4 x nuts, adjustment module, projector pole, pole end cap, upper decorative wall cover, lower decorative wall cover, right adjustment module cover, left adjustment module cover, 4 x mounting arms, 4 x mounting arm cover, hinged connector, 6 x wall anchors, 6 x mounting screws, wrench (10mm), 4 x M3x24 screws, 4 x M4x24 screws, 4 x M5x24 screws, 4 x M6x8 hex screws, 2 x M6x10 screws, M6x25 hex screws, M6x24 screw
- Manufacturer Warranty
- 2-year warranty
Detailed Specification
General
- Width
- 35.25 cm
- Depth
- 88.1 cm
- Height
- 21.5 cm
- Adjustable Depth
- 42-70.5 cm
- Weight
- 3.33 kg
- Material
- Plastic, aluminium, steel
- Colour
- Silver
- Package Content
- 4 x washers, hex key (5mm), 4 x nuts, adjustment module, projector pole, pole end cap, upper decorative wall cover, lower decorative wall cover, right adjustment module cover, left adjustment module cover, 4 x mounting arms, 4 x mounting arm cover, hinged connector, 6 x wall anchors, 6 x mounting screws, wrench (10mm), 4 x M3x24 screws, 4 x M4x24 screws, 4 x M5x24 screws, 4 x M6x8 hex screws, 2 x M6x10 screws, M6x25 hex screws, M6x24 screw
AV Furniture
- Type
- Bracket
- Design
- Adjustable arm
- Recommended Use
- Projector
- Placing / Mounting
- Wall-mountable
- Cable Management
- Integrated cable management
- Tilt
- -5° to 5°
- Swivel
- 360°
- Adjustments
- Tilt, swivel
- Max Load Weight
- 15 kg
Dimensions & Weight Details
- Shipping Dimensions (WxDxH) / Weight
- 57 cm x 28.1 cm x 15 cm / 4.2 kg
Manufacturer Warranty
- Service & Support
- Limited warranty - 2 years
