Description

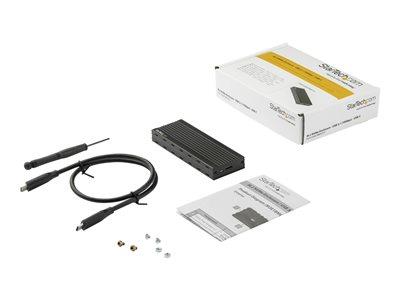

This compact M.2 NVMe SSD Enclosure for PCIe SSDs is a highly portable, high-performance data storage solution for your USB-C or Thunderbolt 3 enabled devices.
Leverage the high speeds of your M.2 NVMe drive, with this external SSD enclosure. It delivers USB 3.1 Gen 2 read/write speeds up to 10Gbps, which is nearly twice the capability of traditional M.2 SATA enclosures.
This enclosure also features ventilation holes to help dissipate heat, ensuring an optimal operating temperature and helping to preserve performance.
This slim, pocket-sized enclosure for PCIe based NVMe is specially designed for mobility, with a small form-factor design that fits easily into your laptop bag. Its lightweight, yet durable aluminum housing helps to ensure your drive won't be damaged while you're on the move.
The M.2 NVMe enclosure works with tablets, laptops, desktop computers and hosts that are equipped with USB Type-C and Thunderbolt 3 ports. It's also backward compatible with USB 3.1 Gen 1, making it a convenient solution for the office or other workplace environments.
Additionally, the enclosure supports plug-and-play installation, making it the perfect accessory for professionals on the go.
Specifications
Summary
- Product Description
- StarTech.com USB-C (10Gbps) to M.2 NVMe SSD Enclosure - Portable M.2 PCIe Aluminum Case - 1GB/s Read & Write - Mac & PC - storage enclosure - M.2 Card - USB 3.1 (Gen 2)
- Device Type
- Storage enclosure - external
- Bus Type
- USB 3.1 (Gen 2)
- Colour
- Black
- Expansion Bays
- 1 x internal - M.2 2230/2242/2260/2280
- Hard Drive Form Factor Compatibility
- M.2
- Interface
- M.2 Card
- Data Transfer Rate
- 10 Gbit/s
- Supported Devices
- Solid state drive
- Max Storage Devices Qty
- 1
- Product Material
- Plastic, aluminium
- Dimensions (WxDxH)
- 10.85 cm x 4 cm x 1.3 cm
- Weight
- 65 g
- Manufacturer Warranty
- 2-year warranty
Detailed Specification
General
- Device Type
- Storage enclosure - external
- Hard Drive Form Factor Compatibility
- M.2
- Host Bus
- USB 3.1 (Gen 2)
- Product Material
- Plastic, aluminium
- Colour
- Black
Storage Controller
- Interface
- M.2 Card
- Data Transfer Rate
- 10 Gbit/s
- Supported Devices
- Solid state drive
- Max Storage Devices Qty
- 1
- Processor
- ASMedia ASM2362
Expansion / Connectivity
- Bays
- 1 x internal - M.2 2230/2242/2260/2280
- Interfaces
- 1 x PCIe 3.0 - NGFF B + M key
- Connections
- 1 x USB 3.1 (Gen 2) - 24 pin USB-C
Miscellaneous
- Included Accessories
- Screwdriver
- Cables Included
- 1 x USB-C cable - external - 50 cm
- Features
- USB powered, UASP transfer protocol, TRIM support, 4Kn drive compatible
- MTBF
- 233,398 hours
- Compliant Standards
- FCC, RoHS, WEEE
Manufacturer Warranty
- Service & Support
- Limited warranty - 2 years
Dimensions & Weight
- Width
- 10.85 cm
- Depth
- 4 cm
- Height
- 1.3 cm
- Weight
- 65 g
Dimensions & Weight (Shipping)
- Shipping Weight
- 200 g
Environmental Parameters
- Min Operating Temperature
- 0 °C
- Max Operating Temperature
- 40 °C
- Humidity Range Operating
- 10 - 90%
