StarTech.com Industrial Gigabit PoE Splitter 90W Ultra Power OverEthernet

Review this product
Quicklinx: G3QVWS00 Mfr#: POESLT1G48V
15 in stock
£113.32 ex VAT
£135.98 inc VAT
Qty
Standard delivery Delivered within 3 working days

Description

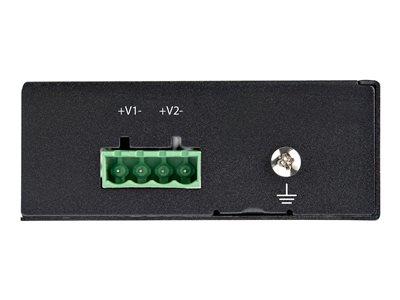

Splits a PoE connection into separate data (RJ45) and DC power (terminal block) that can power any device that uses DC power between 12V-48VDC (1.5A). Power non-PoE devices using network infrastructure, where power is not available.

  • Power non-PoE devices

    Perfect for using PoE to power older devices while also providing network access for monitoring and control applications.
  • Designed for harsh environments

    Industrial features include -40°C to 75°C operating temperature, IP-30 rated housing, vibration, shock, and free-fall standard testing.

Specifications

Summary

Product Description
StarTech.com Industrial Gigabit PoE Splitter - 90W High Speed Power over Ethernet PoE+++ Splitter - 12-48V DC Splitter 802.3bt - LAN/RJ45 Ultra PoE to DC Adapter - -40C to +75C - PoE splitter - 90 Watt
Device Type
PoE splitter - DIN rail mountable
Power Over Ethernet (PoE)
PoE++
Weight
150 g
Output Voltage
12 / 16 / 24 / 48 V
Power Capacity
90 Watt
Input Connectors
1 x RJ-45
Output connectors
1 x 4 pin terminal block
Included Accessories
Mounting kit, terminal block
Dimensions (WxDxH)
8.15 cm x 10.4 cm x 3.2 cm
Manufacturer Warranty
2-year warranty


Detailed Specification

General

Device Type
PoE splitter - DIN rail mountable
Power Over Ethernet (PoE)
PoE++ (IEEE 802.3bt)

Power Device

Input Connectors
1 x RJ-45
Power Output Connectors Details
1 x 4 pin terminal block
Output Voltage
12 / 16 / 24 / 48 V
Max Electric Current
1.5 A
Power Capacity
90 Watt

Expansion / Connectivity

Interfaces
1 x Gigabit LAN - RJ-45

Miscellaneous

Included Accessories
Mounting kit, terminal block
MTBF
622,154 hours
Features
Wall mountable, full duplex support, auto MDIX support, rugged metal enclosure, LED indicators, auto negotiating, 8 kV ESD protection (Air), 6 kV ESD protection (Contract)
Compliant Standards
IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt, UL, IEC 61000-4-2, IEC 61000-4-4, IEC 61000-4-5, FCC, RoHS, EN 60950-1, WEEE, IP30, EN 60068-2-27, EN 60068-2-32, EN 60068-2-6

Manufacturer Warranty

Service & Support
Limited warranty - 2 years

Environmental Parameters

Min Operating Temperature
-40 °C
Max Operating Temperature
75 °C
Humidity Range Operating
5 - 95% (non-condensing)

Dimensions & Weight

Width
8.15 cm
Depth
10.4 cm
Height
3.2 cm
Weight
150 g

Dimensions & Weight (Shipping)

Shipping Width
21.1 cm
Shipping Depth
16.2 cm
Shipping Height
6.4 cm
Shipping Weight
400 g
