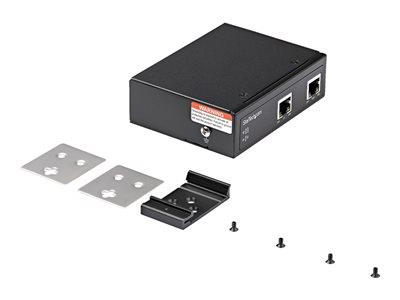

StarTech.com Industrial Gigabit PoE Extender 60W 802.3bt PoE+

Review this product
Quicklinx: G3QRWS00 Mfr#: POEEXT1G60W
Less than 10 in stock
£141.79 ex VAT
£170.14 inc VAT
Qty
Standard delivery Delivered within 3 working days

  • Extend the reach of PoE links

    Extends the reach of PoE links to power devices over long distances. Up to 4 extenders can be cascaded to extend the range of a PoE source device.
  • Designed for harsh environments

    This PoE extender features IP30 housing for long-term reliability and durability. A wide operating temperature permits use in a wide range of indoor and outdoor applications that are not temperature controlled.

Specifications

Summary

Product Description
StarTech.com Industrial Single Port Gigabit PoE Extender - 60W 802.3bt PoE /PoE+/ PoE++ - 100m/ 330ft - Power Over Ethernet Network Range Extender - IP-30 - -40C to +75C - network/power extender - 10Mb LAN, 100Mb LAN, GigE
Device Type
Network/power extender
Ports Qty
1
Cabling Type
10Base-T, 100Base-TX, 1000Base-T
Data Transfer Rate
1 Gbps
Data Link Protocol
10Mb LAN, 100Mb LAN, GigE
Max Transfer Distance
100 m
Power Over Ethernet (PoE)
PoE+
Dimensions (WxDxH)
8.15 cm x 10.4 cm x 3.2 cm
Weight
148 g
Manufacturer Warranty
2-year warranty


Detailed Specification

General

Device Type
Network/power extender
Colour
Black

Networking

Ports Qty
1
Connectivity Technology
Wired
Cabling Type
10Base-T, 100Base-TX, 1000Base-T
Data Link Protocol
10Mb LAN, 100Mb LAN, GigE
Data Transfer Rate
1 Gbps
Max Transfer Distance
100 m
Status Indicators
PoE, link/activity
Features
Flow control, auto-negotiation, auto-uplink (auto MDI/MDI-X), full duplex mode, rugged, Back Pressure Support, 2KV Surge protection, 8KV ESD Protector (air-gap discharge), 6KV ESD Protector (contact discharge), aluminium housing
Compliant Standards
IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3x, IEEE 802.3at, IEEE 802.3bt

Expansion / Connectivity

Interfaces
1 x Ethernet 10Base-T/100Base-TX/1000Base-T (PoE+ output) - RJ-45 female , 1 x Ethernet 10Base-T/100Base-TX/1000Base-T (PoE+ input) - RJ-45 female

Miscellaneous

Mounting Kit
Included
MTBF
551, 848 hours
Compliant Standards
IEC 61000-4-2, IEC 61000-4-4, IEC 61000-4-5, FCC, RoHS, WEEE, IP30, EN 60068-2-27, EN 60068-2-32, EN 60068-2-6

Power

Power Over Ethernet (PoE)
PoE+
Power Consumption Operational
2.7 Watt

Dimensions & Weight

Width
8.15 cm
Depth
10.4 cm
Height
3.2 cm
Weight
148 g

Dimensions & Weight (Shipping)

Shipping Width
21.1 cm
Shipping Depth
16.2 cm
Shipping Height
6.4 cm
Shipping Weight
400 g

Manufacturer Warranty

Service & Support
Limited warranty - 2 years

Environmental Parameters

Min Operating Temperature
-40 °C
Max Operating Temperature
75 °C
Humidity Range Operating
5 - 95% (non-condensing)
