StarTech.com Industrial 8 Port Gigabit PoE Switch - 30W - Power Over Ethe

Review this product
Quicklinx: G3QKWS00 Mfr#: IESC1G80UP
Type: Gigabit Ethernet
Ports: 8
Managed: No
POE: PoE+
Ordered upon request
£348.02 ex VAT
£417.62 inc VAT
Qty
Standard delivery Product out of stock. Due date unavailable.

Description

This industrial 8-port gigabit PoE switch features 30W of power and is designed to be installed in harsh environments.

  • Power over Ethernet

    Gigabit PoE switch provides up to 30W of PSE power per PoE port to IEEE 802.3af (PoE) and IEEE 802.3at (PoE+). Use with devices like cameras and access points utilizing Cat 5e/6.
  • Robust design

    Industrial network switch with MTBF of 500,000+ hours at 50°C. Vibration, shock and free fall rated. Rugged industrial IP-30 aluminum housing. Operating temperature range: -40°C to 75°C.
  • Redundant power

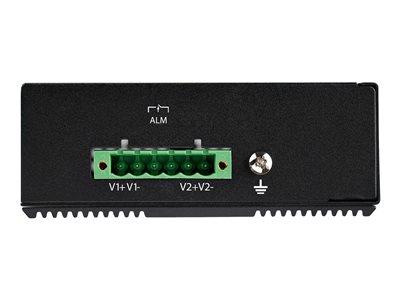

    Dual terminal block power inputs (48-56VDC) provide redundancy for high-availability applications.

Specifications

Summary

Product Description
StarTech.com Industrial 8 Port Gigabit PoE Switch, 30W, Power Over Ethernet Switch, Gigabit Ethernet GbE PoE+ Unmanaged Switch, Rugged High Power Gigabit Network Switch IP-30, -40C to 75C - Gigabit Ethernet PoE (IESC1G80UP) - switch - 8 ports - unmanaged
Device Type
Switch - 8 ports - unmanaged
Subtype
Gigabit Ethernet
Ports
8 x 10/100/1000 (PoE+)
Power Over Ethernet (PoE)
PoE+
PoE Budget
200 W
Performance
Switching fabric speed: 16 Gbps , Bandwidth: 2 Gbps
Jumbo Frame Support
9KB
Features
Flow control, full duplex mode, 128KB packet buffer, rugged, 2KV ESD Protector, Back Pressure Support, Media Dependent Interface Crossover (MDI-X)
Compliant Standards
IEEE 802.3af, IEEE 802.3x, IEEE 802.3at
Power
DC 48 - 56 V
Dimensions (WxDxH)
10.5 cm x 14.2 cm x 4 cm
Weight
536 g
Colour
Black
Manufacturer Warranty
2-year warranty


Detailed Specification

General

Device Type
Switch - 8 ports - unmanaged
Enclosure Type
DIN rail mountable, wall-mountable
Subtype
Gigabit Ethernet
Ports
8 x 10/100/1000 (PoE+)
Power Over Ethernet (PoE)
PoE+
PoE Budget
200 W
Performance
Switching fabric speed: 16 Gbps , Bandwidth: 2 Gbps
Jumbo Frame Support
9KB
Features
Flow control, full duplex mode, 128KB packet buffer, rugged, 2KV ESD Protector, Back Pressure Support, Media Dependent Interface Crossover (MDI-X)
Compliant Standards
IEEE 802.3af, IEEE 802.3x, IEEE 802.3at
Status Indicators
Power, PoE, link

Expansion / Connectivity

Interfaces
8 x 1000Base-T RJ-45 PoE+ - 30 W , 1 x terminal block

Power

Voltage Required
DC 48 - 56 V
Power Consumption Operational
206 Watt

Miscellaneous

Colour
Black
Included Accessories
Terminal block connector, mounting kit
MTBF
693,764 hours
Compliant Standards
IEC 61000-4-2, IEC 61000-4-4, IEC 61000-4-5, UL 60950-1, EN 60950-1, MSA, IP30, EN 60068-2-27, EN 60068-2-32, EN 60068-2-6

Dimensions & Weight

Width
10.5 cm
Depth
14.2 cm
Height
4 cm
Weight
536 g

Dimensions & Weight (Shipping)

Shipping Width
21.1 cm
Shipping Depth
16.2 cm
Shipping Height
6.4 cm
Shipping Weight
800 g

Manufacturer Warranty

Service & Support
Limited warranty - 2 years

Environmental Parameters

Min Operating Temperature
-40 °C
Max Operating Temperature
75 °C
