Description
Easily deploy or scale your network with this Gigabit Ethernet switch, it features four dedicated PoE+ enabled ports, and one dedicated open SFP slot plus the flexibility of a switchable RJ-45/open SFP port for use as an uplink or for non-PoE devices. It features an IP-30 housing, compact design, and is wall and DIN rail mountable.
-
Power over Ethernet and low voltage
Ideal for powering PoE devices in situations where a traditional power source is not available; it accepts power as low as 12VDC for applications such as transportation (auto/bus/rail) and solar. PoE output is boosted to PoE/PoE+ standards (IEEE 802.3af/at, 55V) in applications where non-standard 12V (or higher) power sources are available. -
Flexible power input and low voltage
Power input flexibility between 12/24/48/56V DC and low voltage DC inputs reduces the complexities of installation by avoiding additional in-line devices to boost power before it reaches the switch.This unique switch allows for 5x RJ-45 ports (4x PoE) to be active + 1 SFP, or 4 x RJ-45 (all PoE) + 2 SFP, for 6 device connections total. -
Designed for harsh environments
Industrial features include -40 C to 75 C operating temperature, IP-30 rated housing, vibration, shock, and free-fall standard testing. -

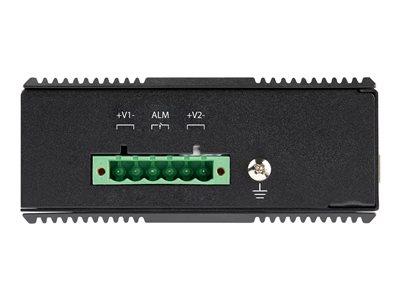

Dual power inputs
Dual power inputs provide redundancy. Accepts dual terminal block power, allowing the product to be hardwired from multiple power sources for high availabilty applications.
Specifications
Summary
- Product Description
- StarTech.com Industrial 6 Port Gigabit Ethernet Switch, 4 PoE RJ45 +2 SFP Slots 30W PoE+ 12-48VDC 10/100/1000 Rugged Power Over Ethernet LAN Switch -40C to 75C, DIN Mountable, Hardened - Fast Ethernet Switch (IES1G52UP12V) - switch - 6 ports
- Device Type
- Switch - 6 ports
- Subtype
- Gigabit Ethernet
- Ports
- 1 x 10/100/1000 + 4 x 10/100/1000 (PoE+) + 2 x SFP
- Power Over Ethernet (PoE)
- PoE+
- PoE Budget
- 120 W
- Performance
- Switching fabric speed: 12 Gbps
- Jumbo Frame Support
- 9KB
- Features
- Flow control, full duplex mode, 128KB packet buffer, rugged, 2KV ESD Protector, MDI-X
- Compliant Standards
- IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3x, IEEE 802.3at
- Power
- DC 12 - 48 V
- Dimensions (WxDxH)
- 10.5 cm x 14.2 cm x 4.3 cm
- Weight
- 701.4 g
- Colour
- Black
- Manufacturer Warranty
- 2-year warranty
Detailed Specification
General
- Device Type
- Switch - 6 ports
- Enclosure Type
- DIN rail mountable
- Subtype
- Gigabit Ethernet
- Ports
- 1 x 10/100/1000 + 4 x 10/100/1000 (PoE+) + 2 x SFP
- Power Over Ethernet (PoE)
- PoE+
- PoE Budget
- 120 W
- Performance
- Switching fabric speed: 12 Gbps
- Jumbo Frame Support
- 9KB
- Features
- Flow control, full duplex mode, 128KB packet buffer, rugged, 2KV ESD Protector, MDI-X
- Compliant Standards
- IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3x, IEEE 802.3at
- Status Indicators
- Power, PoE, SFP, link
Expansion / Connectivity
- Interfaces
- 1 x 1000Base-T RJ-45 , 4 x 1000Base-T RJ-45 PoE+ - 30 W , 2 x SFP , 1 x terminal block
Power
- Voltage Required
- DC 12 - 48 V
Miscellaneous
- Colour
- Black
- Included Accessories
- Terminal block connector, mounting kit
- MTBF
- 693,764 hours
- Compliant Standards
- IEC 61000-4-2, IEC 61000-4-4, IEC 61000-4-5, UL 60950-1, EN 60950-1, MSA, IP30, EN 60068-2-27, EN 60068-2-32, EN 60068-2-6
Dimensions & Weight
- Width
- 10.5 cm
- Depth
- 14.2 cm
- Height
- 4.3 cm
- Weight
- 701.4 g
Dimensions & Weight (Shipping)
- Shipping Width
- 21.1 cm
- Shipping Depth
- 16.2 cm
- Shipping Height
- 6.4 cm
- Shipping Weight
- 900 g
Manufacturer Warranty
- Service & Support
- Limited warranty - 2 years
Environmental Parameters
- Min Operating Temperature
- -40 °C
- Max Operating Temperature
- 75 °C
- Humidity Range Operating
- 5 - 95% (non-condensing)
- Min Storage Temperature
- -40 °C
- Max Storage Temperature
- 85 °C
