Description

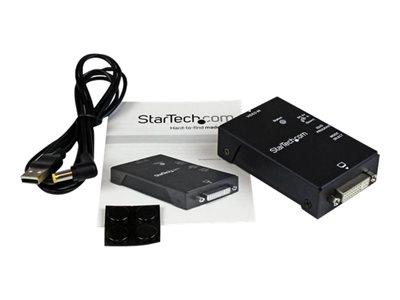

Copy or emulate Extended Display Identification (EDID) data for optimal display settings. The VSEDIDDVI DVI EDID Emulator enables you to capture and retain Extended Display Identification Data from a monitor, which can then be connected to the video signal source (video extender, KVM switch, etc.) to pass the EDID information and ensure the proper video settings are maintained.
EDID information contains important display settings such as maximum image size, color characteristics, factory pre-set timings, frequency range limits, etc., and since most video extender systems don't offer EDID communication between the source and remote display, the DVI EDID Emulator is a perfect workaround for ensuring the optimum signal is provided to the display to help prolong the life of your displays.
Specifications
Summary
- Product Description
- StarTech.com DVI DDC EDID Ghosting Emulator with EDID Copy - edid clone - DVI edid emulator - ddc emulator (VSEDIDDVI) - EDID reader / writer - DVI
- Device Type
- EDID reader / writer
- Interface Type
- DVI
- Dimensions (WxDxH)
- 5.2 cm x 8 cm x 2.2 cm
- Weight
- 123 g
- Colour
- Black
- Digital Video Capture Resolution
- 1280 x 720, 1600 x 1200, 1024 x 768, 1280 x 1024, 1920 x 1440, 1920 x 1080, 2048 x 1152, 2560 x 1440, 2560 x 1600, 1920 x 1200, 1440 x 900, 1680 x 1050, 1600 x 900
- Features
- Double Duration Circuit (DDC) technology
Detailed Specification
General
- Device Type
- EDID reader / writer
- Interface Type
- DVI
- Width
- 5.2 cm
- Depth
- 8 cm
- Height
- 2.2 cm
- Weight
- 123 g
- Colour
- Black
Video
- Digital Video Capture Resolution
- 1280 x 720, 1600 x 1200, 1024 x 768, 1280 x 1024, 1920 x 1440, 1920 x 1080, 2048 x 1152, 2560 x 1440, 2560 x 1600, 1920 x 1200, 1440 x 900, 1680 x 1050, 1600 x 900
- Features
- Double Duration Circuit (DDC) technology
Expansion / Connectivity
- Interfaces
- 1 x display / video - DVI-Analog/Digital - 24+5 pin combined DVI , 1 x USB
- Connections
- 1 x display / video - DVI-Analog/Digital - 24+5 pin combined DVI
Miscellaneous
- Device Features
- USB powered
Environmental Parameters
- Min Operating Temperature
- 0 °C
- Max Operating Temperature
- 40 °C
- Humidity Range Operating
- 0 - 80%
