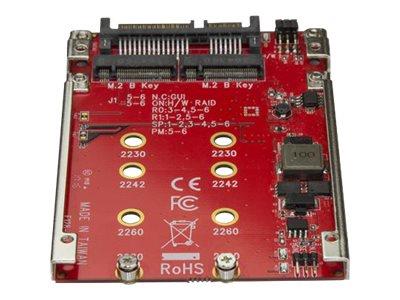

StarTech.com Dual M.2 to SATA Adapter, RAID

Review this product
Quicklinx: D6QZWS00 Mfr#: S322M225R
10 In Stock
£35.62 ex VAT
£42.74 inc VAT
Qty
Standard delivery Delivered within 3 working days

Description

Create high-performance storage with configurable RAID, by installing two M.2 SATA SSDs into a 2.5" SATA interface. Boost your system performance by enhancing the capacity, speed and security of your data storage. This two-drive M.2 to SATA adapter lets you install two M.2 SATA drives instead of a SATA platter drive, in a single 2.5" drive bay, and increase your storage options by configuring a powerful RAID array.

The dual M.2 to SATA adapter supports multiple RAID modes, including RAID 0, 1, or spanning, helping you to achieve greater SSD capacity or data redundancy, depending on your selected RAID mode. The SSD adapter also supports non-RAID operation (JBOD) when paired with a port-multiplying SATA controller, so both drives can be used independently of one another.

The M.2 SATA SSD adapter lets you utilize the full potential of your SATA III controller. Using M.2 SATA SSDs in place of a platter drive reduces your data transfer bottlenecks, giving you file transfer speeds of up to 6Gbps.

The M.2 NGFF SATA RAID adapter also provides TRIM support to enhance the stability and performance of your M.2 NGFF SSDs.

This open-frame adapter is easy to install as it comes with all the necessary installation hardware and doesn't require any extra software or drivers, to get you up and running quickly.

  • High performance

    Create a high-performance storage solution by installing up to two M.2 SATA SSDs into a 2.5" SATA adapter with RAID support for JBOD, SPAN, RAID 0, and RAID 1.
  • Hassle-free setup

    Open-frame steel mounting bracket with 2.5" SATA form factor fits in any 2.5" SATA bay that supports 7mm tall 2.5" drives. Easy to install with all necessary hardware included.
  • Wide compatibility

    Supports B & B+M key SATA M.2 SSDs in 2230/2242/2260/2280 form factors. Supports SATA I, II, and III (up to 6 Gbps) TRIM, and SMART. M & B+M key NVMe or AHCI PCI-e M.2 SSDs not supported (only SATA supported).
  • TRIM support

    TRIM support enhances the stability and performance of your M.2 SSDs plus it provides SMART support. TRIM supported in JBOD and RAID 1, SMART only supported in JBOD.

Specifications

Summary

Product Description
StarTech.com M.2 to SATA Adapter - Dual Slot - for 2.5in Drive Bay - RAID - M.2 SSD - M.2 Adapter - M.2 SSD Adapter (S322M225R) - storage controller (RAID) - M.2 Card - SATA 6Gb/s
Device Type
Storage controller (RAID) - internal
Bus Type
SATA 6Gb/s
Colour
Red
Compatible Bay
1 2.5"
Hard Drive Form Factor Compatibility
M.2
Interface
M.2 Card
Data Transfer Rate
6 GBps
Supported Devices
Disk array (RAID), solid state drive
Max Storage Devices Qty
2
RAID Level
RAID 0, RAID 1, JBOD, BIG
Dimensions (WxDxH)
7 cm x 10 cm x 0.7 cm
Weight
41 g
Manufacturer Warranty
2-year warranty


Detailed Specification

General

Device Type
Storage controller (RAID) - internal
Hard Drive Form Factor Compatibility
M.2
Host Bus
SATA 6Gb/s
Colour
Red

Storage Controller

Interface
M.2 Card
Data Transfer Rate
6 GBps
Supported Devices
Disk array (RAID), solid state drive
Max Storage Devices Qty
2
RAID Level
RAID 0, RAID 1, JBOD, BIG
Processor
ASMedia ASM1092R

Expansion / Connectivity

Interfaces
2 x M.2 Card - M.2 Card
Connections
1 x SATA 6Gb/s - 22 pin Serial ATA
Compatible Bay
1 x internal 2.5"

Miscellaneous

Included Accessories
4 x screws, 2 sets of drive-mounting hardware
Features
S.M.A.R.T. support, TRIM support
Compliant Standards
FCC, RoHS, WEEE

Manufacturer Warranty

Service & Support
Limited warranty - 2 years

Dimensions & Weight

Width
7 cm
Depth
10 cm
Height
0.7 cm
Weight
41 g

Environmental Parameters

Min Operating Temperature
5 °C
Max Operating Temperature
50 °C
Humidity Range Operating
15 - 90%
