Description
Switch between DisplayPort, VGA or two HDMI source devices on one display, with automatic and priority switching. This multi-input converter switch lets you connect your DisplayPort (DP), HDMI and VGA audio/video sources to one HDMI display or projector. The switch enables you to automatically or manually switch between your video sources and features built-in signal conversion, which eliminates the cost and hassle of using additional adapters for the sake of compatibility.
This versatile A/V switch supports video resolutions up to 1920x1200 (1080p) on your VGA source and up to 4K at 30 Hz on your DisplayPort and HDMI video sources. For a tidy, professional installation, the converter switch includes mounting hardware.
The A/V switch features built-in HDMI conversion, so you can connect two HDMI sources as well as a VGA and a DisplayPort video source to the same HDMI display, without having to use additional adapters or scalers.
The converter switch ensures hassle-free operation, with two different auto-switching modes: auto-detect switching, which detects and selects a newly connected device, or priority selection, which lets you choose which port should be activated by default for automatic switching. The converter switch is perfect for digital signage applications where an automatic switch can replace a failed source with a secondary input to avoid embarrassing video outages.
This versatile A/V switch has been designed with the boardroom and classroom in mind, with HDMI, VGA and DisplayPort inputs to support a wide range of devices, and a built-in converter that makes it easy to connect to the room's display without having to connect additional adapters. Plus, automatic switching encourages on-the-fly collaboration among students or co-workers, by making it so easy to share a projector or other display device between multiple sources.
The video switch maintains Ultra HD 4K picture quality while switching between content from HDMI and DisplayPort source devices, including Blu-ray players and DVD players, computer systems, video game consoles, digital cable and satellite boxes and A/V receivers.
4K video support ensures a higher level of image clarity and visibility, delivering four times the resolution of 1080p - 8.29 million pixels versus 2.07 million pixels. It offers a more engaging visual experience for audiences in a wide range of venues, including conference centers, boardrooms, educational facilities, and commercial settings.
When connecting a VGA source, the switch supports high-definition resolutions up to 1920 x 1200. With its exceptional resolution and image quality, this switch is ideal for bringing your digital signage to life.
Specifications
Summary
- Product Description
- StarTech.com Multi-Input to HDMI Converter Switch - DisplayPort, VGA and Dual-HDMI to HDMI Switch - Priority and Automatic Switch - 4K (HDVGADP2HD) - video/audio switch
- Device Type
- Video/audio switch
- Subtype
- HDMI / DisplayPort / VGA
- Features
- 4K resolution support, 1080p resolution support
- Power
- AC 120/230 V
- Weight
- 200 g
- Manufacturer Warranty
- 2-year warranty
- Designed For
- P/N: BOX4CABLE
Detailed Specification
General
- Device Type
- Video/audio switch
- Enclosure Type
- Desktop
- Subtype
- HDMI / DisplayPort / VGA
- Features
- 4K resolution support, 1080p resolution support
Expansion / Connectivity
- Interfaces
- 1 x VGA input , 2 x HDMI input , 1 x DisplayPort input , 1 x HDMI output , 1 x audio input
Power
- Power Device
- External power adapter
- Voltage Required
- AC 120/230 V
Miscellaneous
- Included Accessories

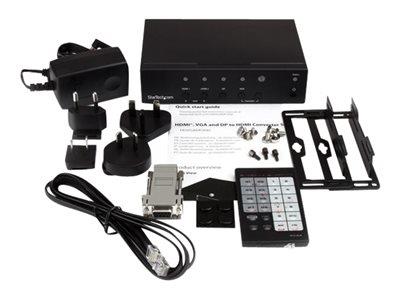

- Wireless remote control, mounting brackets, mounting screws
- Compliant Standards
- FCC, RoHS
Dimensions & Weight
- Weight
- 200 g
Manufacturer Warranty
- Service & Support
- Limited warranty - 2 years
Compatibility Information
- Designed For
- P/N: BOX4CABLE
