Description
The PATA2SATA3 is a bi-directional SATA IDE adapter/converter that lets you connect a Serial ATA drive to a legacy IDE port, or an IDE drive to a SATA motherboard port.
A cost-effective solution for upgrading existing IDE systems to support SATA hard drives or optical drives, the SATA/IDE adapter eliminates the expense of having to purchase a controller card while saving the expansion slot that would be required for card installation.
In addition to SATA hard drive installation, the adapter can be reversed in order to connect older IDE drives to a newer SATA-enabled motherboard, making it easy to retrieve old files from a previous system.
StarTech Advantage
- A single, versatile adapter can be used to connect an IDE device to a SATA motherboard or vice-versa without any drivers or software installation
- Supports not only hard drives, but CD/DVD optical drives as well
- Backed by a StarTech.com 1 year warranty and free lifetime technical support
Specifications
Summary
- Product Description
- StarTech.com SATA IDE Adapter - SATA IDE Adapter - Bi-Directional - IDE to SATA Adapter (PATA2SATA3) - storage controller - SATA 1.5Gb/s - Ultra ATA/133
- Device Type
- Storage controller
- Bus Type
- Ultra ATA/133
- Colour
- Black
- Interface
- SATA 1.5Gb/s
- Data Transfer Rate
- 1.5 Gbit/s
- Supported Devices
- Hard drive, CD drive, DVD drive
- Channel Qty
- 1
- Max Storage Devices Qty
- 1
- Product Material
- Plastic
- Dimensions (WxDxH)
- 5 cm x 6.1 cm x 1.1 cm
- Weight
- 170 g
- Manufacturer Warranty
- 2-year warranty
Detailed Specification
General
- Device Type
- Storage controller
- Host Bus
- Ultra ATA/133
- Product Material
- Plastic
- Colour
- Black
Storage Controller
- Interface
- SATA 1.5Gb/s
- Data Transfer Rate
- 1.5 Gbit/s
- Supported Devices
- Hard drive, CD drive, DVD drive
- Channel Qty
- 1
- Max Storage Devices Qty
- 1
Expansion / Connectivity
- Interfaces
- 2 x SATA 1.5Gb/s - SATA
- Connections
- 1 storage - IDE - 40 PIN IDC
Miscellaneous
- Cables Included

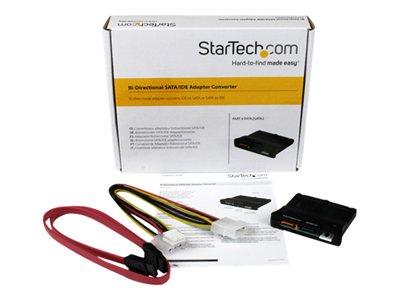

- 1 x Serial ATA cable - internal
- Compliant Standards
- RoHS
Manufacturer Warranty
- Service & Support
- Limited warranty - 2 years
Dimensions & Weight
- Width
- 5 cm
- Depth
- 6.1 cm
- Height
- 1.1 cm
- Weight
- 170 g
Environmental Parameters
- Min Operating Temperature
- 0 °C
- Max Operating Temperature
- 70 °C
