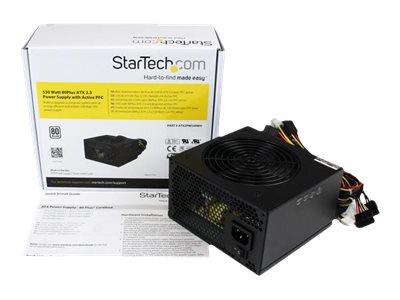

StarTech.com 530 Watt ATX12V 2.3 80 Plus Computer Power Supply w/ Active PFC

StarTech.com 530 Watt ATX12V 2.3 80 Plus Computer Power Supply w/ Active PFC

Review this product
Quicklinx: 93J7WS00 Mfr#: ATX2PW530WH
Discontinued

Description

Build or upgrade a computer system with an energy efficient and reliable 530 Watt ATX power supply. The ATX2PW530WH 530 Watt 80 Plus Power Supply offers an energy efficient replacement or upgrade for powering your desktop PC. Operating at a minimum of 80% efficiency between 20% and 100% load, 80 Plus power supplies deliver a significant improvement over standard-efficiency power supplies that helps reduce energy consumption and cost of operation.

This versatile power supply is equipped to support AMD or Intel CPU-based servers and workstations with a combined 20/24-pin motherboard connection, and an 8-pin EPS connector.

Specifications

Summary

Product Description
StarTech.com 530 Watt ATX12V 2.3 80 Plus Computer Power Supply w/ Active PFC - power supply - 530 Watt
Device Type
Power supply - active Power Factor Correction (PFC) - internal
Specification Compliance
ATX12V 2.3/ EPS12V 2.92
80 PLUS Certification
80 PLUS
Input Voltage
AC 115/230 V
Output Voltage
+3.3, +5, ±12 V
Power Capacity
530 Watt
Output connectors
1 x power 24 pin ATX with detachable 4 pin section , 1 x power 8 pin EPS12V with detachable 4 pin ATX12V section , 1 x 8 pin PCI Express power , 4 x 15 pin Serial ATA power , 3 x 4 PIN internal power , 1 x power 4 pin ATX12V connector , 1 x 6 pin internal power
Cooling System
120 mm fan
Dimensions (WxDxH)
15 cm x 14 cm x 6.8 cm
Manufacturer Warranty
2 years warranty


Detail

General

Device Type
Power supply - active Power Factor Correction (PFC) - internal
Specification Compliance
ATX12V 2.3/ EPS12V 2.92
Colour
Black

Power Device

Input Voltage
AC 115/230 V
Input Voltage Range
AC 110 - 240 V
Frequency Required
50 - 60 Hz
Power Output Connectors Details
1 x power 24 pin ATX with detachable 4 pin section , 1 x power 8 pin EPS12V with detachable 4 pin ATX12V section , 1 x 8 pin PCI Express power , 4 x 15 pin Serial ATA power , 3 x 4 PIN internal power , 1 x power 4 pin ATX12V connector , 1 x 6 pin internal power
Output Voltage
+3.3, +5, ±12 V
Power Capacity
530 Watt
Output Current
+12V1 - 41 A , +12V2 - 41 A , +12V3 - 41 A , +12V4 - 41 A , +3.3V - 20 A , +5V - 20 A , -12V - 0.5 A , +5VSB - 2.5 A , -5V - 20 A
Efficiency
80%
80 PLUS Certification
80 PLUS

Miscellaneous

Cooling System
120 mm fan
Features
Over current protection, over voltage protection, overpower protection, short-circuit protection
Compliant Standards
UL, RoHS

Manufacturer Warranty

Service & Support
Limited warranty - 2 years

Environmental Parameters

Min Operating Temperature
0 °C
Max Operating Temperature
40 °C

Dimensions & Weight

Width
15 cm
Depth
14 cm
Height
6.8 cm
