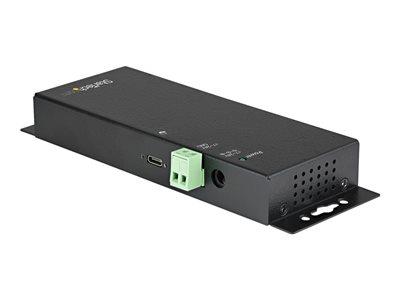

StarTech.com 4 Port USB C Hub 10Gbps - Metal Industrial USB Type-C Hub

Review this product
Quicklinx: G8KZWS00 Mfr#: HB31C3A1CME
Type: USB
Ports: 4
14 in stock
£126.78 ex VAT
£152.13 inc VAT
Qty
Standard delivery Delivered within 3 working days

Description

Industrial USB Hub - Metal Housing - Built-in Mounting Hardware - Screw Locking Ports

This 4-Port industrial USB hub enables you to connect four SuperSpeed USB 3.2 Gen 2 (10 Gbps) peripherals to your USB-A or USB-C computer. The hub features three USB-A and one USB-C peripheral ports, each with a screw-lock connector, and a metal industrial housing ideal for commercial environments.

Expands the Connectivity of Your Computer for Industrial Applications

With this USB-C hub you can connect three USB-A devices, and one USB-C device, to a single USB-C or USB-A port on your host device. The hub supports USB 3.2 Gen 2 (10 Gbps), and is backward compatible with USB 3.2 Gen 1 (5 Gbps) and USB 2.0 (480 Mbps).

Note: USB 3.2 Gen 2 (10 Gbps) is also known as USB 3.1 Gen 2 (10 Gbps), USB 3.2 Gen 1 (5 Gbps) is also know as USB 3.1 Gen 1 (5 Gbps), and USB 3.0 (5 Gbps).

Powers and Charges Your Connected Devices

The USB hub is self powered using either the included 36W (12V/3A) AC to DC power adapter, or the built-in terminal block connector that supports a 7-24V DC input. The hub shares up to 30W of power between connected devices and each port supports BC 1.2 providing 12W (2.4A) of power on all ports up to a 30W draw.

Ideal for Use in Industrial Environments

This USB hub has a rugged-metal enclosure with built-in mounting ears that enable you to mount it to any wall or surface. The hub features 15kV Air and 8kV Contact electrostatic discharge protection, with 350W surge protection. Each port on the Hub has a screw lock, avoiding the possibility of accidental cable disconnection and a 3.3 ft (1m) USB-C & USB-A host cables is included that features a locking screw.

Wide Device Compatibility

The USB hub is OS independent ensuring support on a wide range of platforms including Windows, macOS, Linux, iPadOS, Chrome OS and Android.

HB31C3A1CME is backed by a StarTech.com 2-year warranty and free lifetime 24/5 multi-lingual North American based technical support. StarTech.com has been the IT professionals' choice for over 30 years.

  • Expands the connectivity of your computer for industrial applications

    With this USB-C hub you can connect three USB-A devices, and one USB-C device, to a single USB-C or USB-A port on your host device. The hub supports USB 3.2 Gen 2 (10 Gbps), and is backward compatible with USB 3.2 Gen 1 (5 Gbps) and USB 2.0 (480 Mbps).
  • Powers and charges your connected devices

    The USB hub is self powered using either the included 36W (12V/3A) AC to DC power adapter, or the built-in terminal block connector that supports a 7-24V DC input. The hub shares up to 30W of power between connected devices and each port supports BC 1.2 providing 12W (2.4A) of power on all ports up to a 30W draw.
  • Ideal for use in industrial environments

    This USB hub has a rugged-metal enclosure with built-in mounting ears that enable you to mount it to any wall or surface. The hub features 15kV Air and 8kV Contact electrostatic discharge protection, with 350W surge protection. Each port on the Hub has a screw lock, avoiding the possibility of accidental cable disconnection and a 3.3 ft (1m) USB-C & USB-A host cables is included that features a locking screw.
  • Wide device compatibility

    The USB hub is OS independent ensuring support on a wide range of platforms including Windows, macOS, Linux, iPadOS, Chrome OS and Android.

Specifications

Summary

Product Description
StarTech.com 4 Port USB C Hub 10Gbps - Metal Industrial USB 3.2/3.1 Gen 2 Type-C Hub - 3A/1C - USB-C or USB-A Host - Mountable - ESD/Surge (HB31C3A1CME) - hub - 4 ports
Device Type
Hub - 4 ports
Subtype
USB
Ports
1 x USB-C + 3 x USB 3.1
Features
Surge protection, Digital Communications Protocol (DCP), Cisco Discovery Protocol (CDP), ESD Protector
Compliant Standards
USB 1.1, USB 2.0, USB 3.0, USB 3.1 Gen 2, USB 3.2 Gen 2
Power
AC 110 - 230 V 1 A
Dimensions (WxDxH)
5.96 cm x 15.2 cm x 2.35 cm
Weight
280 g
Colour
Black
System Requirements
Apple MacOS, Linux, Microsoft Windows, Android, Google Chrome OS, Apple iPadOS
Localisation
Japan, New Zealand, North America, United Kingdom, Europe
Manufacturer Warranty
2-year warranty


Detailed Specification

General

Device Type
Hub - 4 ports
Enclosure Type
Desktop
Subtype
USB
Ports
1 x USB-C + 3 x USB 3.1
Features
Surge protection, Digital Communications Protocol (DCP), Cisco Discovery Protocol (CDP), ESD Protector
Compliant Standards
USB 1.1, USB 2.0, USB 3.0, USB 3.1 Gen 2, USB 3.2 Gen 2
Processor
X VIA Labs VL822

Expansion / Connectivity

Interfaces
1 x USB 3.1 Gen 2 Type C , 3 x USB 3.1 Gen 2 Type A

Power

Power Device
External power adapter
Power Provided
DC 12 V - 3 A
Voltage Required
AC 110 - 230 V
Electric Current Required
1 A
Power Consumption Operational
36 Watt

Miscellaneous

Colour
Black
Cables Included
1 x USB-C cable - 1 m , 1 x USB-C to USB-A cable - 1 m
Compliant Standards
FCC, RoHS, WEEE, RCM, UASP (USB Attached SCSI Protocol)
Localisation
Japan, New Zealand, North America, United Kingdom, Europe

Software / System Requirements

OS Required
Apple MacOS, Linux, Microsoft Windows, Android, Google Chrome OS, Apple iPadOS

Dimensions & Weight

Width
5.96 cm
Depth
15.2 cm
Height
2.35 cm
Weight
280 g

Dimensions & Weight (Shipping)

Shipping Width
14.9 cm
Shipping Depth
29 cm
Shipping Height
7 cm
Shipping Weight
1.2 kg

Manufacturer Warranty

Service & Support
Limited warranty - 2 years

Environmental Parameters

Min Operating Temperature
0 °C
Max Operating Temperature
70 °C
Humidity Range Operating
0 - 85%
Min Storage Temperature
-10 °C
Max Storage Temperature
55 °C
