Description

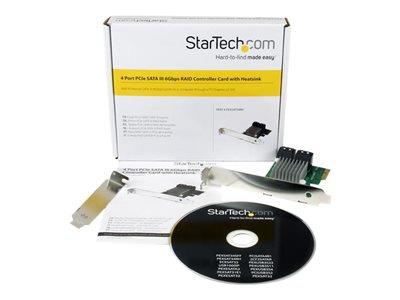

Add 4 Internal SATA III (6Gbps) ports to a computer through a PCI Express x2 slot. The PEXSAT34RH 4-Port PCI Express 2.0 SATA Controller Card with HyperDuo adds 4 AHCI SATA III ports to a computer through a PCIe slot (x2), delivering multiple internal 6Gbps connections for high-performance hard drives and Solid State Drives (SSDs).
Featuring HyperDuo technology, the SATA card offers SSD auto-tiering which lets you balance the performance advantages of SSD storage with the cost-effectiveness and large capacity of standard hard drives. By combining SSD and HDD drives into a single volume (up to 3 SSD + 1 HDD), HyperDuo discreetly works in the background to identify and move frequently accessed files to the faster SSD drive(s) for improved data throughput - up to 80% of SSD performance! (Note: The HyperDuo automatic storage tiering feature is compatible with computers that use a BIOS.)
The PCIe SATA controller card supports Port Multiplier (PM), enabling multiple SATA drives to be connected to one port over a single cable, for a total of 7 drives (Up to 4 drives through PM on one port, and a single drive to the remaining 3 ports). Plus, the SATA controller card offers an effective hardware RAID solution, with native RAID (0, 1, 1+0) support.
Specifications
Summary
- Product Description
- StarTech.com 4 Port PCI Express 2.0 SATA III 6Gbps RAID Controller Card with HyperDuo SSD Tiering - PCIe SATA 3 Controller Adapter (PEXSAT34RH) - storage controller (RAID) - SATA 6Gb/s - PCIe 2.0 x2
- Device Type
- Storage controller (RAID) - plug-in card - low profile
- Bus Type
- PCIe 2.0 x2
- Interface
- SATA 6Gb/s
- Data Transfer Rate
- 6 Gbit/s
- Supported Devices
- Disk array (RAID)
- Channel Qty
- 4
- RAID Level
- RAID 0, RAID 1, RAID 10, JBOD
- System Requirements
- Linux, Apple MacOS X 10.6, Microsoft Windows Vista (32/64 bits), Microsoft Windows 7 (32/64 bits), Microsoft Windows XP (32/64 bits), Apple MacOS X Lion 10.7, Apple OS X 10.8 Mountain Lion, Windows 8 (32/64 bits), Windows 10 (32/64 bits)
- Dimensions (WxDxH)
- 12 cm x 7 cm x 2 cm
- Weight
- 49 g
- Manufacturer Warranty
- 2-year warranty
- Designed For
- P/N: ST521PMINT
Detailed Specification
General
- Device Type
- Storage controller (RAID) - plug-in card - low profile
- Host Bus
- PCIe 2.0 x2
Storage Controller
- Interface
- SATA 6Gb/s
- Data Transfer Rate
- 6 Gbit/s
- Supported Devices
- Disk array (RAID)
- Channel Qty
- 4
- RAID Level
- RAID 0, RAID 1, RAID 10, JBOD
- Processor
- Marvell 88SE9230
Expansion / Connectivity
- Interfaces
- 4 x SATA 6Gb/s - SATA (internal)
Miscellaneous
- Included Accessories
- Low-profile bracket
- Compliant Standards
- FCC, RoHS
Software / System Requirements
- OS Required
- Linux, Apple MacOS X 10.6, Microsoft Windows Vista (32/64 bits), Microsoft Windows 7 (32/64 bits), Microsoft Windows XP (32/64 bits), Apple MacOS X Lion 10.7, Apple OS X 10.8 Mountain Lion, Windows 8 (32/64 bits), Windows 10 (32/64 bits)
Manufacturer Warranty
- Service & Support
- Limited warranty - 2 years
Dimensions & Weight
- Width
- 12 cm
- Depth
- 7 cm
- Height
- 2 cm
- Weight
- 49 g
Environmental Parameters
- Min Operating Temperature
- 5 °C
- Max Operating Temperature
- 50 °C
- Humidity Range Operating
- 20 - 80% (non-condensing)
Compatibility Information
- Designed For
- P/N: ST521PMINT
