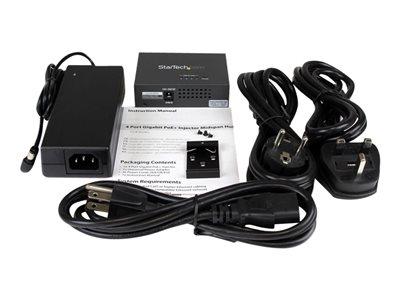

StarTech.com 4 Port Gigabit PoE+ Injector

StarTech.com 4 Port Gigabit PoE+ Injector

Review this product
Quicklinx: B90TWS00 Mfr#: POEINJ4G
Type: Power Injector
Stock Status: In Stock
19 in stock
£108.14 ex VAT
£129.76 inc VAT
Qty
Standard delivery Delivered within 3 working days

Description

Deliver power and data to four Power over Ethernet devices using this wall-mountable PoE+ midspan hub. This Gigabit midspan PoE+ injector is a cost-effective alternative to upgrading your existing network switch to a PoE-capable model.

It supplies up to 30 Watts output to each port, so you can easily power and access up to four high-power PoE-compliant devices - such as IP cameras - using standard Ethernet cable.

This versatile midspan PoE+ injector is suited for almost all PoE device classes, including wireless access points, as well as IP phones and cameras. The high-power PoE+ injector offers 120W total power distribution and delivers full power - up to 30.8W - from each port. Now, you can easily scale and power your PoE+ devices across long distances, even in remote locations where a typical power outlet is unavailable.

Plus, the cost-effective Power over Ethernet+ injector lets you connect your PoE-powered devices (PDs) to a non-PoE-capable switch, avoiding the expense and aggravation of upgrading your existing switch to a PoE-enabled model.

This injector is the perfect solution for a variety of environments. It features a wall-mountable rugged metal casing, but is palm-sized making it perfect for desktop placement too.

With plug-and-play operation, you can enjoy fast and hassle-free setup without disrupting your workflow.

Not sure which class your PoE devices are? The Gigabit midspan PoE+ injector automatically detects the power requirements of your PoE PDs, and delivers the appropriate level of power without damaging your devices.

With integrated circuit protection between each port, your devices are also protected from power interference.

Specifications

Summary

Product Description
StarTech.com 4-port Gigabit Midspan - PoE+ injector - 802.3at/af - PoE injector - 120 Watt
Device Type
PoE injector - external
Power Over Ethernet (PoE)
PoE+
Weight
220 g
Input Voltage
AC 100-240 V
Power Capacity
120 Watt
Dimensions (WxDxH)
9.7 cm x 7 cm x 2.6 cm
Manufacturer Warranty
2 years warranty


Detail

General

Device Type
PoE injector - external
Power Over Ethernet (PoE)
PoE+ (IEEE 802.3at)
Colour
Black

Power Device

Input Voltage
AC 100-240 V
Power Capacity
120 Watt

Expansion / Connectivity

Interfaces
4 x Gigabit LAN - RJ-45

Miscellaneous

Cables Included
3 x power cable
MTBF
50,000 hours
Features
Wall mountable, metal housing
Compliant Standards
IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at FCC, RoHS

Manufacturer Warranty

Service & Support
Limited warranty - 2 years

Environmental Parameters

Min Operating Temperature
0 °C
Max Operating Temperature
50 °C
Humidity Range Operating
5 - 90% (non-condensing)

Dimensions & Weight

Width
9.7 cm
Depth
7 cm
Height
2.6 cm
Weight
220 g
