Description
This open SFP PoE fiber media converter offers an easy, inexpensive way to extend the reach of your data and power devices at remote locations using your network over fiber, using the SFP of your choice. It combines the data connectivity of a media converter with the flexible power supply capabilities of a PoE injector. The converter provides a powerful networking solution for campuses, warehouses, factories or any applications that require PoE and connectivity over long distances.
-
Designed for small spaces and harsh environments
This mini media converter can be installed almost anywhere you need it and has been engineered to work in environments with large temperature changes. -
Open SFP slot to leverage your current infrastructure
The Gigabit fiber media converter provides a cost-efficient way to connect remote devices over a fiber link. -
Industrial IoT
Provides versatile connectivity to your existing networks and devices, allowing you to maximize the usage and performance of legacy equipment.
Specifications
Summary
- Product Description
- StarTech.com PoE+ Industrial Fiber to Ethernet Media Converter 30W, SFP to RJ45, Singlemode/Multimode Fiber Optic to Copper Gigabit Ethernet, Mini/Compact Size, IP-30/ -40 to +75C, 1Gbps - Mini Media Converter (IMC1GSFP30W) - fibre media converter - 10Mb LAN, 100Mb LAN, 1GbE
- Device Type
- Fibre media converter - RJ-45 / SFP (mini-GBIC)
- Form Factor
- DIN rail mountable
- Cabling Type
- 1000Base-SX, 1000Base-T
- Data Transfer Rate
- 1 Gbps
- Data Link Protocol
- 10Mb LAN, 100Mb LAN, 1GbE
- Max Transfer Distance
- 10 km
- Power Over Ethernet (PoE)
- PoE+
- Dimensions (WxDxH)
- 3.6 cm x 5.9 cm x 4.9 cm
- Weight
- 80 g
- Manufacturer Warranty
- 2-year warranty
Detailed Specification
General
- Device Type
- Fibre media converter
- Form Factor
- DIN rail mountable
- Colour
- Black
Networking
- Connectivity Technology
- Wired
- Cabling Type
- 1000Base-SX, 1000Base-T
- Data Link Protocol
- 10Mb LAN, 100Mb LAN, 1GbE
- Data Transfer Rate
- 1 Gbps
- Max Transfer Distance
- 10 km
- Status Indicators
- Port status, active, PoE, link
- Features
- Flow control, auto-uplink (auto MDI/MDI-X), full duplex mode, 512KB packet buffer, 2KV Surge protection, 16 KB Jumbo Frame
- Compliant Standards
- IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.3x
Expansion / Connectivity
- Interfaces
- 1 x Ethernet 1000Base-T - RJ-45 female - 30 W , 1 x Ethernet 1000Base-SX - SFP female
Miscellaneous

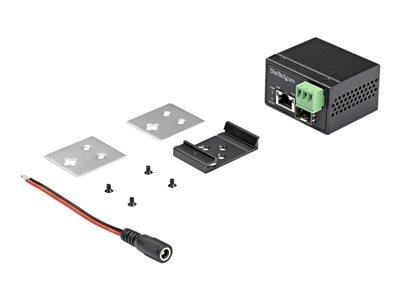

- Included Accessories
- Power terminal block
- Mounting Kit
- Included
- MTBF
- 561556 hours
- Compliant Standards
- IEC 61000-4-2, IEC 61000-4-4, IEC 61000-4-5, FCC, RoHS, EN 60950-1, WEEE, MSA, IP30, EN 60068-2-27, EN 60068-2-32, EN 60068-2-6, IEEE 802.3af, IEEE 802.3at
Power
- Power Over Ethernet (PoE)
- PoE+
- Power Device
- External power adapter
Dimensions & Weight
- Width
- 3.6 cm
- Depth
- 5.9 cm
- Height
- 4.9 cm
- Weight
- 80 g
Dimensions & Weight (Shipping)
- Shipping Width
- 15.5 cm
- Shipping Depth
- 10.5 cm
- Shipping Height
- 6.4 cm
- Shipping Weight
- 200 g
Manufacturer Warranty
- Service & Support
- Limited warranty - 2 years
Environmental Parameters
- Min Operating Temperature
- -40 °C
- Max Operating Temperature
- 75 °C
- Humidity Range Operating
- 5 - 95% (non-condensing)
