Description
This RS232 Serial Adapter Card lets you add two RS232 (DB9) serial ports to your computer through a PCI Express (PCIe) slot. It enables you to interact with serial devices, such as card readers, printers, PIN pads, and modems, at speeds of up to 921.4Kbps.

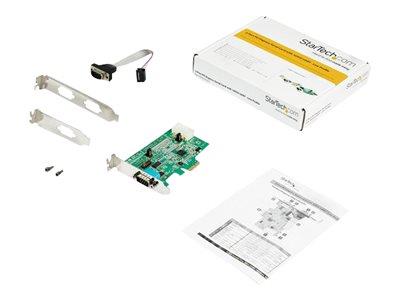

With broad OS support, including for Windows and Linux, this PCI Express card is easy to integrate into mixed environments. The card comes pre-configured with a low-profile bracket, and includes an optional full-profile bracket, so installation is easy regardless of the case form factor.
This PCIe to serial adapter supports the following features: Compatible with industry standard 16950 UART; Supports max baud rate of up-to 921.4Kbps; Provides 5/12V power output on Pin 9 when external power is connected; 128-byte depth FIFO per transmitter and receiver; Supports 9, 8, 7, 6, 5 data bits; Asix AX99100 chipset; PCI Express 1.1 compliant.
Specifications
Summary
- Product Description
- StarTech.com 2-port PCI Express RS232 Serial Adapter Card, PCIe RS232 Serial Host Controller Card, PCIe to Serial DB9 COM Ports, 16950 UART, Low Profile Expansion Card, Windows/macOS/Linux - Full/Low-Profile (PEX2S953LP) - serial adapter - PCIe - RS-232 x 2
- Device Type
- Serial adapter
- Form Factor
- Plug-in card - low profile
- Interface (Bus) Type
- PCI Express x1
- PCI Specification Revision
- PCIe 1.1
- Ports
- RS-232 x 2
- Dimensions (WxDxH)
- 6.7 cm x 9.8 cm x 1.8 cm
- Weight
- 55.6 g
- Data Link Protocol
- RS-232
- Data Transfer Rate
- 921.6 Kbps
- Processor
- ASIX AX99100
- System Requirements
- Microsoft Windows Server 2003, Microsoft Windows Server 2008 R2, Microsoft Windows Server 2012, Microsoft Windows Server 2012 R2, Microsoft Windows Server 2016, Linux 2.4 - 2.6.x
- Manufacturer Warranty
- Limited lifetime warranty
Detailed Specification
General
- Device Type
- Serial adapter
- Form Factor
- Plug-in card - low profile
- Interface (Bus) Type
- PCI Express x1
- PCI Specification Revision
- PCIe 1.1
Networking
- Ports
- RS-232 x 2
- Connectivity Technology
- Wired
- Data Link Protocol
- RS-232
- Data Transfer Rate
- 921.6 Kbps
- Features
- Full duplex mode, 256-byte FIFO
Processor / Memory
- Processor
- ASIX AX99100
Expansion / Connectivity
- Interfaces
- 2 x RS-232 - 9 pin D-Sub (DB-9)
Miscellaneous
- Included Accessories
- Full-height bracket
- Compliant Standards
- WHQL, FCC, RoHS, WEEE
Software / System Requirements
- OS Required
- Microsoft Windows Server 2003, Microsoft Windows Server 2008 R2, Microsoft Windows Server 2012, Microsoft Windows Server 2012 R2, Microsoft Windows Server 2016, Linux 2.4 - 2.6.x
Dimensions & Weight
- Width
- 6.7 cm
- Depth
- 9.8 cm
- Height
- 1.8 cm
- Weight
- 55.6 g
Dimensions & Weight (Shipping)
- Shipping Weight
- 146.4 g
Manufacturer Warranty
- Service & Support
- Limited warranty - lifetime
Environmental Parameters
- Min Operating Temperature
- -10 °C
- Max Operating Temperature
- 80 °C
- Humidity Range Operating
- 5 - 85%
