Description

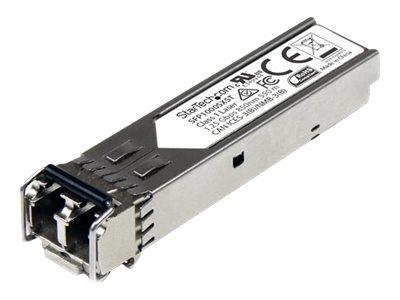

Add reliable and cost-effective Gigabit Ethernet connections over multimode fiber, with this SFP module. This 1000Base-SX SFP module delivers what you need most in your network connections: reliable performance. It's built to exacting MSA specifications and fully tested to ensure seamless compatibility. The multimode SFP transceiver module offers a cost-effective way to add, replace or upgrade the ports on your networking equipment.
With data transfer rates of up to 1Gbps and support for Digital Diagnostics Monitoring (DDM / DOM), this LC SFP module can be installed into fiber networking equipment with an MSA compliant port. It delivers dependable Gigabit connectivity over multimode fiber for 1000Base-SX compliant networks, with a maximum distance of up to 550 m (1804 ft.) and 850 nm optical wavelength.
This optical transceiver is engineered to meet or exceed the industry's MSA (Multi-Source Agreement) standards. StarTech.com brings its established reputation for high-quality connectivity solutions to SFP transceivers, providing SFPs that match major OEM brands in performance and reliability. Committed to the highest standards, StarTech.com provides an extensive range of networking products including copper and fiber network cards, fiber media converters, Ethernet switches and wireless products.
Delivering both convenience and scalability, this fiber transceiver is fully hot-pluggable, which enables you to install it without interrupting network traffic or having to reboot your equipment. It provides a versatile solution that's compatible with a wide range of networking equipment, allowing you to expand your network to remote segments cost-effectively.
-
Reliable connectivity
The Ethernet 1000Base-SX type provides robust wired connectivity, ensuring dependable connections for networking needs. -
Effective temperature range
With a maximum operating temperature of 70°C, this module performs well under various environmental conditions, making it suitable for diverse applications. -
Extended transfer distance
Achieving effective transmission over distances up to 550 meters allows for versatile deployment in larger networking setups. -
Compliance with standards
Meets several industry standards, including FCC and IEEE 802.3z, validating its reliability and safety for various networking configurations. -
Monitoring features
Supports Digital Optical Monitoring (DOM) and Digital Diagnostics Monitoring (DDM), providing real-time status and ensuring network integrity.
Specifications
Summary
- Product Description
- StarTech.com MSA Uncoded Compatible SFP Module, 1000BASE-SX, 1GbE Multi Mode (MMF) Fiber Optic Transceiver, 1GE Gigabit Ethernet SFP, LC Connector, 550m, 850nm, DDM, 1Gbps Mini GBIC Module - Lifetime Warranty (SFP1000SXST) - SFP (mini-GBIC) transceiver module - 1GbE
- Device Type
- SFP (mini-GBIC) transceiver module - LC multi-mode
- Form Factor
- Plug-in module
- Cabling Type
- 1000Base-SX
- Data Transfer Rate
- 1.25 Gbps
- Optical Wave Length
- 850 nm
- Data Link Protocol
- 1GbE
- Max Transfer Distance
- 550 m
- Dimensions (WxDxH)
- 1.39 cm x 5.84 cm x 1.26 cm
- Weight
- 30 g
- Manufacturer Warranty
- Limited lifetime warranty
- Designed For
- P/N: US1GA30SFP, US1GC30SFP
Detailed Specification
General
- Device Type
- SFP (mini-GBIC) transceiver module
- Form Factor
- Plug-in module
- Colour
- Silver
Networking
- Connectivity Technology
- Wired
- Cabling Type
- 1000Base-SX
- Data Link Protocol
- 1GbE
- Data Transfer Rate
- 1.25 Gbps
- Optical Wave Length
- 850 nm
- Max Transfer Distance
- 550 m
- Features
- Full duplex mode, Digital Optical Monitoring (DOM) support, Digital Diagnostics Monitoring (DDM)
- Compliant Standards
- IEEE 802.3z
Expansion / Connectivity
- Interfaces
- 1 x Ethernet 1000Base-SX - LC multi-mode x 2
Miscellaneous
- Compliant Standards
- FCC, RoHS, WEEE, MSA, RCM
Dimensions & Weight
- Width
- 1.39 cm
- Depth
- 5.84 cm
- Height
- 1.26 cm
- Weight
- 30 g
Manufacturer Warranty
- Service & Support
- Limited warranty - lifetime
Environmental Parameters
- Min Operating Temperature
- 0 °C
- Max Operating Temperature
- 70 °C
- Humidity Range Operating
- 5 - 95%
Compatibility Information
- Designed For
- P/N: US1GA30SFP, US1GC30SFP
